DG834G Reference Manual

C-20 NETGEAR VPN Configuration

v3.0, September 2005

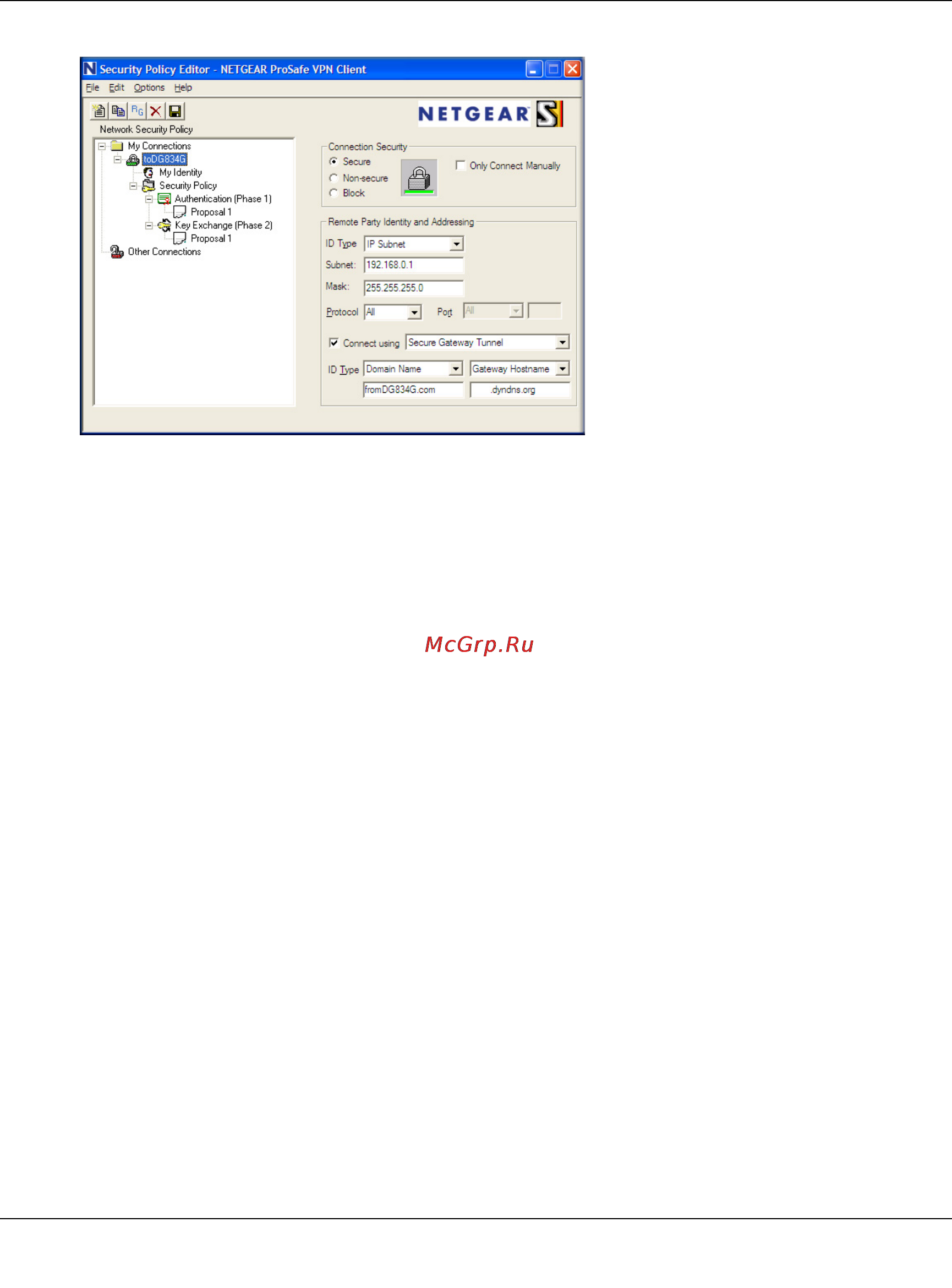

Figure C-16: Security Policy Editor Connection settings

Select Secure in the Connection Security check box.

d. Select IP Subnet in the ID Type menu.

e. In this example, type 192.168.0.1 in the Subnet field as the network address of the

DG834G.

f. Enter 255.255.255.0 in the Mask field as the LAN Subnet Mask of the DG834G.

g. Select All in the Protocol menu to allow all traffic through the VPN tunnel.

h. Select the Connect using Secure Gateway Tunnel check box.

i. Select Domain Name in the ID Type menu below the check box and enter

fromDG834G.com (in this example).

j. Select Gateway Hostname and enter ntgr.dyndns.org (in this example).

k. The resulting Connection Settings are shown in Figure C-16.

3. Configure the Security Policy in the 54 Mbps Wireless ADSL Modem Router Model

DG834G software.

a. In the Network Security Policy list, expand the new connection by double clicking its

name or clicking on the “+” symbol. My Identity and Security Policy subheadings

appear below the connection name.

b. Click on the Security Policy subheading to show the Security Policy menu.

ntgr
