DG834G Reference Manual
NETGEAR VPN Configuration C-21
v3.0, September 2005

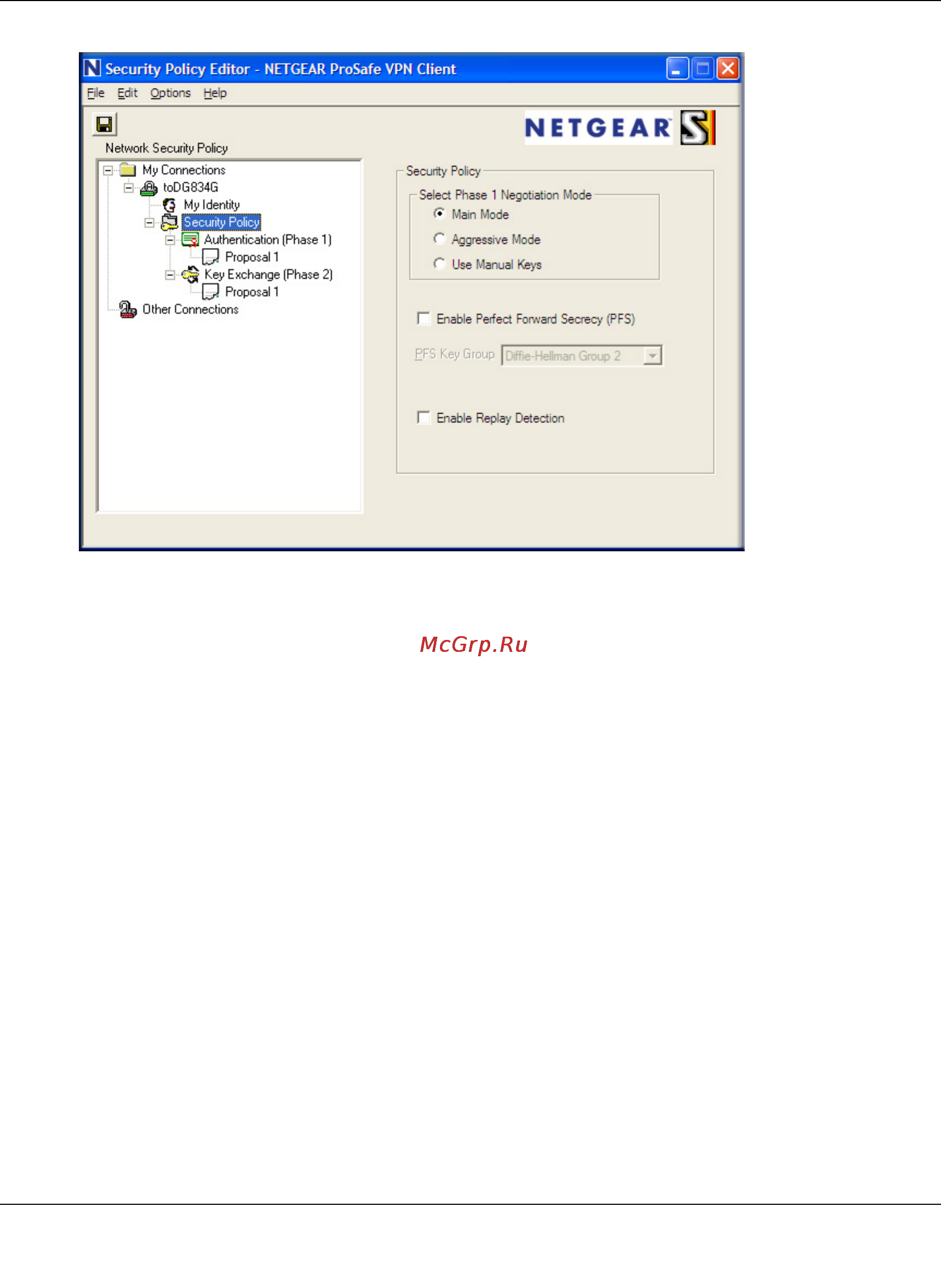

Figure C-17: Security Policy Editor security policy
c.
Select the Main Mode in the Select Phase 1 Negotiation Mode check box.
4. Configure the VPN Client Identity.
In this step, you will provide information about the remote VPN client PC. You will need to
provide:
— The Pre-Shared Key that you configured in the DG834G.
— Either a fixed IP address or a “fixed virtual” IP address of the VPN client PC.
a. In the Network Security Policy list on the left side of the Security Policy Editor
window, click My Identity.
