Link Aggregation

Path: Network > LAN > Link Aggregation

Link aggregation is used to combine a number of ports together to make a single high-bandwidth data pipeline.

The controller treats all ports in a trunk group as a single port.

Link Aggregation Control Protocol (LACP) is used to negotiate a dynamic aggregated link between the controller

and another network device that supports 802.3ad. For this to work, the controllers must comply with LACP to

allow negotiation of the aggregated link.

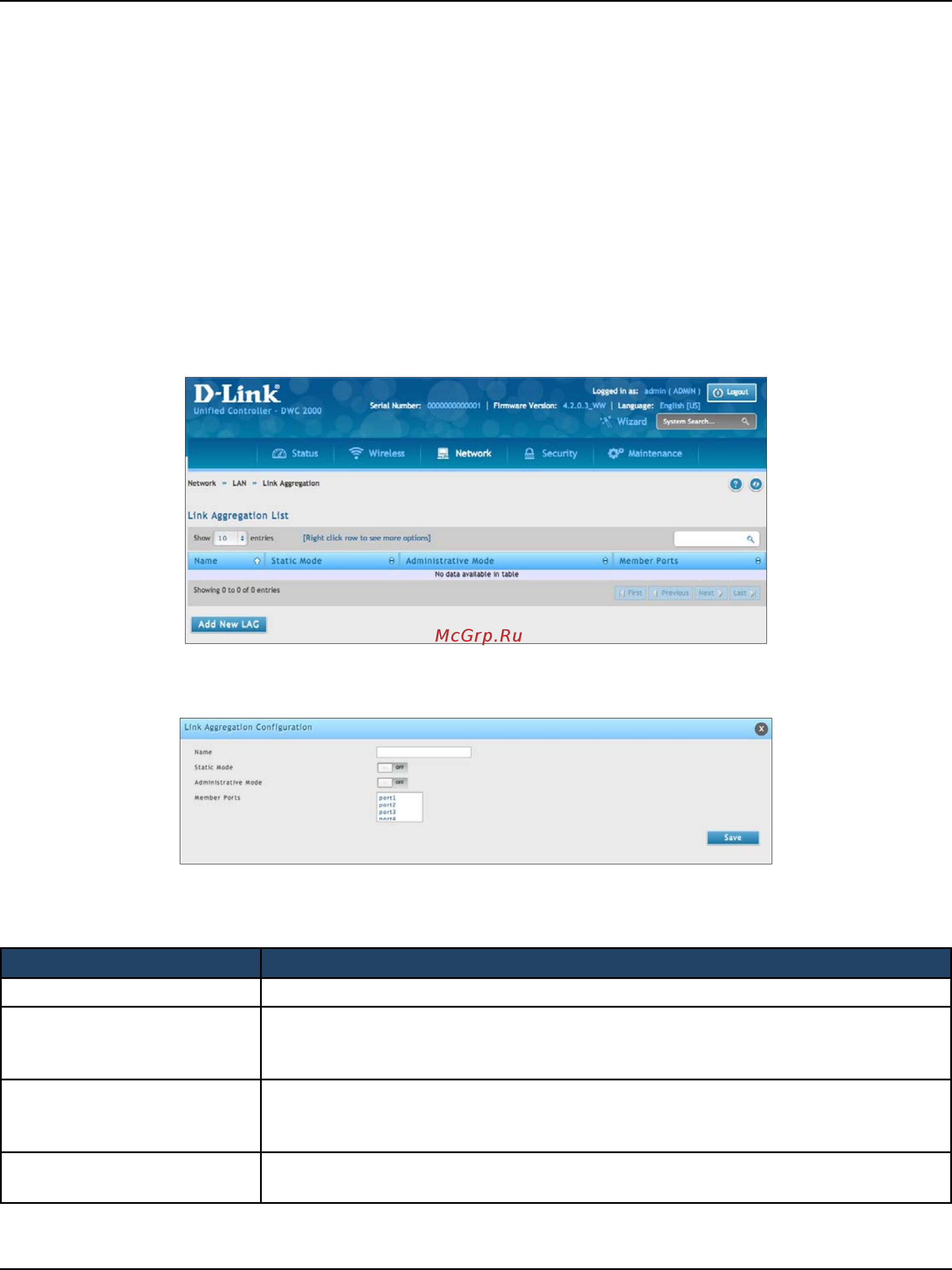

2. Click Add New LAC. The following window will appear.

Field Description

Name Enter a name for this conguration.

Static Mode

Activates or deactivates the Static Mode. Choices are:

• ON = Use static mode.

• OFF = Use dynamic mode (LACP).

Administrative Mode

Enables or disables this conguration.

• ON = Enabled

• OFF = Disabled

Member Ports

Select the ports to add to the conguration (ports 1-4). Hold CTRL and click for multiple

ports.

3. Complete the elds in the table below and click Save.

1. Click Network > LAN > Link Aggregation.

* Maximum four interfaces aggregate into one logical interface.
