D-Link DWC-2000 [224/282] Associated clients
![D-Link DWC-2000 [224/282] Associated clients](/views2/1203427/page224/bge0.png)

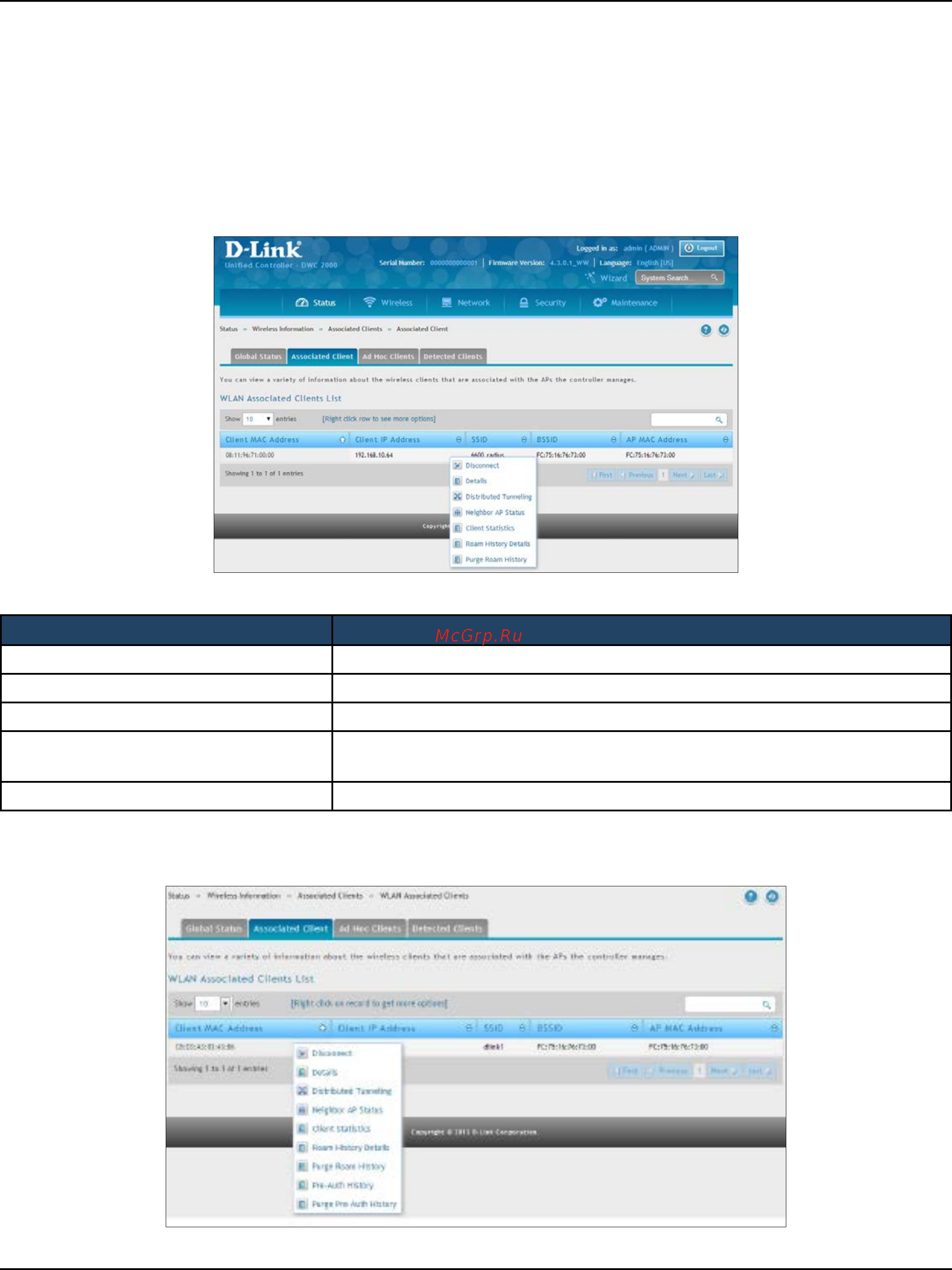

D-Link DWC-2000 User Manual 224
Section 7 - Viewing Status and Statistics
Path: Status > Wireless Information > Associated Clients > Associated Clients
The WLAN Associated Clients page tracks the trac associated with the client connected to the wireless controller.
Right-clicking on a client and clicking the View Details button displays detailed information about the selected
client.
Field Description
Client MAC Address Ethernet MAC address of the client station.
Client IP Address The IP address of the client station.
SSID Name of the wireless network on which the client is connected.
BSSID
MAC address for the managed access point/virtual access point where this
client is associated.
AP MAC Address Ethernet MAC address of the access point.
Associated Clients
