D-Link DWC-2000 User Manual 202
Section 7 - Viewing Status and Statistics

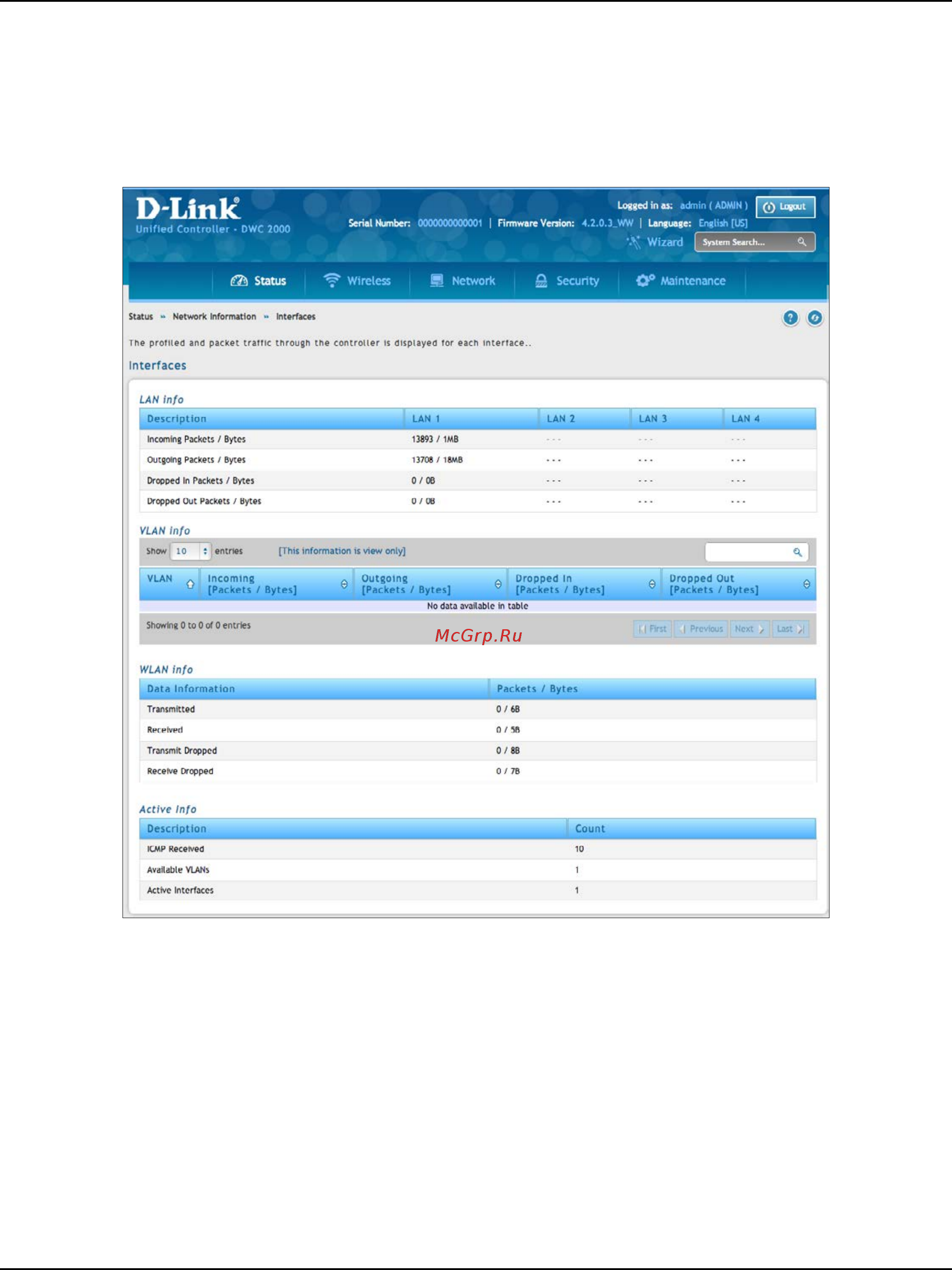

Viewing Trac on Interfaces
Path: Status > Network Information > Interfaces
This page shows the incoming/outgoing packets on each interface. Table elds are shown on the next page.
