D-Link DWC-2000 [243/282] Using snmp

D-Link DWC-2000 User Manual 243

Section 8 - Maintenance

Using SNMP

Path: Maintenance > Management > SNMP

SNMP is an additional management tool that is useful when multiple routers in a network are being managed

by a central Master system. When an external SNMP manager is provided with this controller’s Management

Information Base (MIB) le, the manager can update the controller’s hierarchal variables to view or update

conguration parameters. The controller as a managed device has an SNMP agent that allows the MIB conguration

variables to be accessed by the Master (the SNMP manager). The Access Control List on the controller identies

managers in the network that have read-only or read-write SNMP credentials. The Traps List outlines the port

over which notications from this controller are provided to the SNMP community (managers) and also the

SNMP version (v1, v2c, v3) for the trap.

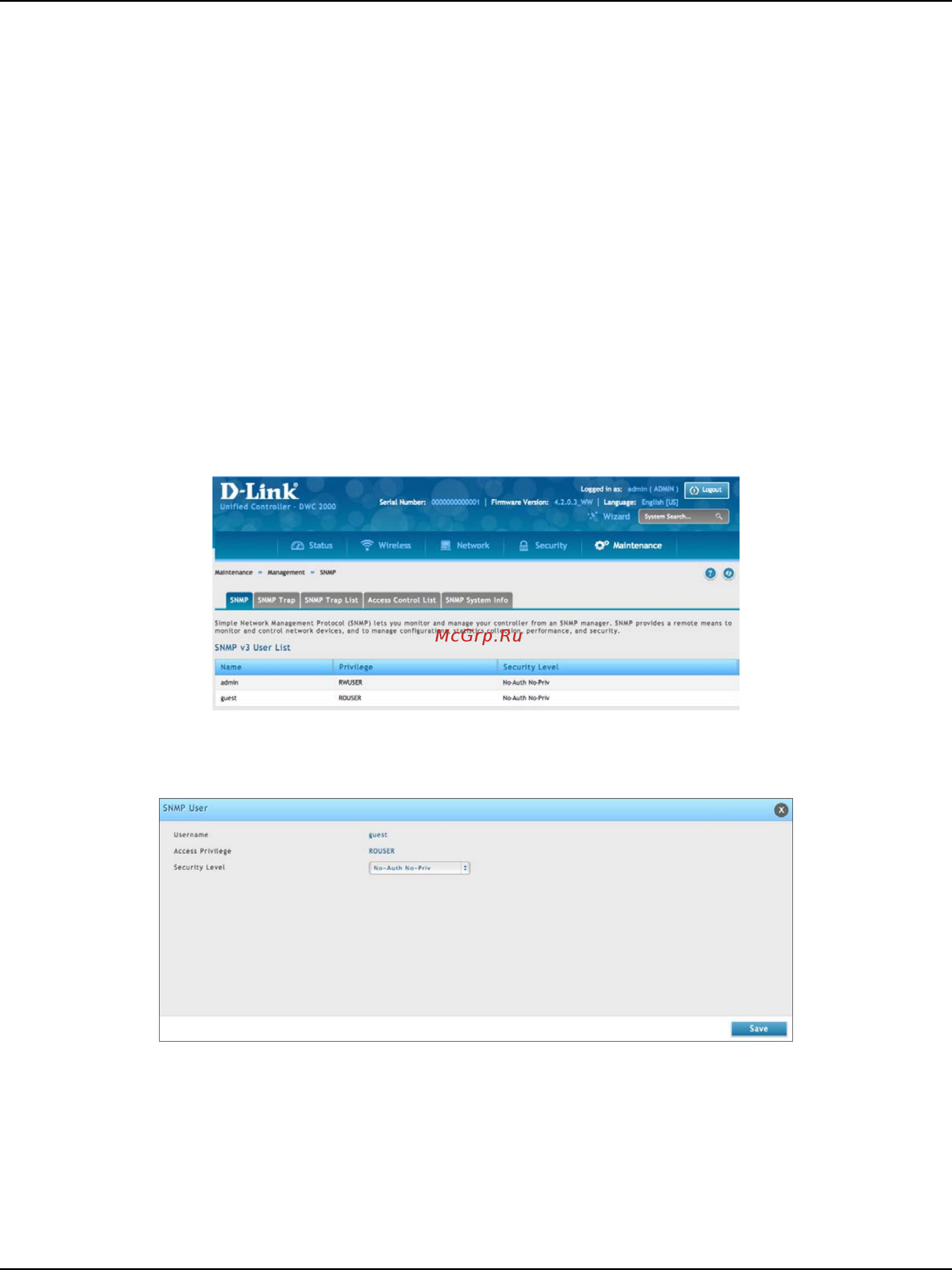

Congure SNMP v3 User List

Go to Maintenance > Management > SNMP > SNMP tab.

1. Right-click either admin or guest and select Edit.
