D-Link DWC-2000 User Manual 151

Section 5 - Advanced Network Conguration

Conguring 802.1p Priority

Path: Network > QoS > QoS Priority > 802.1P Priority

If you selected CoS for your QoS conguration, use the following procedure to congure and assign priority to

the CoS elds in the IP packets.

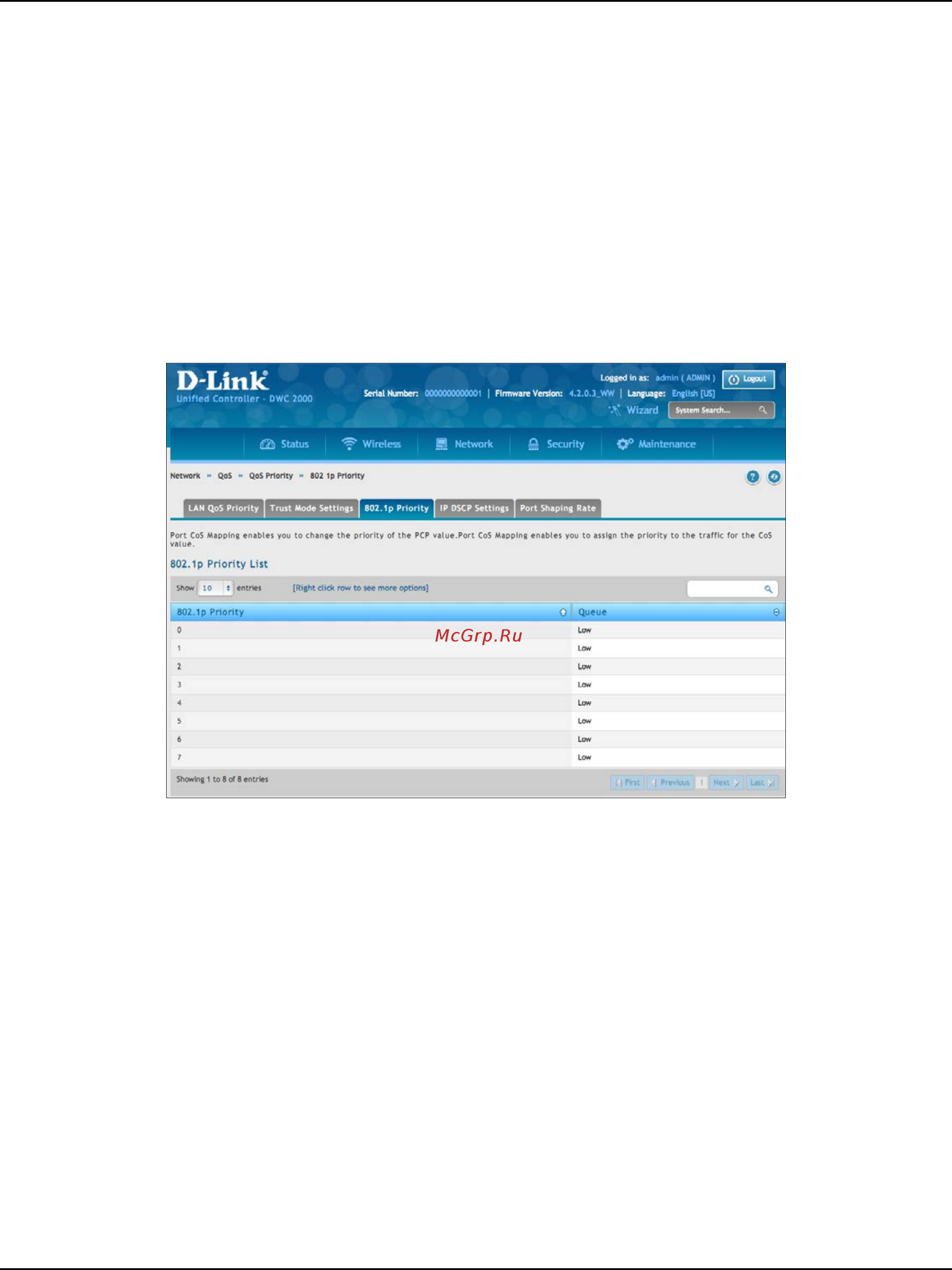

1. Go to Network > QoS > QoS Priority. On the middle menu on the QoS Priority page, click the 802.1P

Priority tab. In the 802.1p Priority List, each row corresponds to a CoS eld in an IP packet. Select a

CoS eld by right-clicking on it and clicking Edit. This brings up a popup box called 802.1P Priority

Conguration.

2. On the Queue drop-down list, select one of the following priorities:

– Highest

– Medium

– Low

– Lowest

3. Repeat step 2 for each additional CoS eld you want to prioritize.

4. When you nish, click Save.
