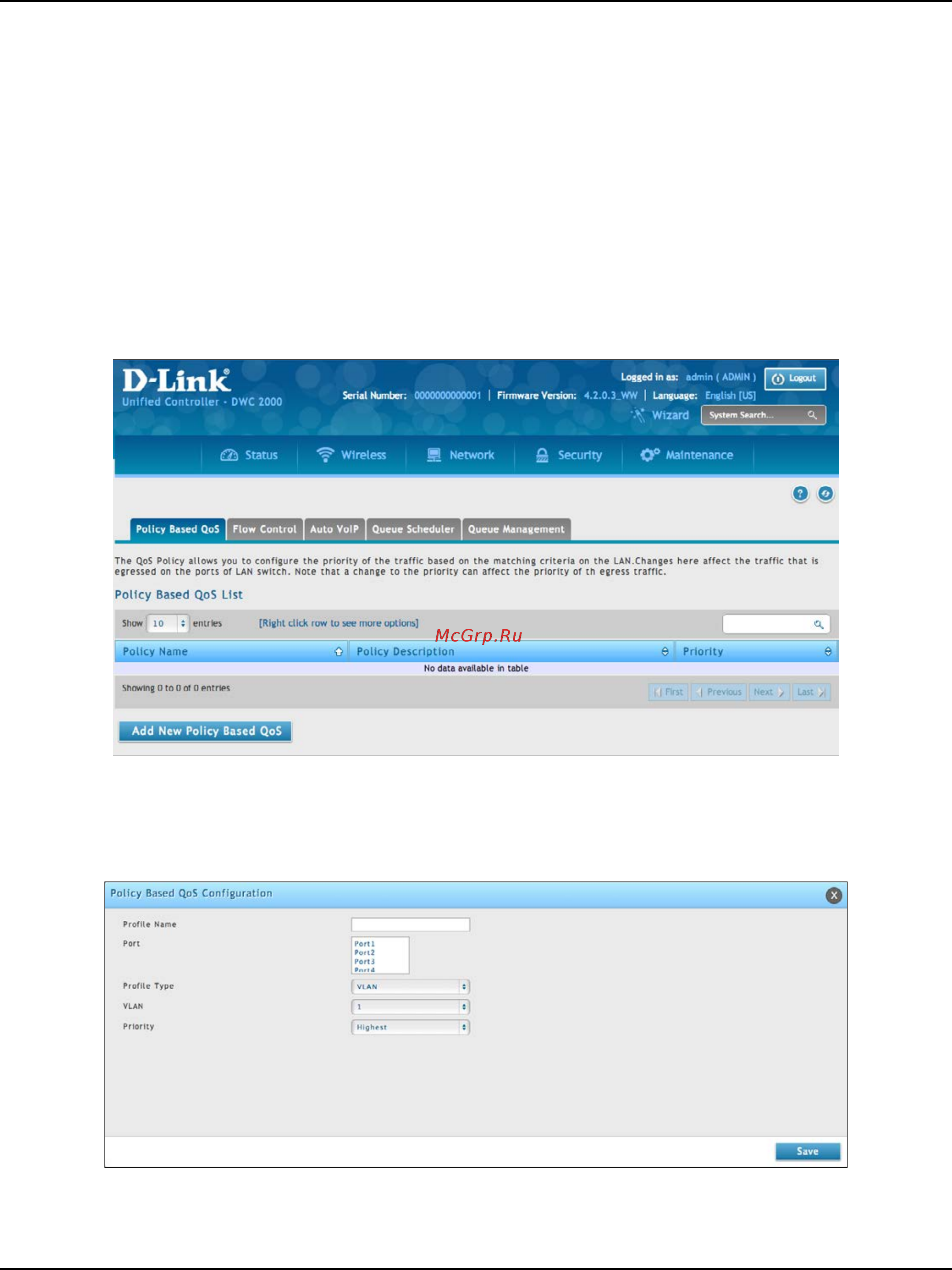

D-Link DWC-2000 User Manual 154
Section 5 - Advanced Network Conguration
QoS Policy
The QoS Policy allows you to congure the priority of the trac based on the matching criteria on the LAN.
Changes here aect the trac that is egressed on the ports. Note that a change to the priority can aect the
priority of the egress trac.
Congure Policy Based QoS
Path: Network > QoS > Policy Based QoS
1. Go to Network > QoS > QoS Policy > Policy Based QoS tab.
2. Click Add New Policy Based QoS.
3. Complete the elds in the table on the next page and click Save.
