D-Link DWC-2000 User Manual 160
Section 5 - Advanced Network Conguration

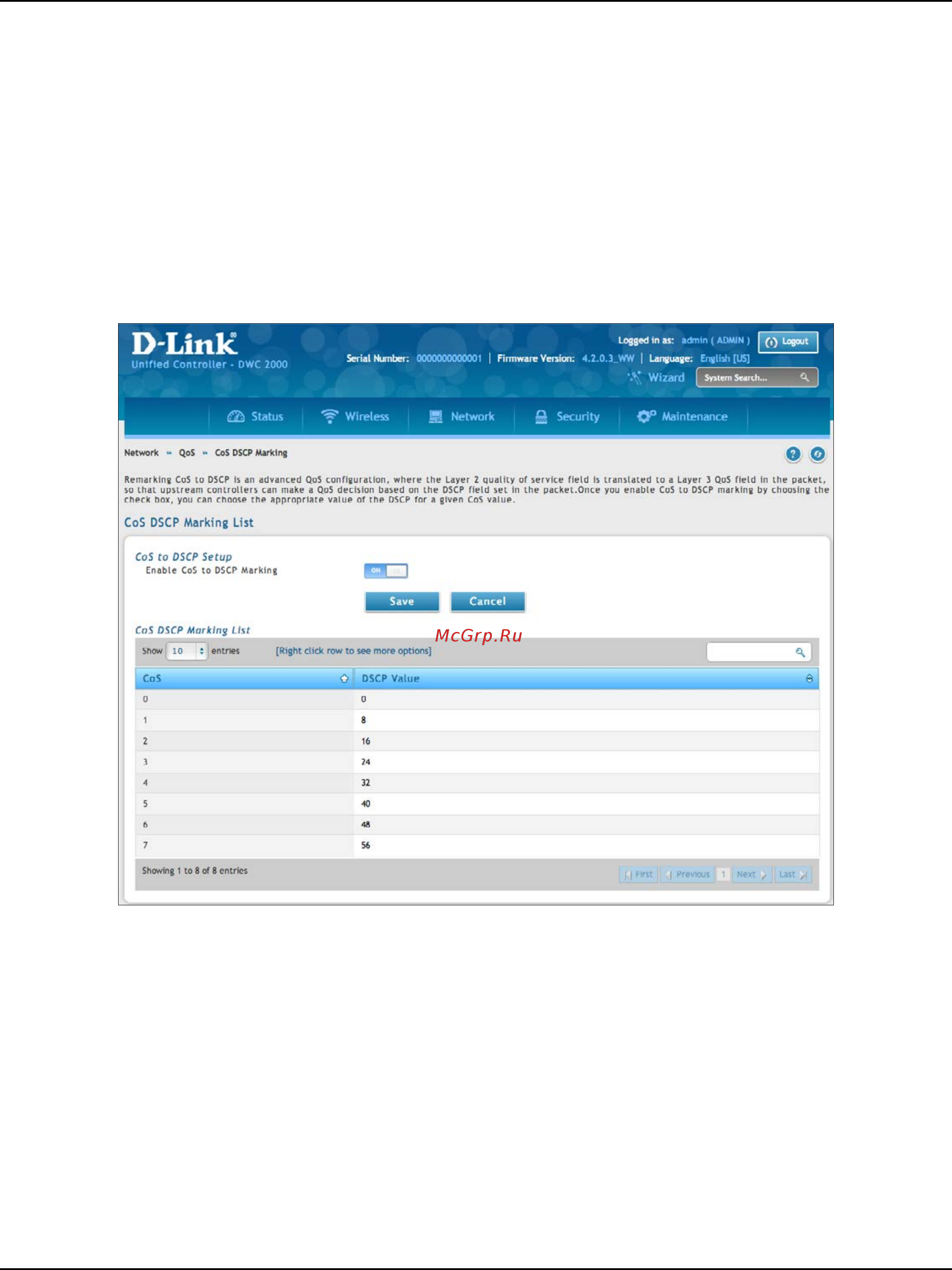

Setup CoS and DSCP Marking
Path: Network > QoS > CoS DSCP Marking
Remarking CoS to DSCP is an advanced QoS conguration, where the Layer 2 quality of service eld is translated
to a Layer 3 QoS eld in the packet, so that upstream routers can make a QoS decision based on the DSCP
eld set in the packet. Once you enable CoS to DSCP marking by choosing the check box, you can choose the
appropriate value of the DSCP for a given CoS value.
1. Go to Network > QoS > CoS DSCP Marking.
2. Enable CoS and DSCP Marking and click Save.
3. Right-click on the CoS and select Edit. Change the mapping value between CoS and DSCP.
4. Click Save.
