D-Link DWC-2000 [15/282] Front panel

D-Link DWC-2000 User Manual 15

Section 1 - Product Overview

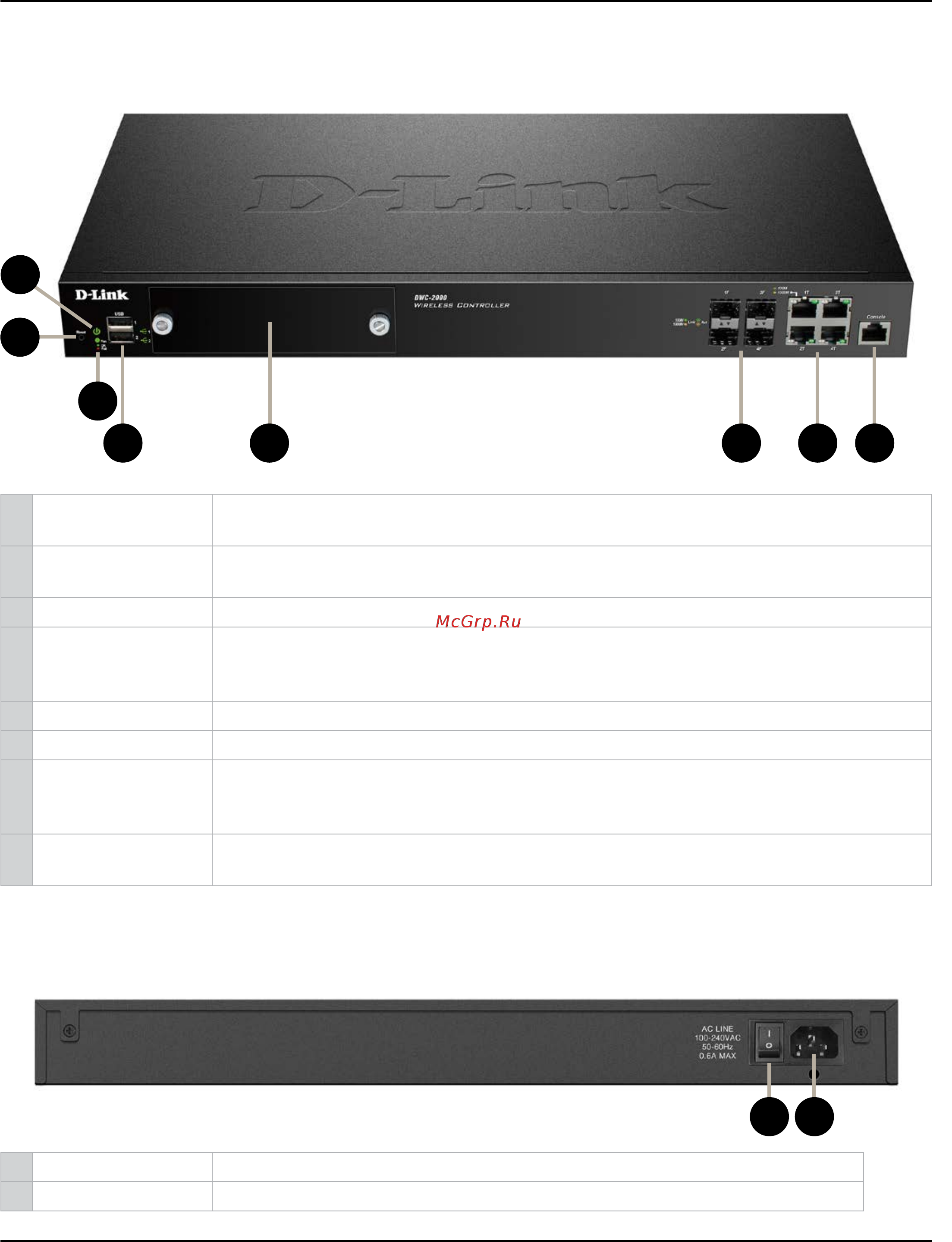

Front Panel

1 Power LED

A solid green light indicates a good connect to a power source. This LED will be

orange during bootup.

2 Reset Button

Press and hold for 10 seconds to reset the wireless controller back to the factory

default settings.

3 Fan LED Indicates the fan status on the wireless controller.

4 USB Ports

Two Universal Serial Bus (USB) 2.0 ports are provided for connecting USB ash drives,

hard drives, and printers. A solid LED indicates the USB device is attached. This LED will

blink during data transmission.

5 Module Bay Slot for the hard disk drive module.

6 Fiber Ports (1-4) Four 100/1000 SFP combo ports labeled 1 through 4

7 LAN Ports (1-4)

Four Gigabit Ethernet ports labeled 1 through 4 let you connect Ethernet devices such

as computers, switches, and network storage (NAS) devices. Each port has an Activity

LED (left) and Link LED (right).

8 Console Port

The RJ-45 console cable lets you connect a PC to access the wireless controller’s

command-line interface.

6 7 8

4 5

Rear Panel

1 On/O Switch Press to turn the wireless controller on and o.

2 Power Port Connect the supplied power cord to a power outlet or surge protector.
