D-Link DWC-2000 User Manual 157
Section 5 - Advanced Network Conguration

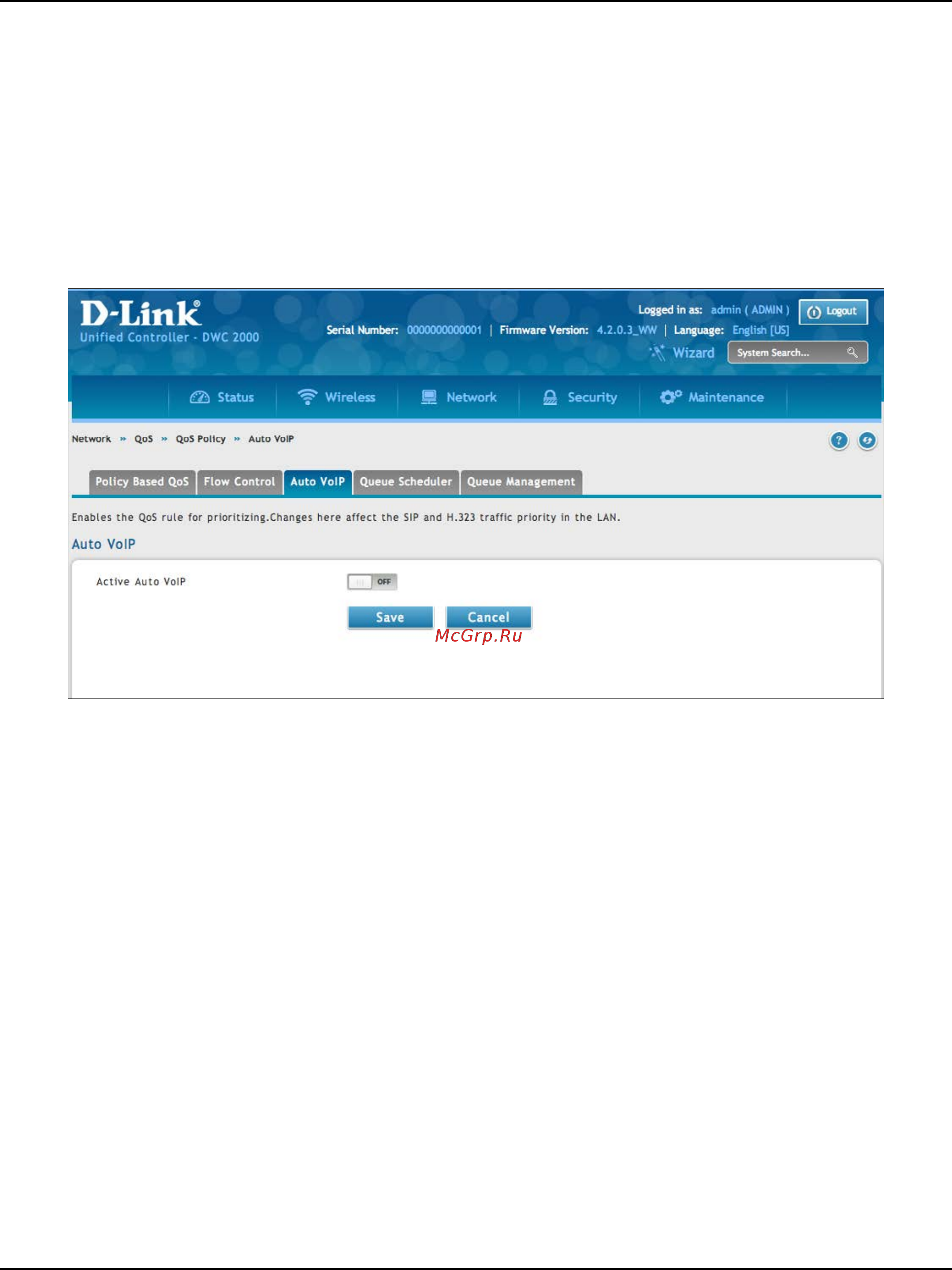

Congure Auto VoIP QoS
Path: Network > QoS > QoS Policy > Auto VoIP
Enables the QoS rule for prioritizing. Changes here aect the SIP and H.323 trac priority in the LAN.
1. Go to Network > QoS > QoS Policy. > Auto VoIP tab.
2. Enable Active Auto VoIP and click Save.
