D-Link DWC-2000 User Manual 141
Section 5 - Advanced Network Conguration
GVRP

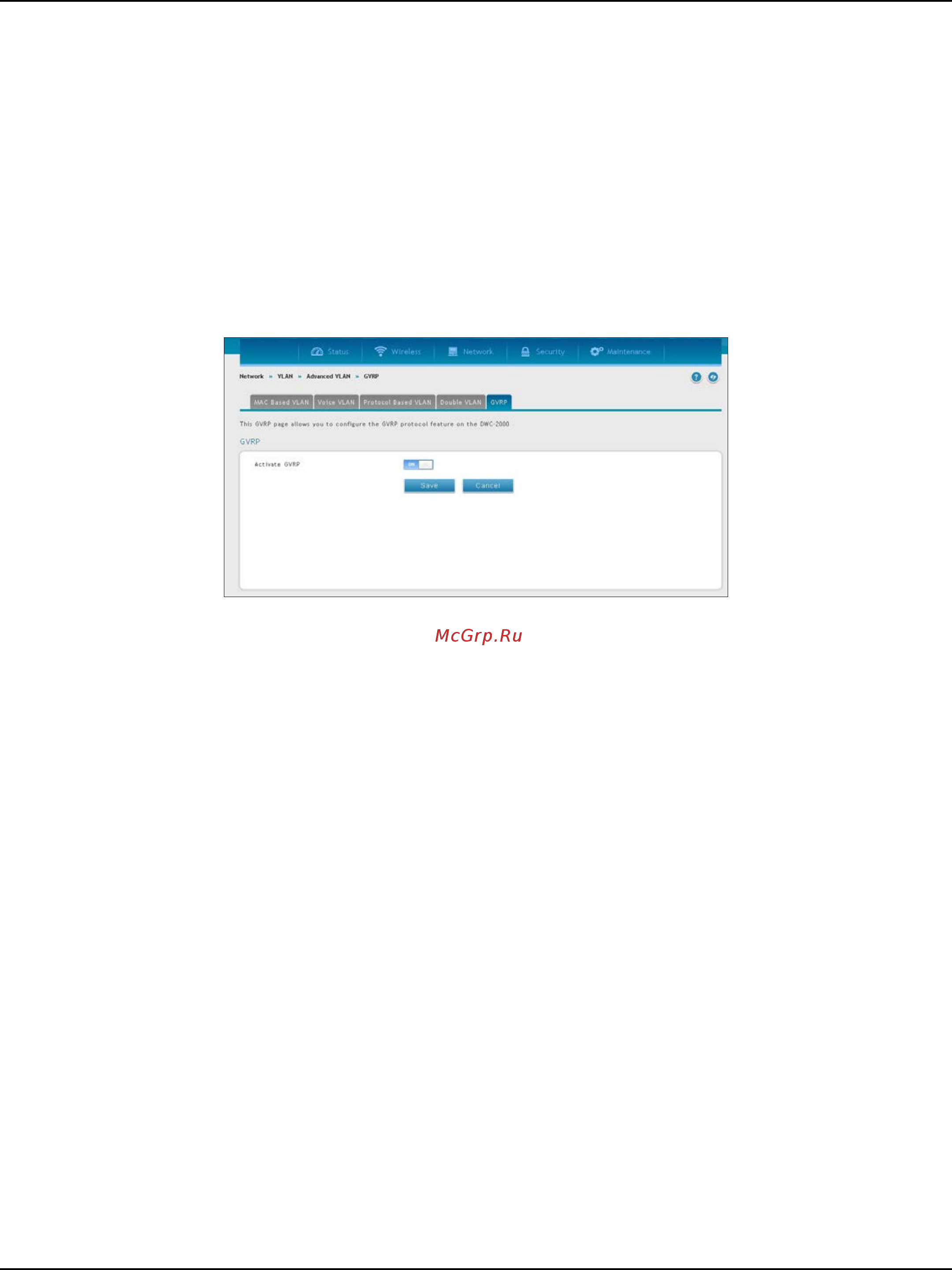

Path: Network > VLAN > Advanced VLAN > GVRP
The GARP VLAN Registration Protocol (GVRP) provides a mechanism that allows network controllers to
dynamically register (and de-register) VLAN membership information with the networking devices attached the
same segment, and for that information to be disseminated across all networking controllers in the bridged LAN
that support GMRP.
1. Go to Network > VLAN > Advanced VLAN > GVRP tab.
2. Toggle Activate GVRP to ON and click Save.
