D-Link Unified Access System Software User Manual

02/15/2011

Page 112 Document 34CS3000-SWUM104-D10

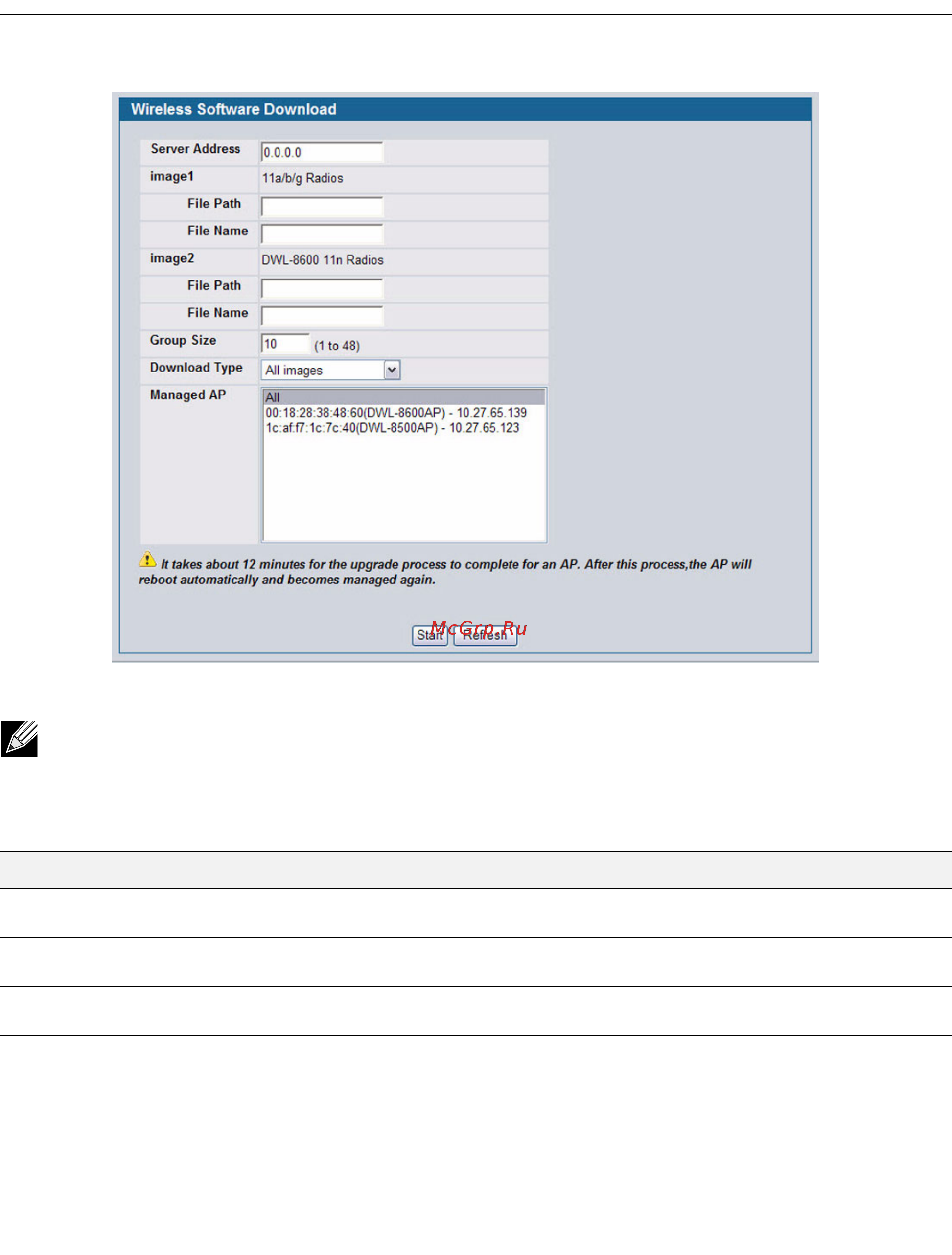

Figure 54: AP Upgrade

Table 22 describes the fields you must complete to upgrade D-Link Access Points.

Note: The APs automatically reset after the code is successfully downloaded.

Table 22: AP Upgrade

Field Description

Server Address Enter the IP address of the host where the upgrade file is located. The host must have a TFTP

server installed and running.

File Path For image1 (11a/b/g/ radios) or image2 (DWL-8600 11n radios), enter the path to the directory

where the upgrade file is located. You may enter up to 96 characters.

File Name For image1 (11a/b/g/ radios) or image2 (DWL-8600 11n radios), Enter the name of the

upgrade file. You may enter up to 32 characters, and the file extension “.tar” must be included.

Group Size When you upgrade multiple APs, each AP contacts the TFTP server to download the upgrade

file. To prevent the TFTP server from being overloaded, you can limit the number of APs to

be upgraded at a time.

In the Group Size field, enter the number of APs that can be upgraded at the same time. When

one group completes the upgrade, the next group begins the process.

Download Type Select the download type. Possible options are:

• All images

• image1 (802.11a/b/g) Image supported for non-11n APs (DWL-x500APs).

• image2 (802.11n) Image supported for 11n APs (DWL-8600AP).
