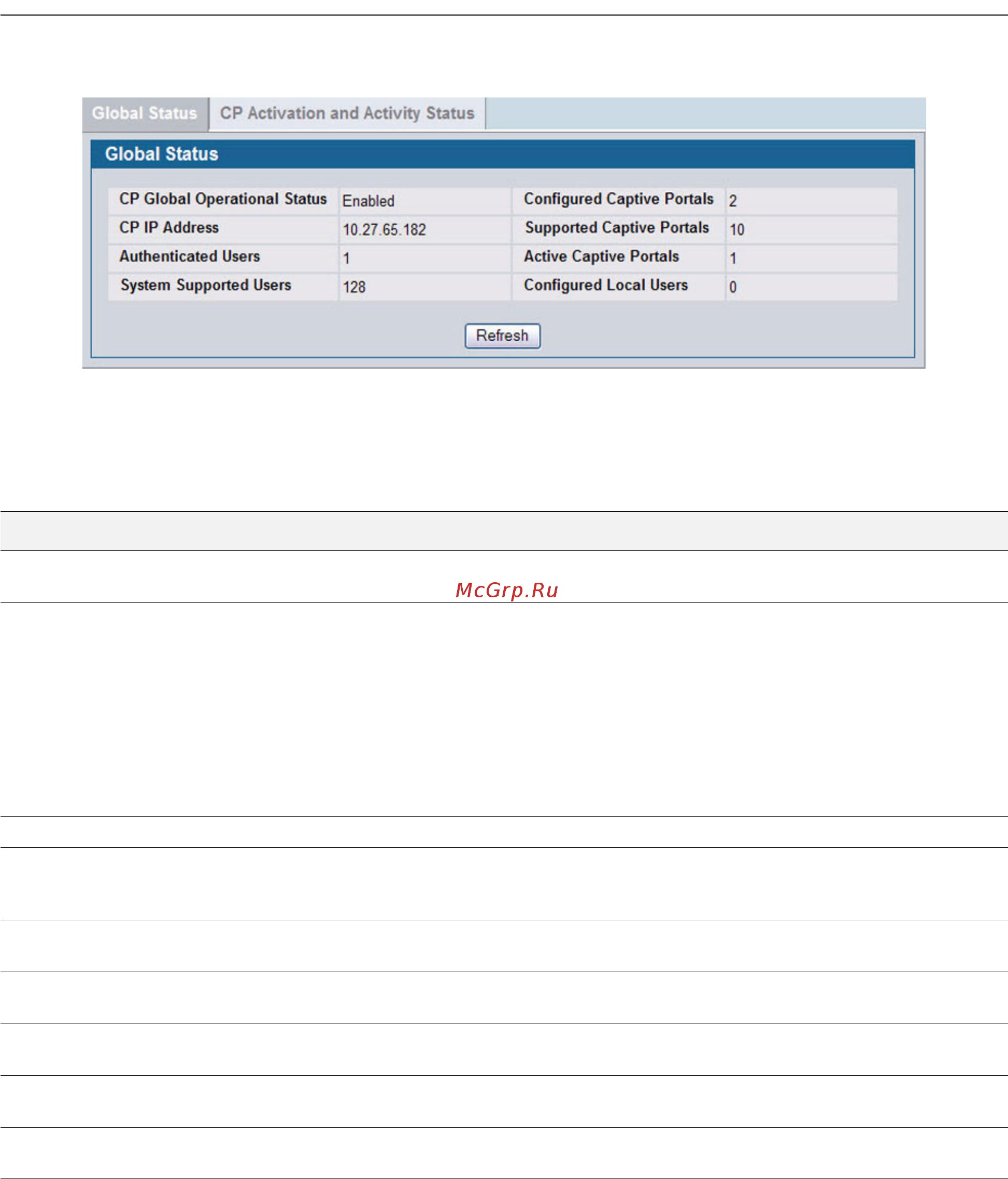

Figure 89: Global Captive Portal Status

Table 73 describes the fields displayed on the CP Global Status page.

Click Refresh to update the screen with the most current information.

Viewing CP Activation and Activity Status

The CP Activation and Activity Status page provides information about each CP configured on the switch.

Table 73: Global Captive Portal Status

Field Description

CP Global Operational

Status

Shows whether the CP feature is enabled. The default is disabled.

CP Global Disable

Reason

If CP is disabled, this field indicates the reason for the CP to be disabled, which can be one

of the following:

• None – CP is enabled

• Administrator Disabled

• No IPv4 Address

• Routing Enabled, but no IPv4 routing interface

The default is Administrator Disabled.

This field does not appear if the CP operational status is Enabled.

CP IP Address Shows the captive portal IP address.

Authenticated Users Shows the number of users currently authenticated to all captive portal instances on this

switch. For the WIDS Controller, the number includes users authenticated on all switches in

the peer group. The range is an integer. The default is 0.

System Supported

Users

Shows the number of authenticated users that the system can support. This is a platform-

defined constant. The range is an integer. The default is 128.

Configured Captive

Portals

Shows the number of captive portal instances that have been administratively configured. The

range is an integer. The default is 0.

Supported Captive

Portals

Shows the number of supported captive portals in the system. This is a platform-defined

constant. The range is an integer. The default is 10.

Active Captive Portals Shows the number of captive portal instances that are operationally enabled. The range is an

integer. The default is 0.

Configured Local Users The number of users currently configured in the local database. The default is 0. See

“Configuring Users in the Local Database” on page 178.
