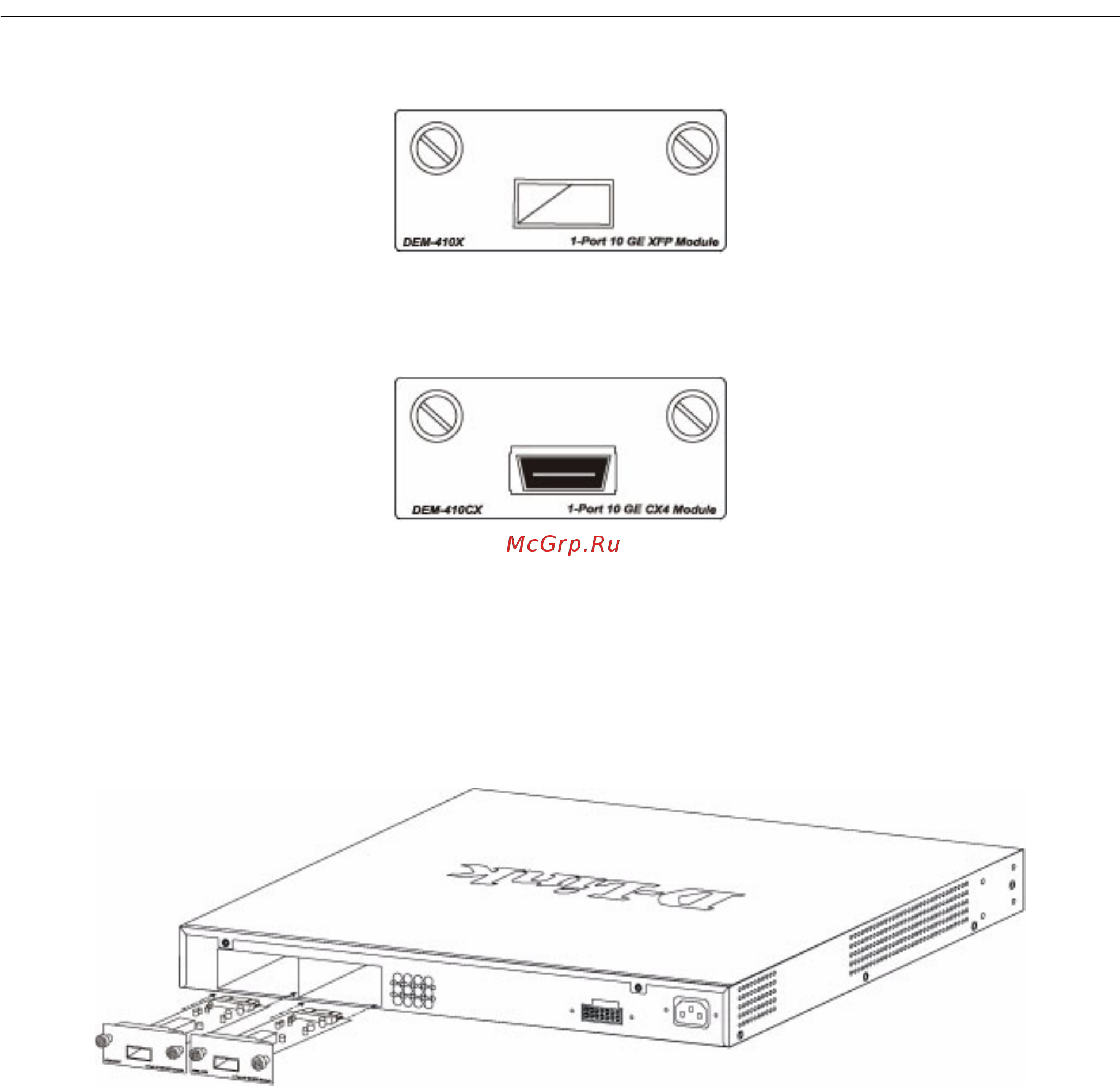

Figure 23: Front Panel of the DEM-410X

Figure 24: Front Panel of the DEM-410CX

Install the Module

Unplug the Switch before removing the faceplate covering the empty slot. To install the module, slide it in to the available

slot at the rear of the Switch until it reaches the back, as shown in the following figure. Gently, but firmly push in on the module

to secure it to the Switch. The module should fit snugly into the corresponding receptors.

Figure 25: Inserting the optional module into the Switch (DWS-3026)

Now tighten the two screws at adjacent ends of the module into the available screw holes on the Switch. The upgraded

Switch is now ready for use.
