Software User Manual D-Link Unified Access System
02/15/2011
Document 34CS3000-SWUM104-D10 Page 199
The Images menu item shows the icons that represent the WLAN components on the graph.

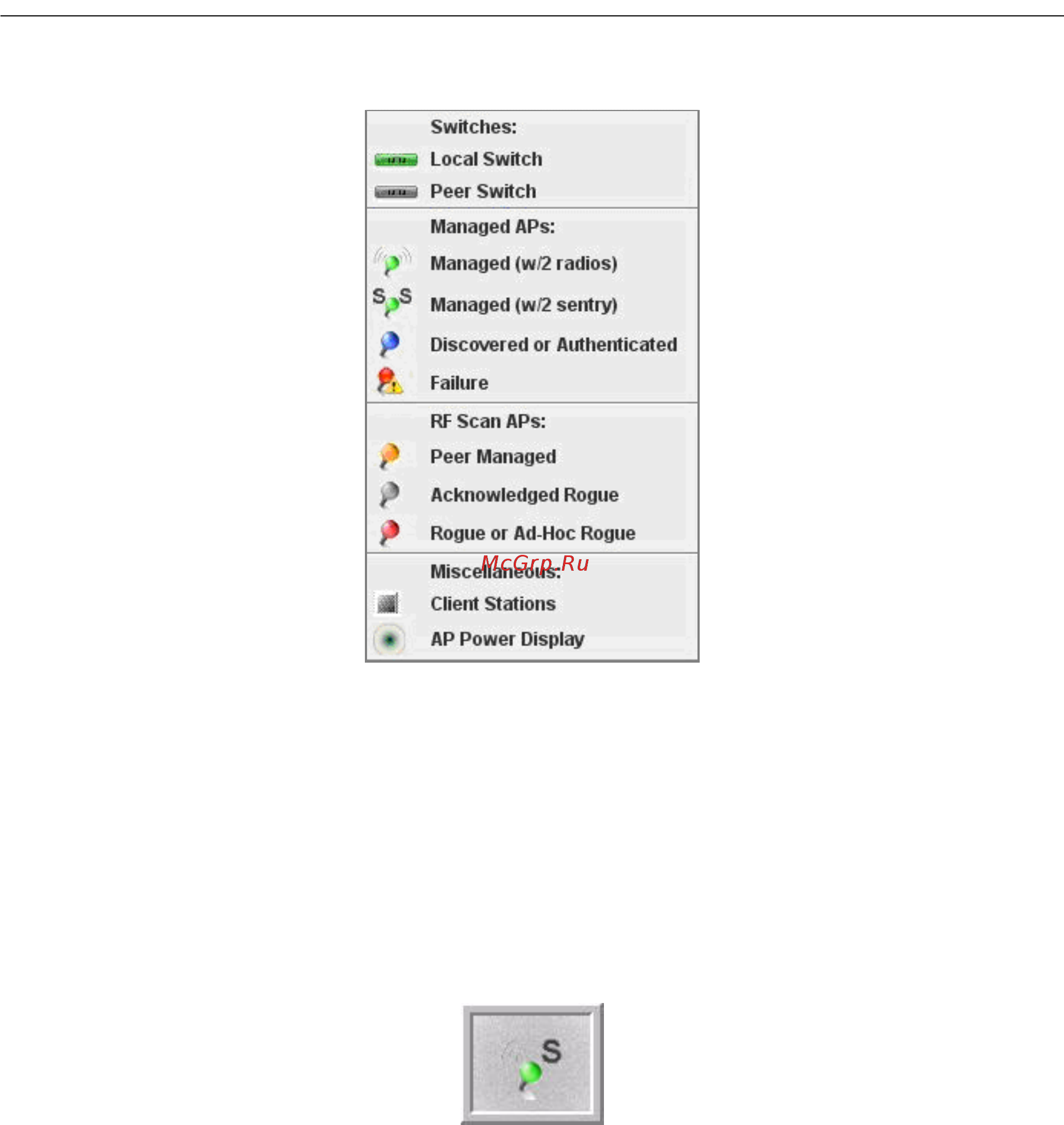

Figure 104: Legend
As the legend shows, the Managed AP icon can be blue, green, or red, depending on the status of the AP:
Blue—The AP has been discovered and by the switch, but it is in a transitional state. The AP could be waiting to be
authenticated, or it has been validated and authenticated but not configured.
Green—The AP profile configuration has been applied to the AP, and it is operating in managed mode.
Red—The switch has lost contact with the AP, the AP is being reset, or the AP has experienced an authentication
failure.
When a radio is operating in Sentry Mode, the antenna on the AP icon is replaced by the letter “S” as Figure 105 shows.
Figure 105: Sentry Mode - Detailed View
For radios in sentry mode, the AP power display image around the AP is gray.
