D-Link DWS-3024 [70/266] Authenticating and validating access points

D-Link Unified Access System Software User Manual

02/15/2011

Page 70 Document 34CS3000-SWUM104-D10

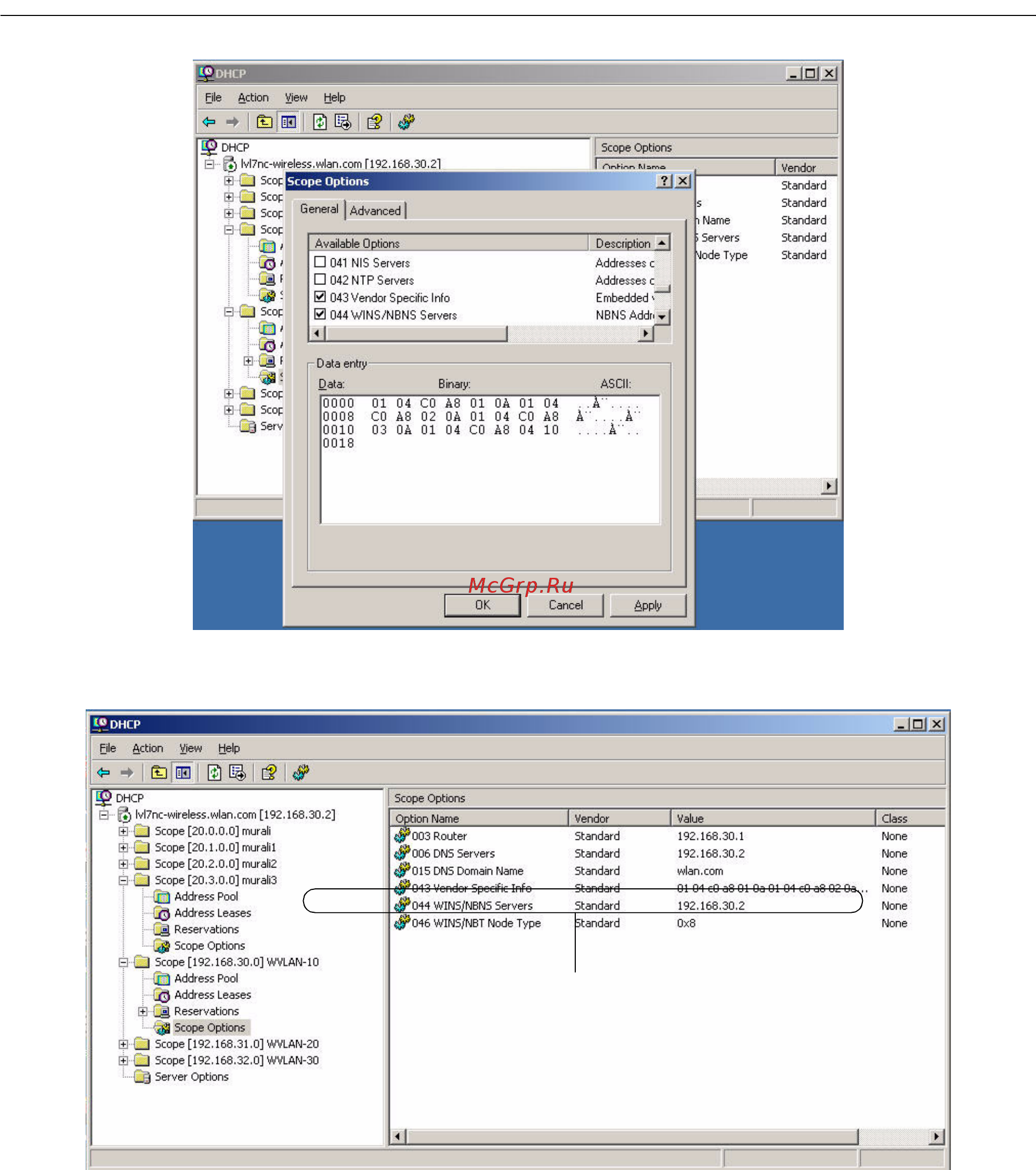

The following image shows the four IP addresses entered into the Data Entry field on the Windows DHCP server.

4 Click OK.

The following figure shows a scope with Option 43 configured.

AUTHENTICATING AND VALIDATING ACCESS POINTS

For a D-Link Unified Switch to manage an AP, you must add the MAC address of the AP to the local or external RADIUS

database. When the switch discovers an AP that is not managed by another Unified Switch, it looks up the MAC address of

the AP in the local or RADIUS Valid AP database. If it finds the MAC address in the database, the switch validates the AP

Scope with Configured

Option 43 Information
