STANDARD ACCESSORIES
(1) Wrench (17 mm) ....................................................... 1
(2) Wrench (12 mm) ....................................................... 1
(3) Side handle (Not included by areas) ..................... 1
Standard accessories are subject to change without
notice.
OPTIONAL ACCESSORIES (sold separately)
Collet chuck
for 3 mm shaft
for 3.175 mm (1/8”) shaft
for 6.35 mm (1/4”) shaft
for 8 mm shaft
Dimensions and handling methods other than the
shaft hole are the same as those for the 6 mm collet
chuck.

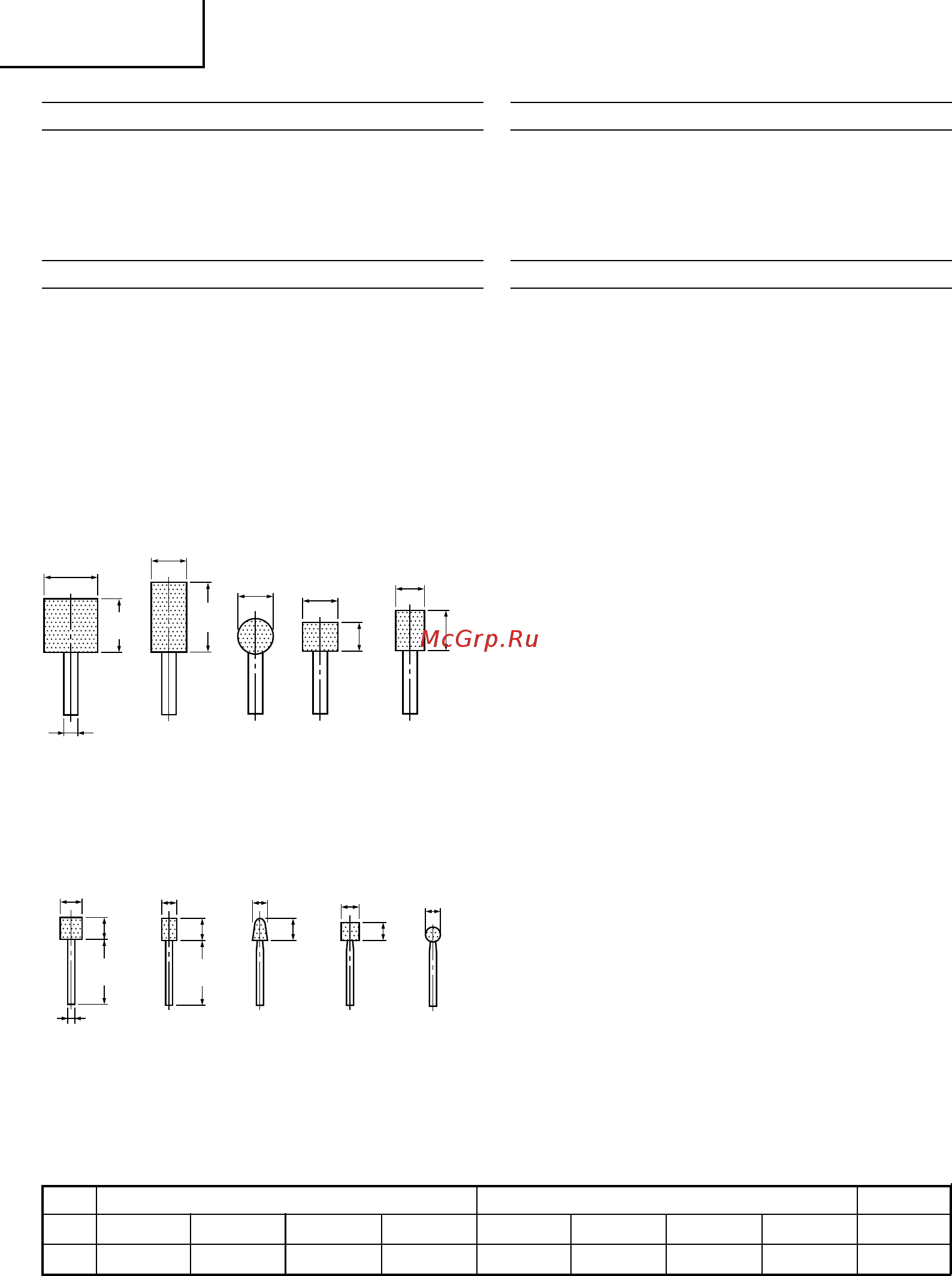

Wheels with 6 mm shaft
All wheels are provided with WA grain, 60 granding,
and P bonding and are suitable for grinding general
and special steel materials.
KA-4 KA-5 KA-8 KA-12 KA-13
Wheels with 3 mm shaft
All wheels are provided with WA grain, 80 granding
and P bonding and are suitable for grinding general
and special steel materials.
KA-20 KC-20 KC-22 KC-23 KC-24
Dresser
Case
Optional accessories are subject to change without notice.
ø 25
25
ø 6
ø 16
32
ø 16
ø 16
13
ø 13
19
ø 10
10
ø 3
30
ø 6
30
10
ø 6
10
ø 7
7
ø 6
APPLICATIONS
Finishing of dies for press working, die casting and
moulding.
Finishing of thread cutting dies, tools and other
small parts.
Internal grinding of tools and machine parts.
PRIOR TO OPERATION
1. Power source
Ensure that the power source to be utilized conforms
to the power requirements specified on the product
nameplate.
2. Power switch
Ensure that the power switch is in the OFF position.
If the plug is connected to a receptacle while the
power switch is in the ON position, the power tool
will start operating immediately, which could cause
a serious accident.
3. Extension cord
When the work area is removed from the power
source, use an extension cord of sufficient thickness
and rated capacity. The extension cord should be
kept as short as practicable.
4. Installing a wheel
Install the wheel so that lengthris less than 15 mm.
If r is longer, abnormal vibration will occur, and
the machine is not only negatively affected, but
there is a possibility of a serious accident.
Make theras small as possible.
When d = 6 mm, 6.35 mm (1/4”), 8 mm, D of the
wheel should be less than 25 mm. If a wheel with
D more than 25 mm is used, the circumference
speed exceeds the safety limit and the wheel will
break. Never use such a wheel.
Distance L varies for D. Determine L referring to
the table below.
When d = 3 mm, 3.175 mm (1/8”), D should be less
than 10 mm. Determine L referring to the table
below.
Wheels can be simply attached and detached by
using the two wrenches. (Fig. 2).
NOTE:
Do not tighten the collet chuck by inserting a shaft
thinner than the regular shaft diameter (6 mm) in
the chuck or in an empty condition. This practice
will damage the collet chuck.
When installing a wheel with shaft, tighten the
collet chuck after applying a small quantity of spindle
oil (or sewing machine oil) to the tapered portion
indicated in Fig. 1.
(whenr= 15 mm)
d3 mm, 3.175 mm (1/8”) 6 mm, 6.35 mm (1/4”) 8 mm
D5 mm6 mm 8 mm 10 mm 13 mm 16 mm 20 mm 25 mm 25 mm
L 10 mm 13 mm 16 mm 13 mm 40 mm 40 mm 25 mm 25 mm 32 mm
01Eng_GP2S2_EE 9/15/09, 18:457
