10D-Link DAP-1155 User Manual
Section 2 - Installation
Bridge Mode
In the Wireless Client mode, the DAP-1155 acts as a wireless network adapter for your Ethernet-enabled device (such as a
game console or a laptop). Connect your Ethernet-enabled device to the AP using an Ethernet cable. The AP Client mode can
support one wired client.

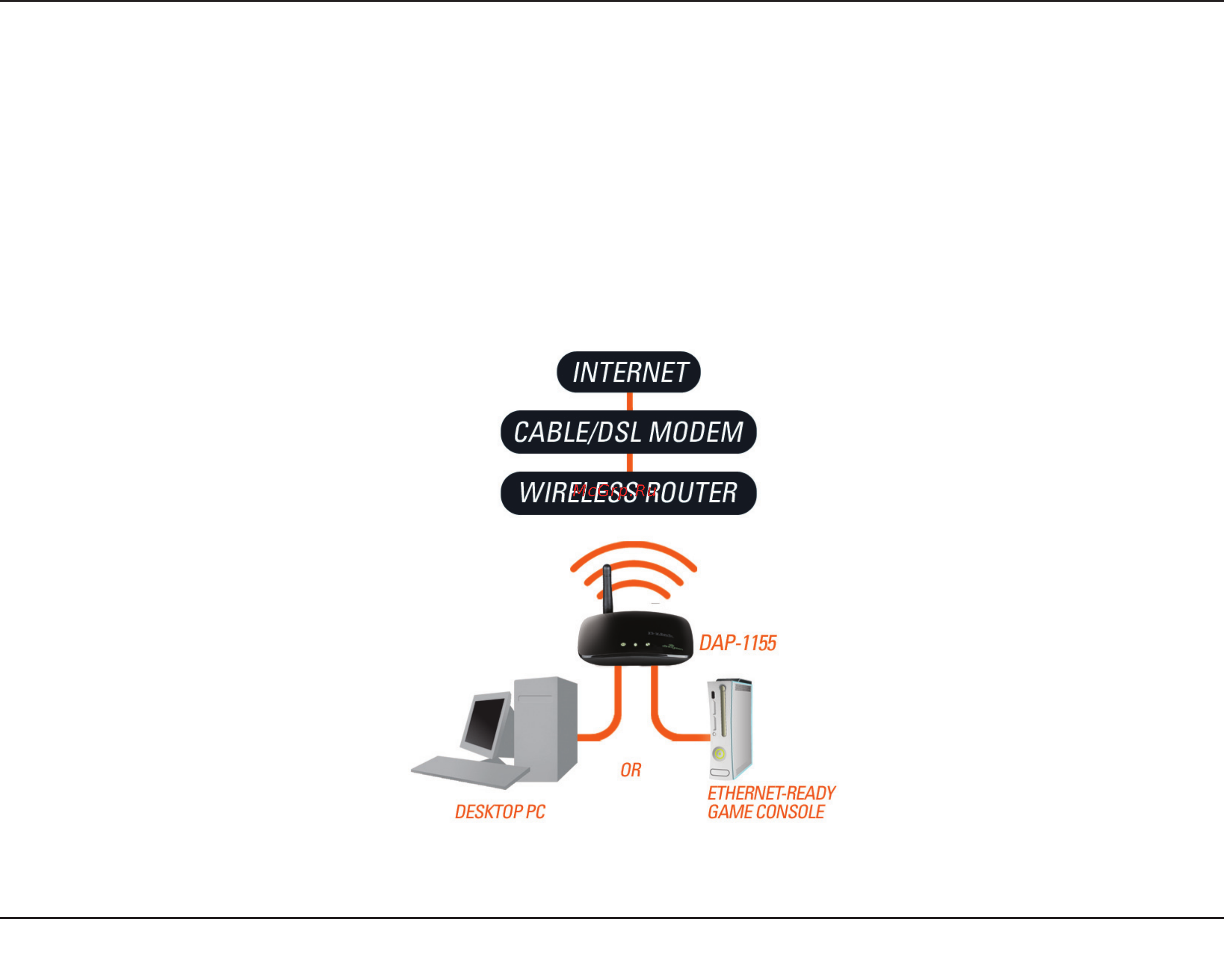

Example: Connect a gaming console using an Ethernet cable to the DAP-1155. The unit is set to Wireless Client mode which
will wirelessly connect to a wireless router on your network.
