D-Link DAP-1155 [34/80] Schedules

34D-Link DAP-1155 User Manual

Section 3 - Conguration

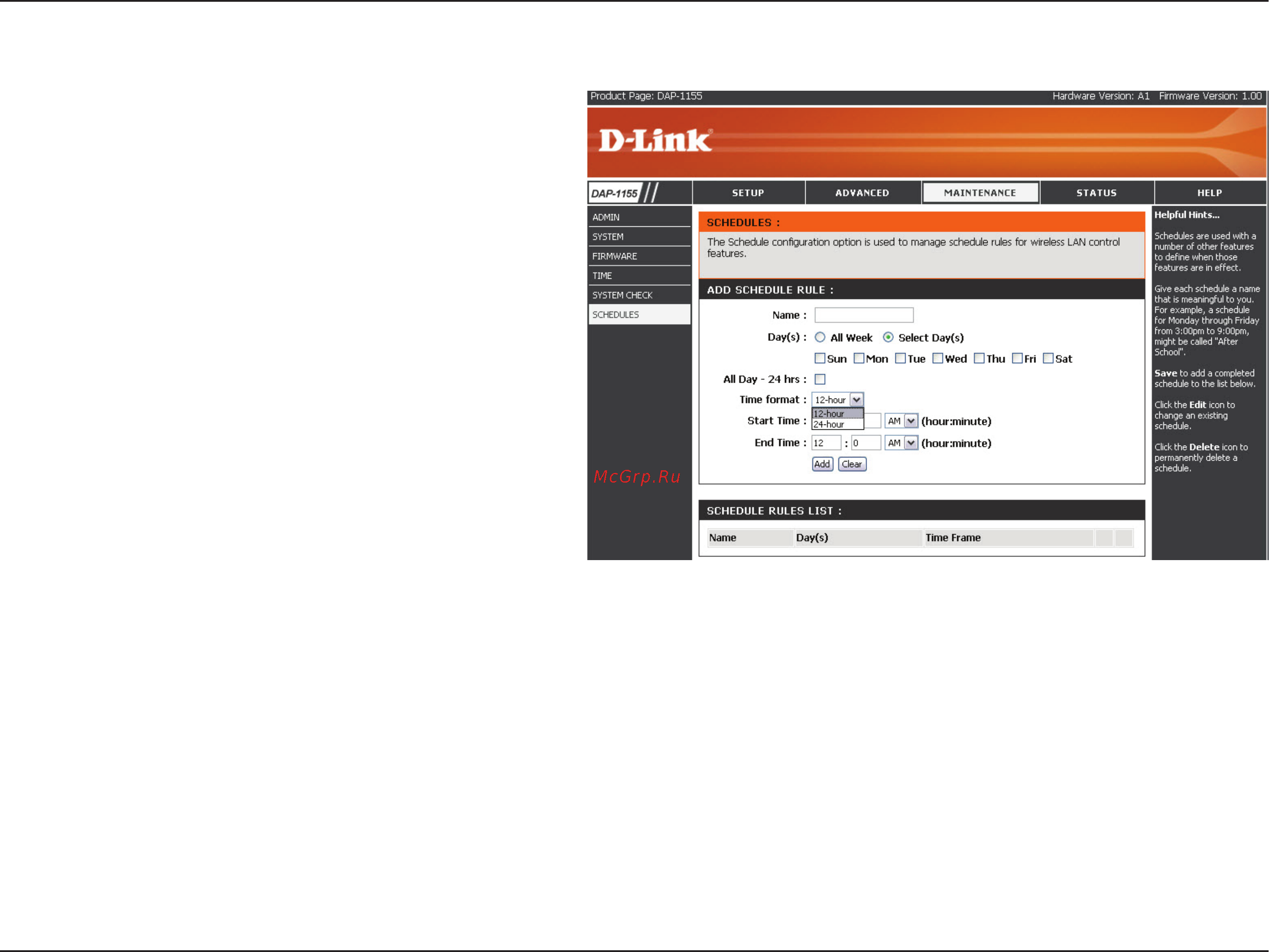

Schedules

Name:

Days:

Time:

Save:

Schedule Rules

List:

Enter a name for your new schedule.

Select a day, a range of days, or All Week to include

every day.

Check All Day - 24hrs or enter a start and end time

for your schedule.

Click Save to save your schedule. You must click

Save Settings at the top for your schedules to go

into e ect.

The list of schedules will be listed here. Click the

Edit icon to make changes or click the Delete icon

to remove the schedule.
