39D-Link DAP-1155 User Manual

Section 3 - Conguration

Enable Wireless:

Wireless Mode:

Wireless Network

Name:

802.11 Mode:

Wireless Type:

Site Survey:

Wireless Network

Name:

Wireless MAC

Clone:

MAC Address:

Security Mode:

Enable:

Check the box to enable the ireless function. If you do not want to use wireless,

uncheck the box to disable all the wireless functions.

Select Bridge from the drop-down menu.

When you are browsing for available wireless networks, this is the name that will

appear in the list (unless Visibility Status is set to invisible, see below). This name

is also referred to as the SSID. For security purposes, it is highly recommended to

change from the default network name.

802.11n only – Select only if all of your wireless clients are 802.11n.

Mixed 802.11n and 802.11g – Select if you are using both 802.11n and 892.1g

wireless clients.

Mixed 802.11n, 802.11g, and 802.11b – Select if you are using 802.11n, 802.11g

and 802.11b wireless clients.

Select Infrastructure if connecting to a wireless router or access point (most

common) or Ad-Hoc if connecting directly to another wireless client in Ad-Hoc

mode.

Click to display available wireless networks within range of the DAP-1155. Select

the network you want to connect to and enter any security settings required.

If you did not use the Site Survey option, enter the SSID or network name exactly

as it is set on your wireless router or access point.

Enabling this option allows the user to manually assign the source MAC address to packets forward by the DAP-1155. If not manually assigned,

the packet’s source MAC address eld will be automatically selected as the DAP-1155 MAC.

Enter the desired MAC address connected to your DAP-1155 to enable the clone function.

Refer to page 51 for more information regarding wireless security.

Enable the Wi-Fi Protected Setup feature.

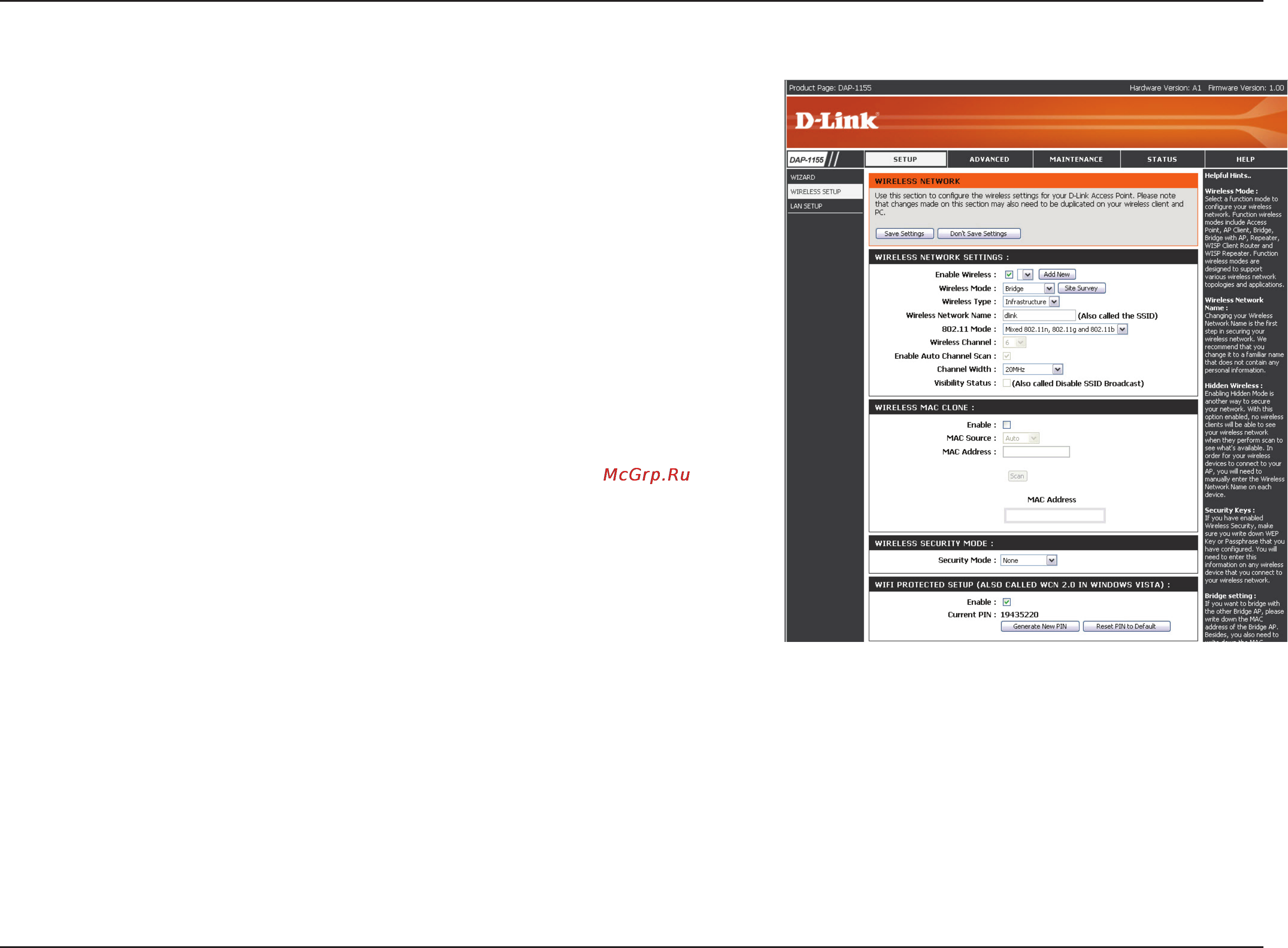

Wireless Setting Bridge Mode
