D-Link DAP-1155 [40/80] Lan setting

40D-Link DAP-1155 User Manual

Section 3 - Conguration

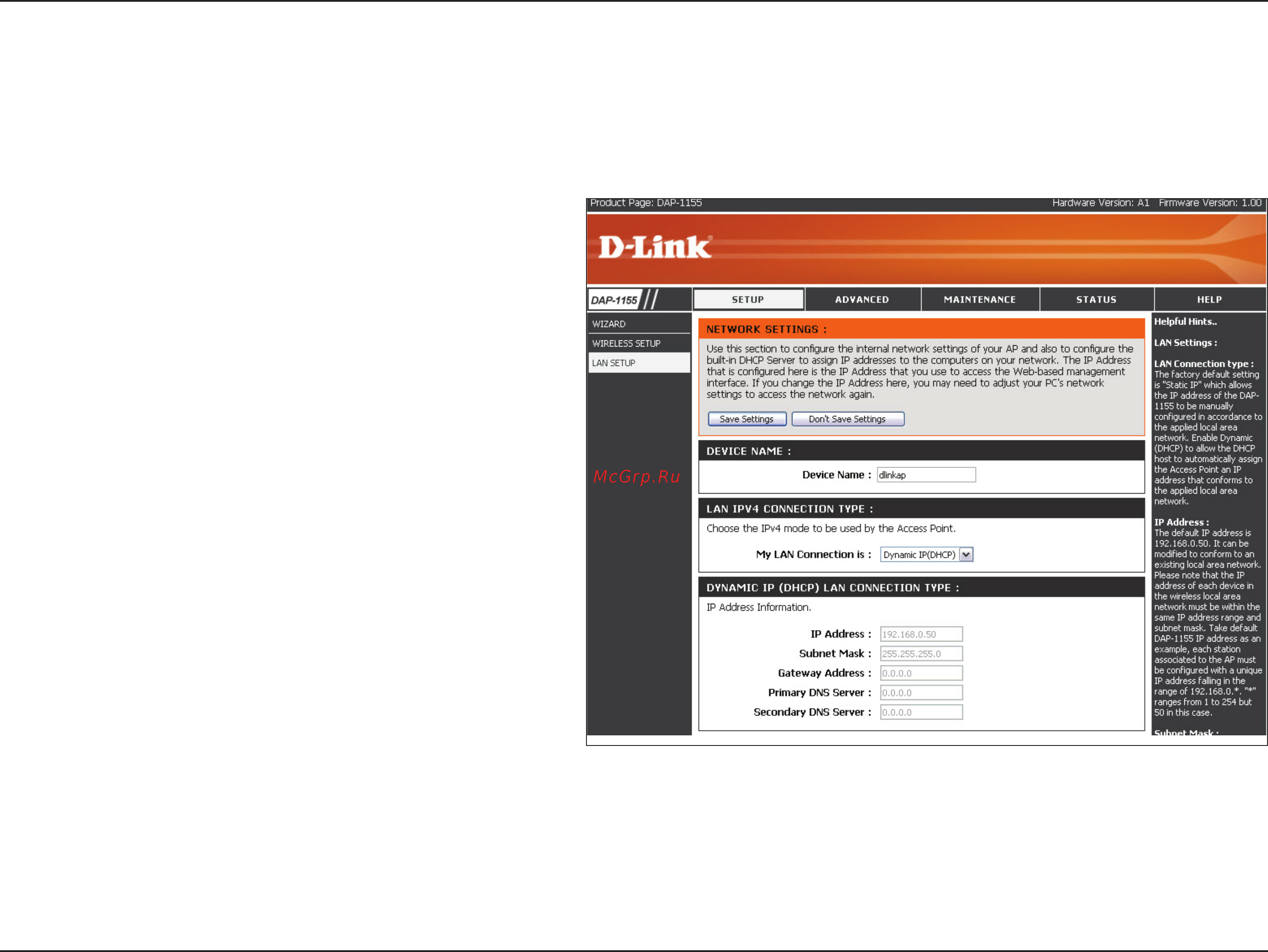

Select DHCP to automatically obtain an IP address

on the LAN/private network.

Enter the Device Name of the AP and click Next to

continue. It is recommended to change the Device

Name if there is more than one D-Link device

within the subnet.

LAN Connection

Type:

Device Name:

LAN Setting

DHCP

This section will allow you to change local network settings of the bridge and to congure the Static settings.
