13D-Link DAP-1155 User Manual

Section 3 - Conguration

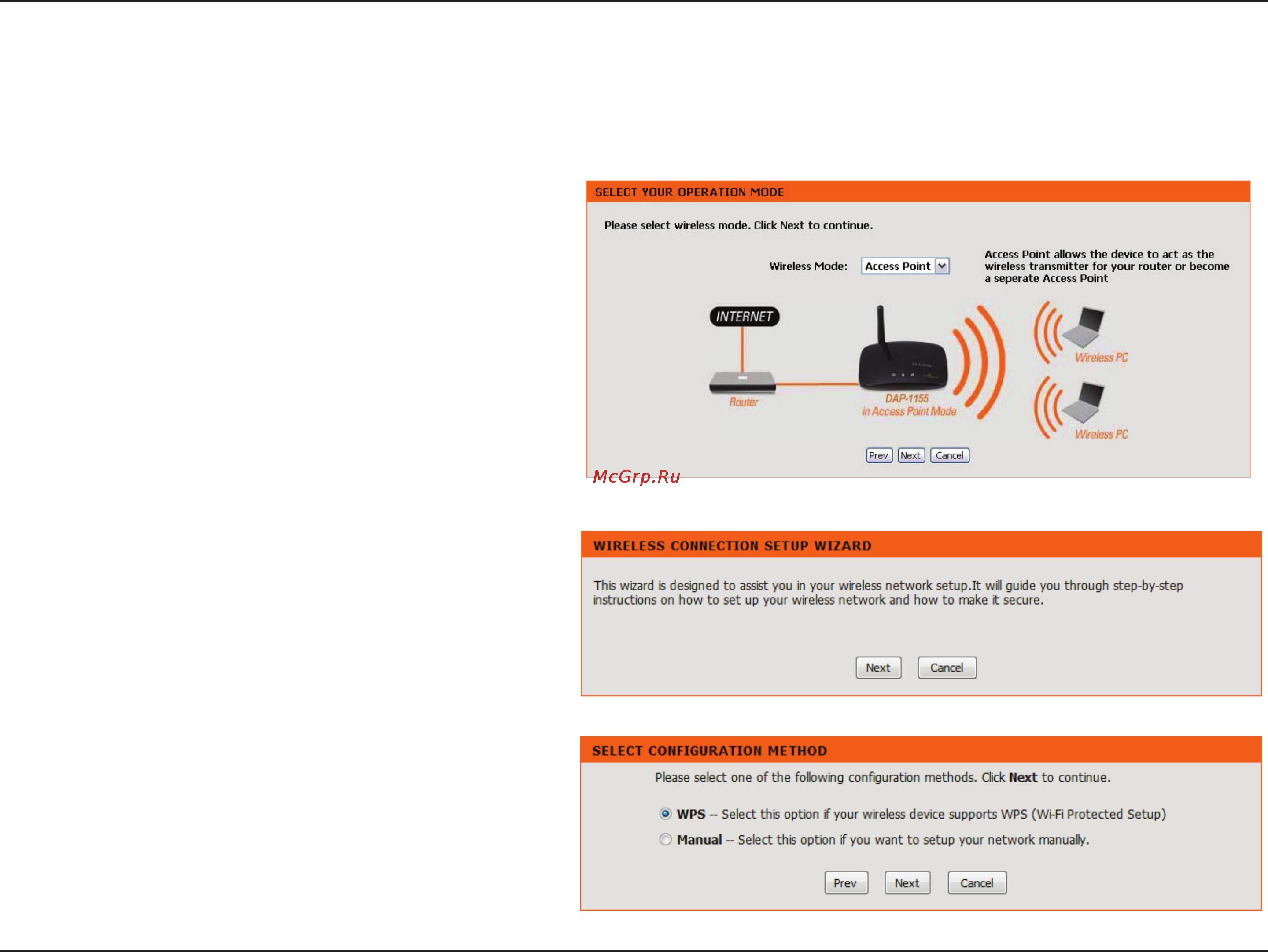

This Wizard is designed to assist you in conguring your DAP-1155 as an access point.

Access Point Mode

Select Access Point from the drop-down menu.

Click Next to continue.

Select WPS to connect using WPS (Wi-Fi Protected

Setup) and then click Next.
