D-Link DAP-1155 [48/80] Device info
![D-Link DAP-1155 [48/80] Device info](/views2/1044183/page48/bg30.png)
48D-Link DAP-1155 User Manual
Section 3 - Conguration
Displays the DAP-1155’s time and rmware version.
Displays the MAC address and the private (local) IP
settings for the access point.
Displays the wireless MAC address and your
wireless settings such as SSID and Channel.
General:
LAN:
Wireless LAN:
Status
Device Info

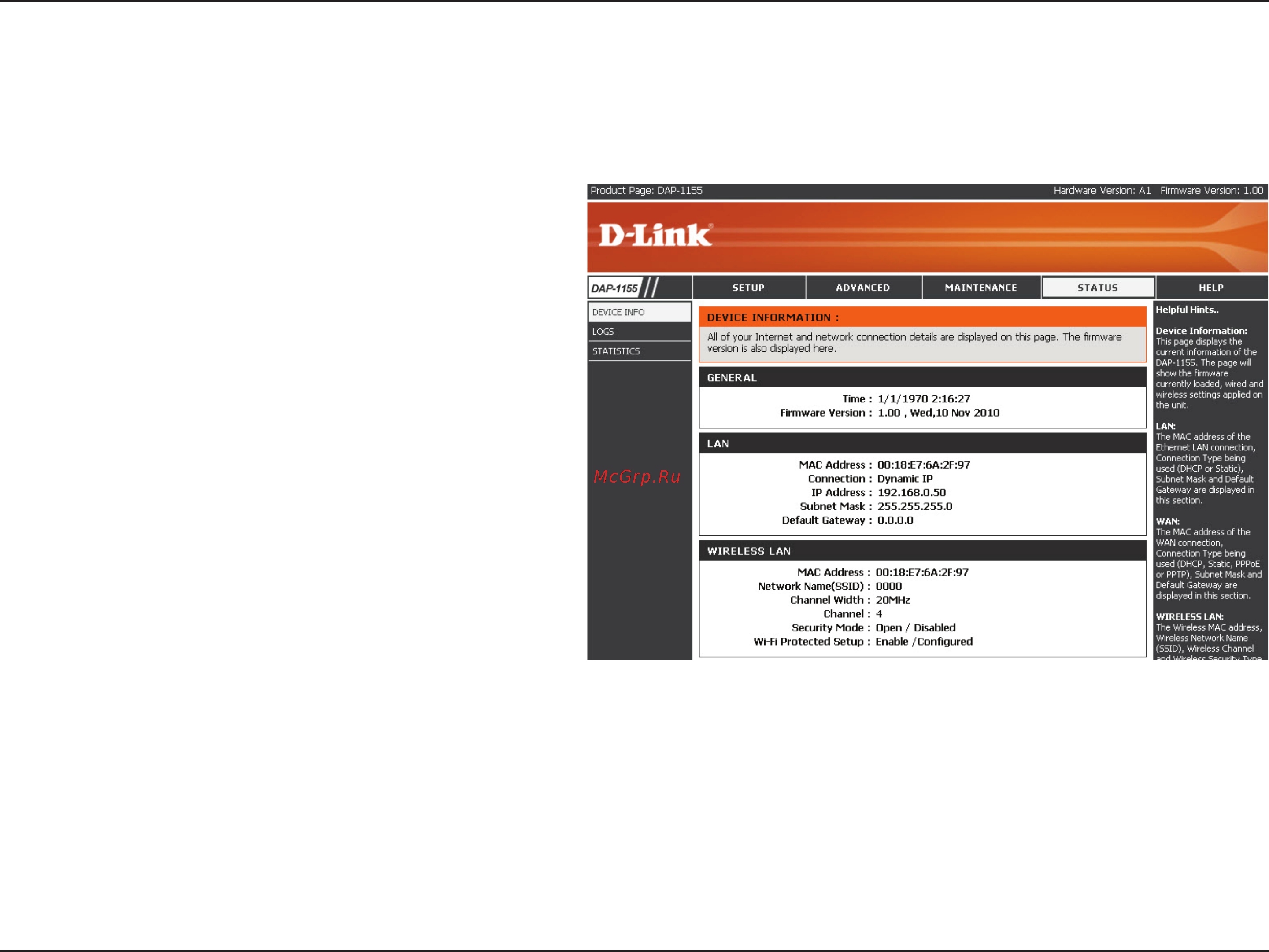

This page displays the current information for the DAP-1155. It will display the LAN and wireless LAN information.
