59D-Link DAP-1155 User Manual

Section 4 - Security

Congure WPS

The WPS feature of the DAP-1155 can be congured using Windows

7. Carry out the following steps to use Windows

7 to

congure the WPS feature of the DAP-1155:

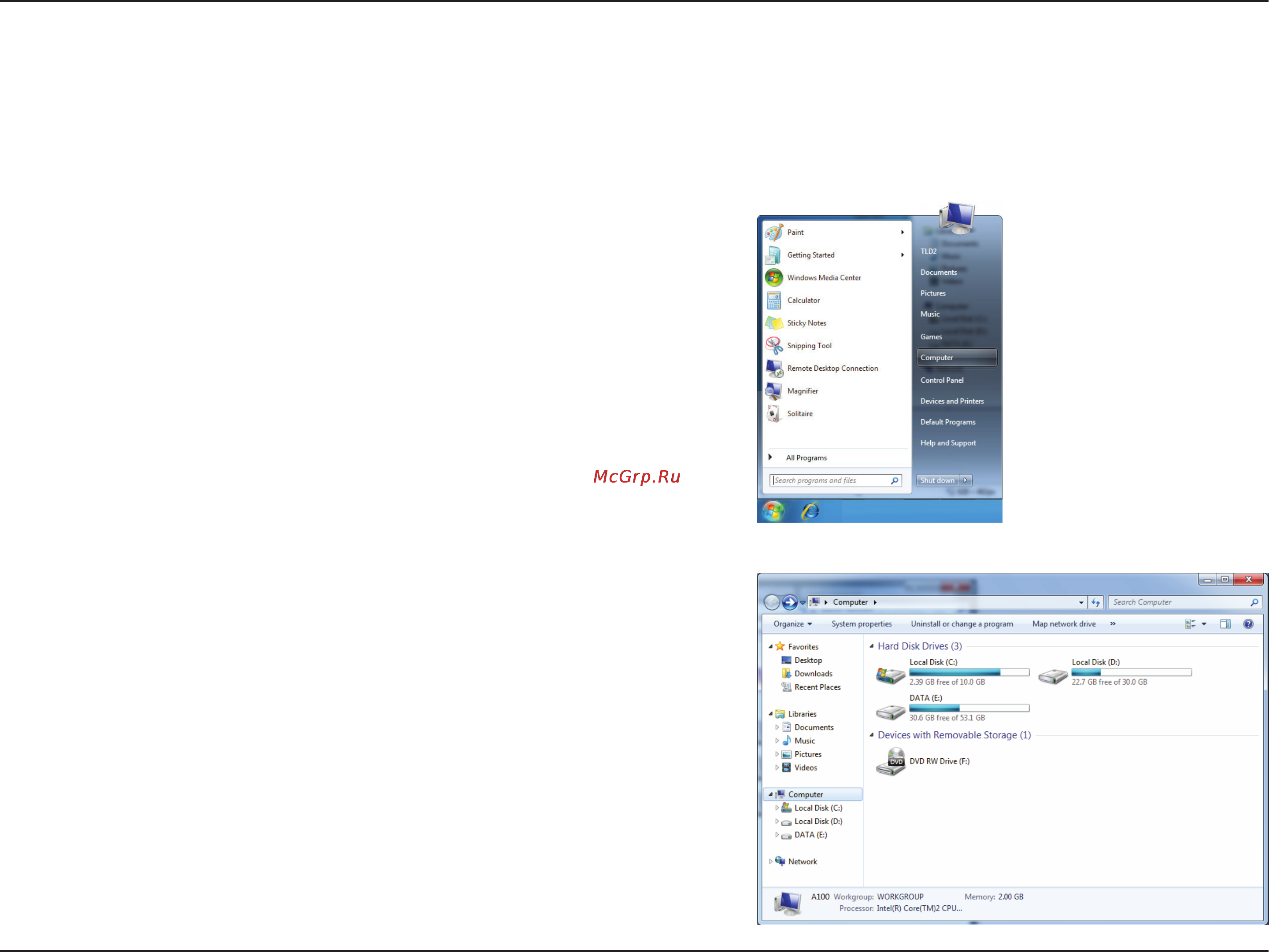

1. Click the Start button and select Computer from the Start

menu.

2. Click the Network option.
