50D-Link DAP-1155 User Manual
Section 3 - Conguration
Statistics

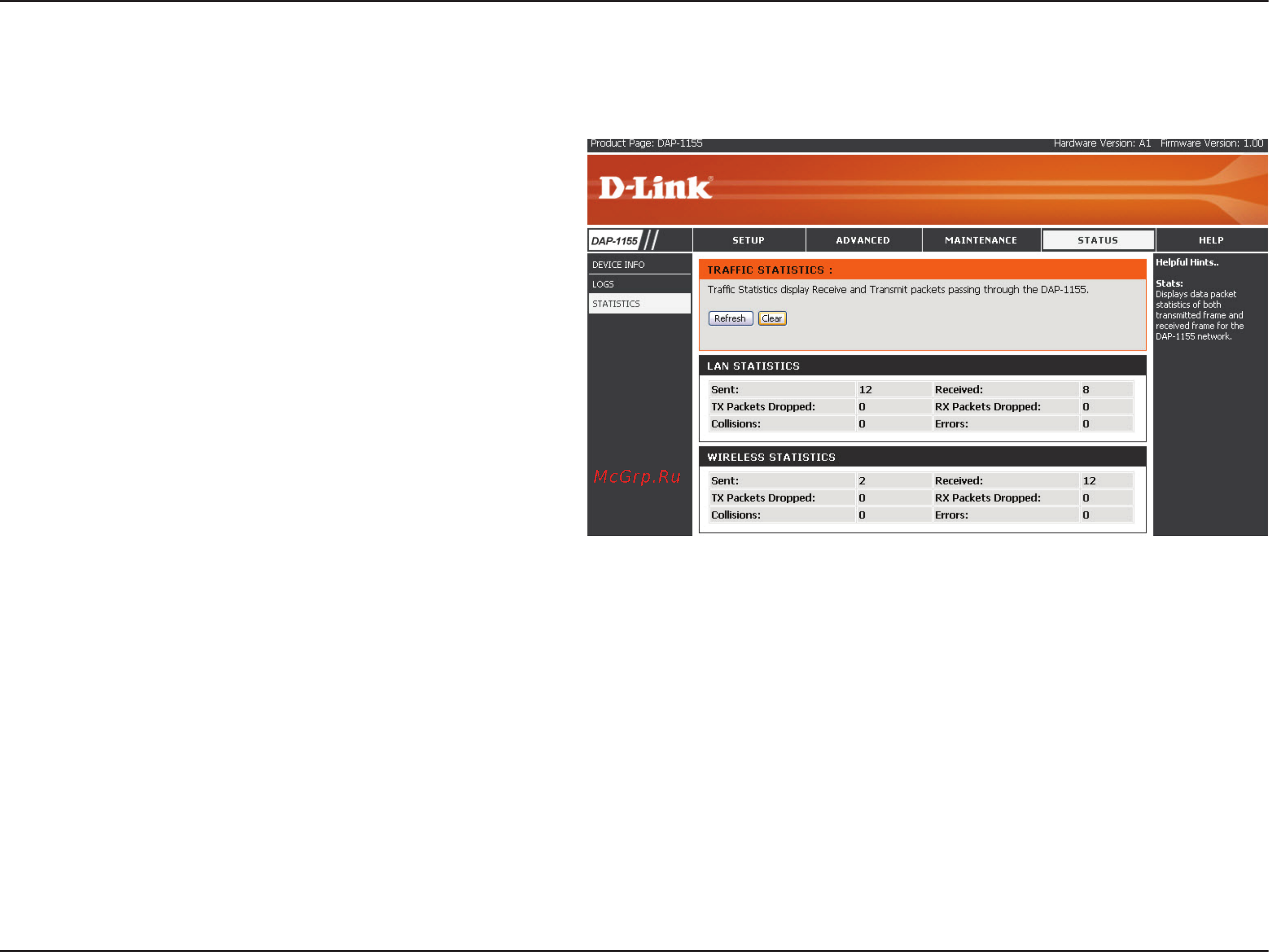

The Statistics page displays all of the LAN and Wireless packets transmit and receive statistics.
Sent:
Received:
TX Packets
Dropped:
RX Packets
Dropped:
Collisions:
Errors:
The total number of packets sent from the bridge.
The total number of packets received by the bridge.
Displays the number of packets that were dropped
while sending, due to errors, collisions, or access point
resource limitations.
Displays the number of packets that were dropped
while receiving, due to errors, collisions, or access point
resource limitations.
Displays the number of collisions.
Displays the number of errors.
