33D-Link DAP-1155 User Manual

Section 3 - Conguration

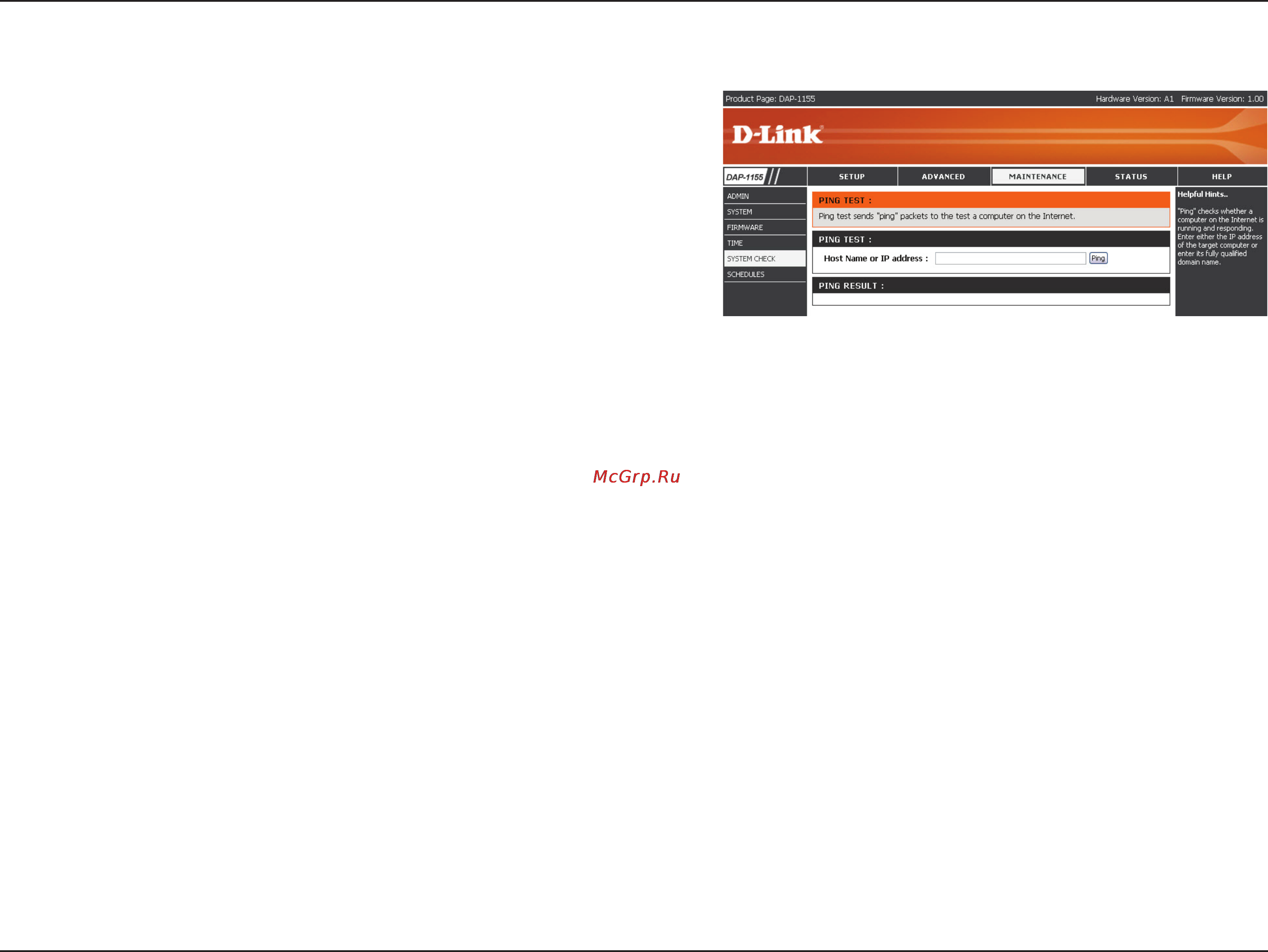

The Ping Test is used to send Ping packets to test if a computer

is on the Internet. Enter the IP Address that you wish to Ping,

and click Ping.

The results of your ping attempts will be displayed here.

System Check

Ping Test:

Ping Results:
