11D-Link DAP-1155 User Manual
Section 3 - Conguration
Conguration
This section will show you how to congure your new D-Link wireless access point using the web-based conguration utility.
Access Point Mode
If you wish to change the default settings or optimize the
performance of the DAP-1155, you may use the web-based
conguration utility.

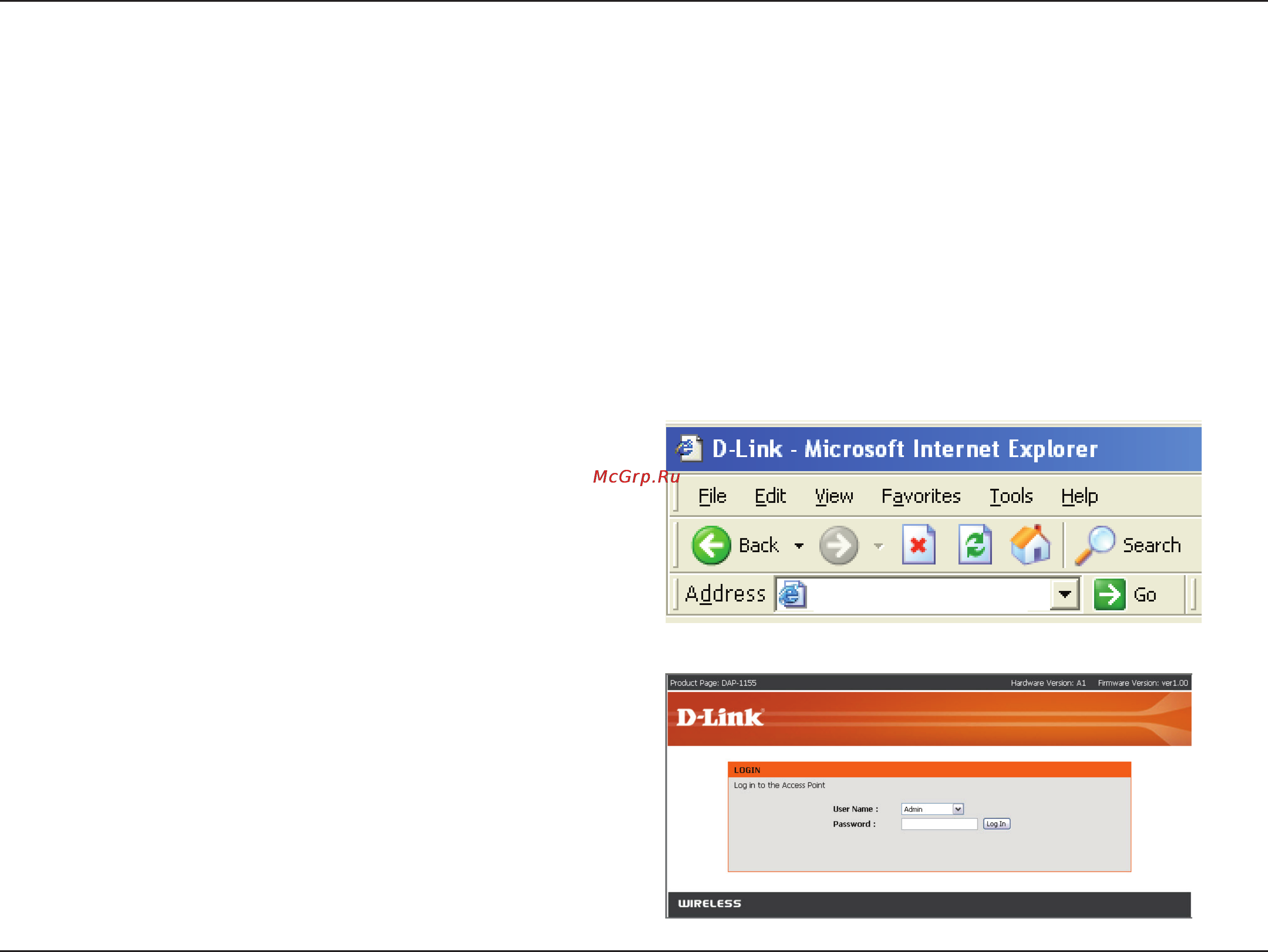

To access the conguration utility, open a web browser
such as Internet Explorer and enter http://dlinkap or
http://192.168.0.50 in the address eld.
Type admin and then enter your password. Leave the
password blank by default.
If you get a Page Cannot be Displayed error, please refer to
the Troubleshooting section for assistance.
Change the mode selector to AP on the device. Connect an Ethernet cable from the Ethernet port on the DAP-1155 to a
computer for conguration.
http://dlinkap
