63D-Link DAP-1155 User Manual

Section 5 - Connecting to a Wireless Network

Using Windows Vista

Windows Vista

users may use the convenient, built-in wireless utility. Follow these instructions:

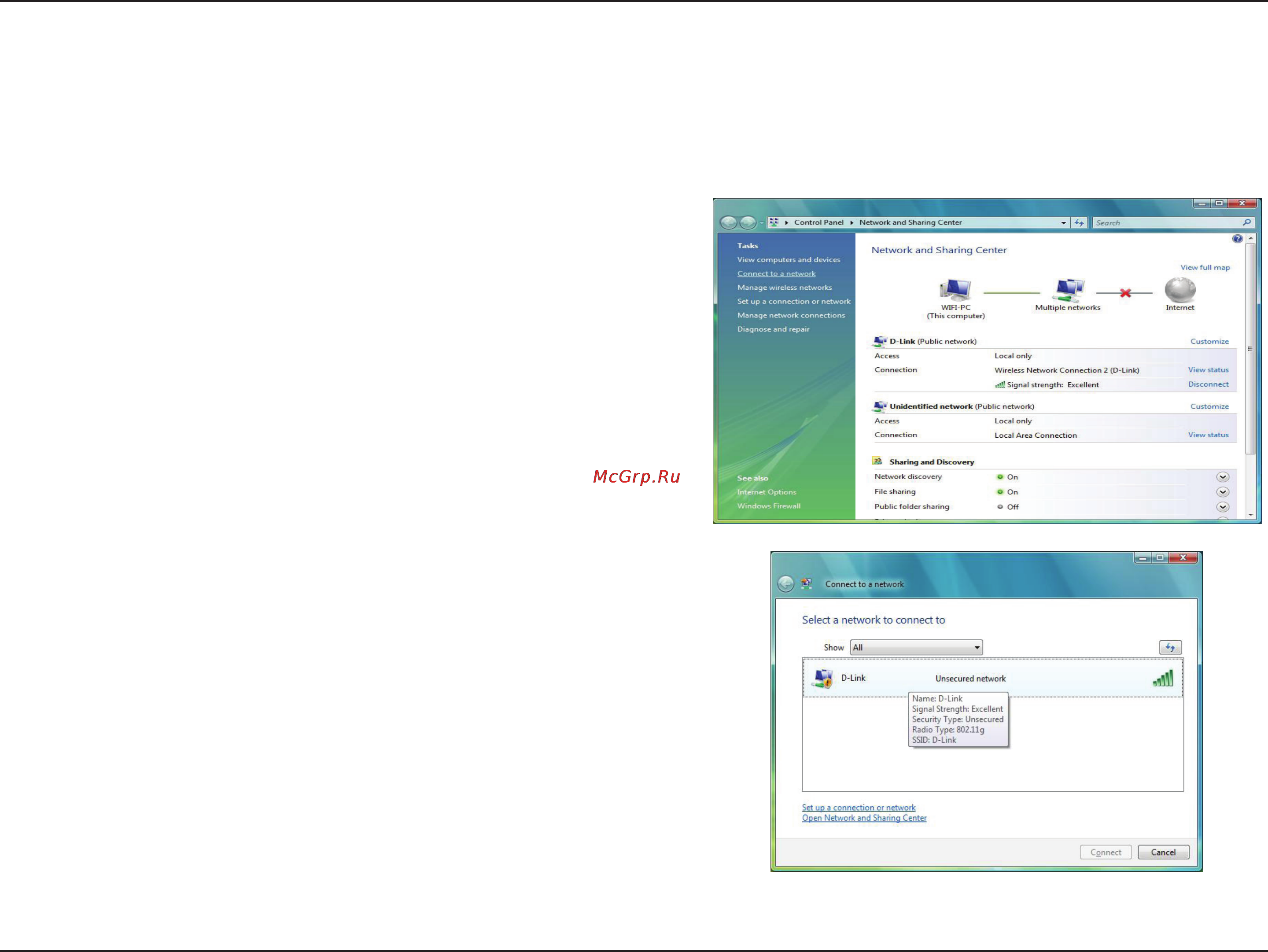

From the Start menu, go to Control Panel, and then click on

Network and Sharing Center.

The utility will display any available wireless networks in your area.

Click on a network (displayed using the SSID) under Select a network to

connect to and then click the Connect button.
