38D-Link DAP-1155 User Manual

Section 3 - Conguration

Wireless

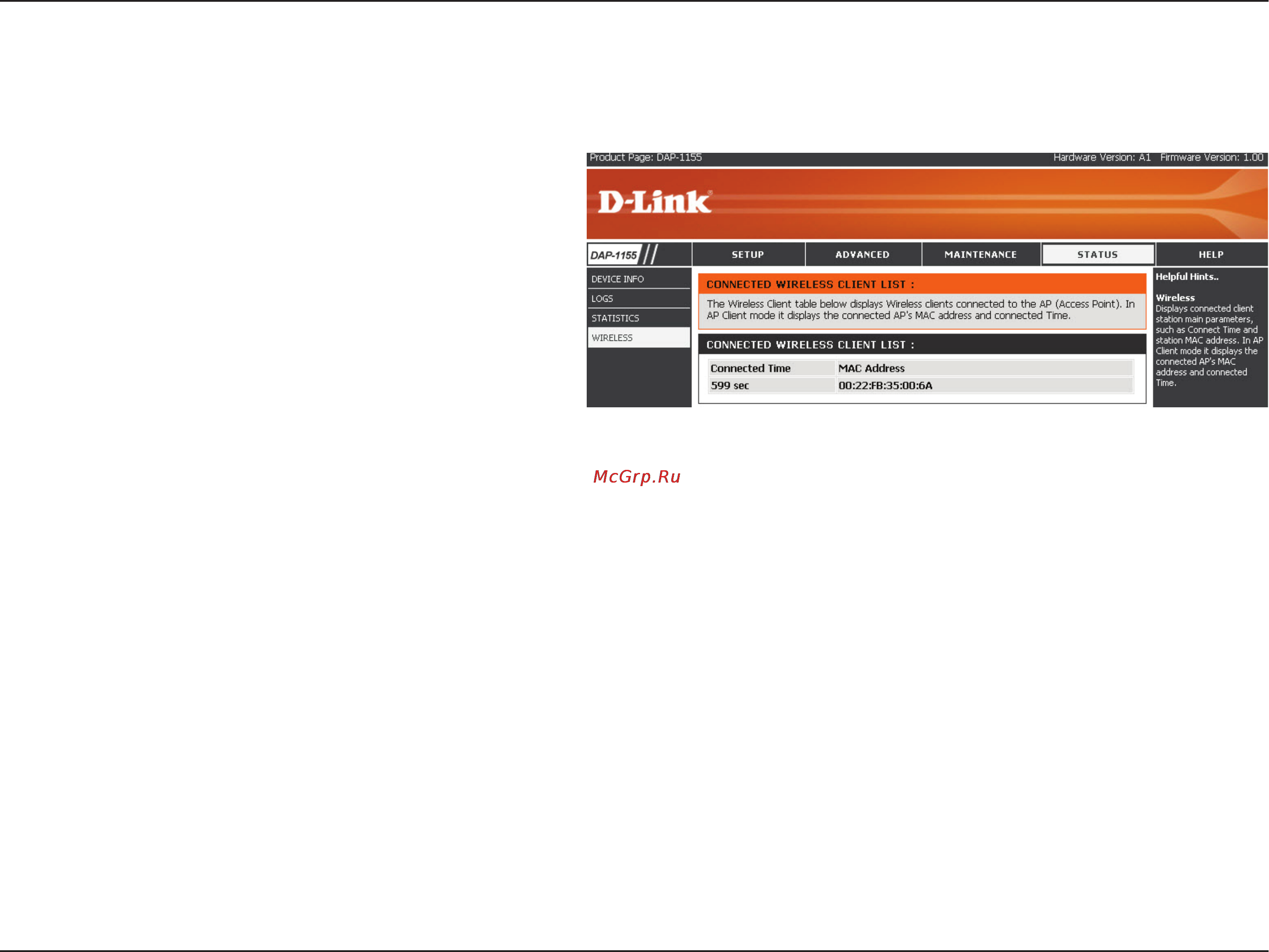

The wireless section allows you to view the wireless clients that are connected to your wireless access point.

Connection TIme:

MAC Address:

Displays the amount of time the wireless client has

been connected to the access point.

Displays the MAC address of the wireless client.
