28D-Link DAP-1155 User Manual
Section 3 - Conguration

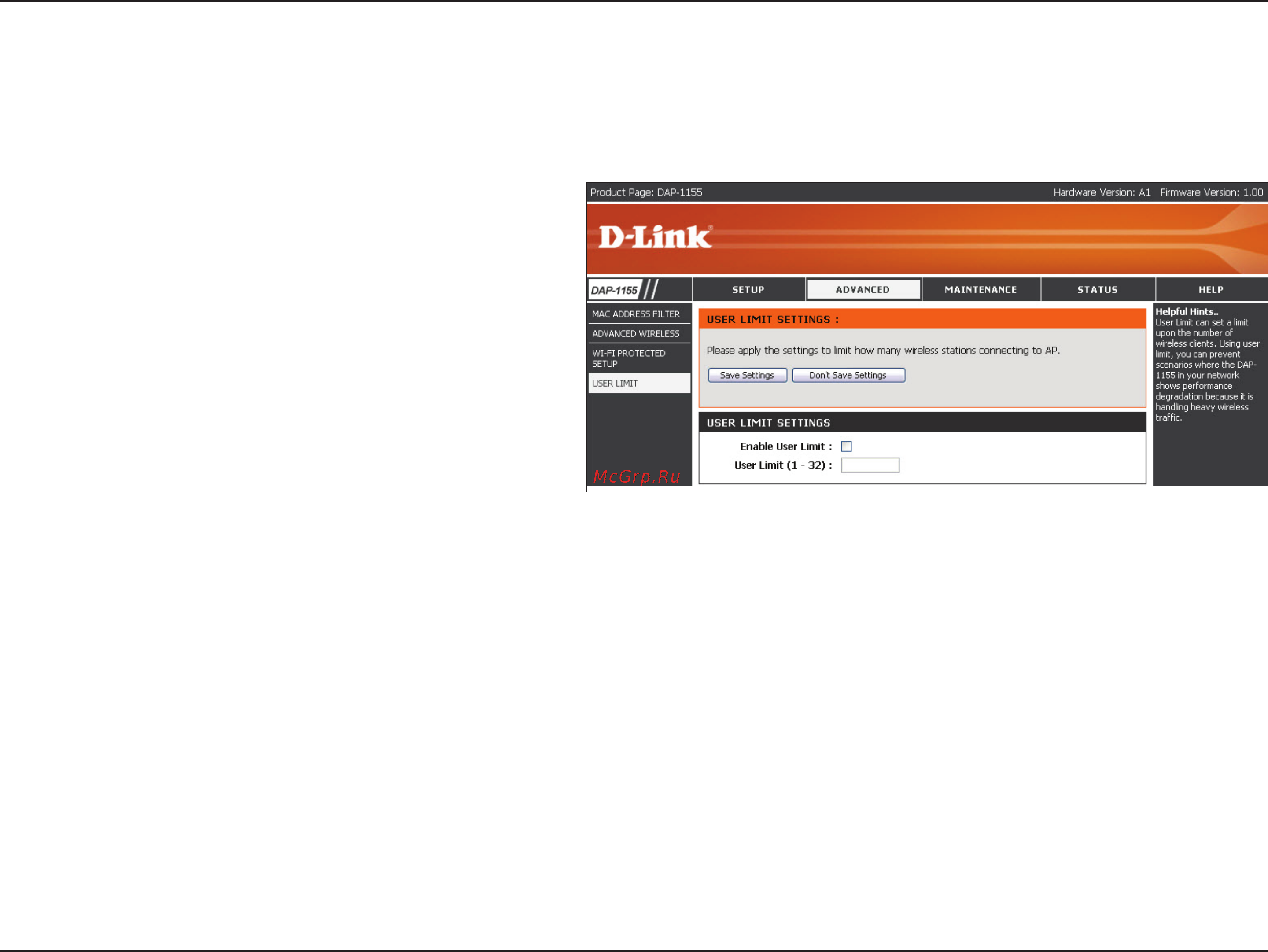

User Limit
Check the Enable User Limit box to enable this
feature.
Enter the maximum number of clients, between 1
and 32.
Click Save Settings to save and activate the new
changes.
Enable User
Limit:
User Limit:
Save
Settings:
Enter the maximum number of wireless clients that can connect at one time to your access point.
