D-Link DAP-1155 [12/80] Wireless setup wizard

12D-Link DAP-1155 User Manual

Section 3 - Conguration

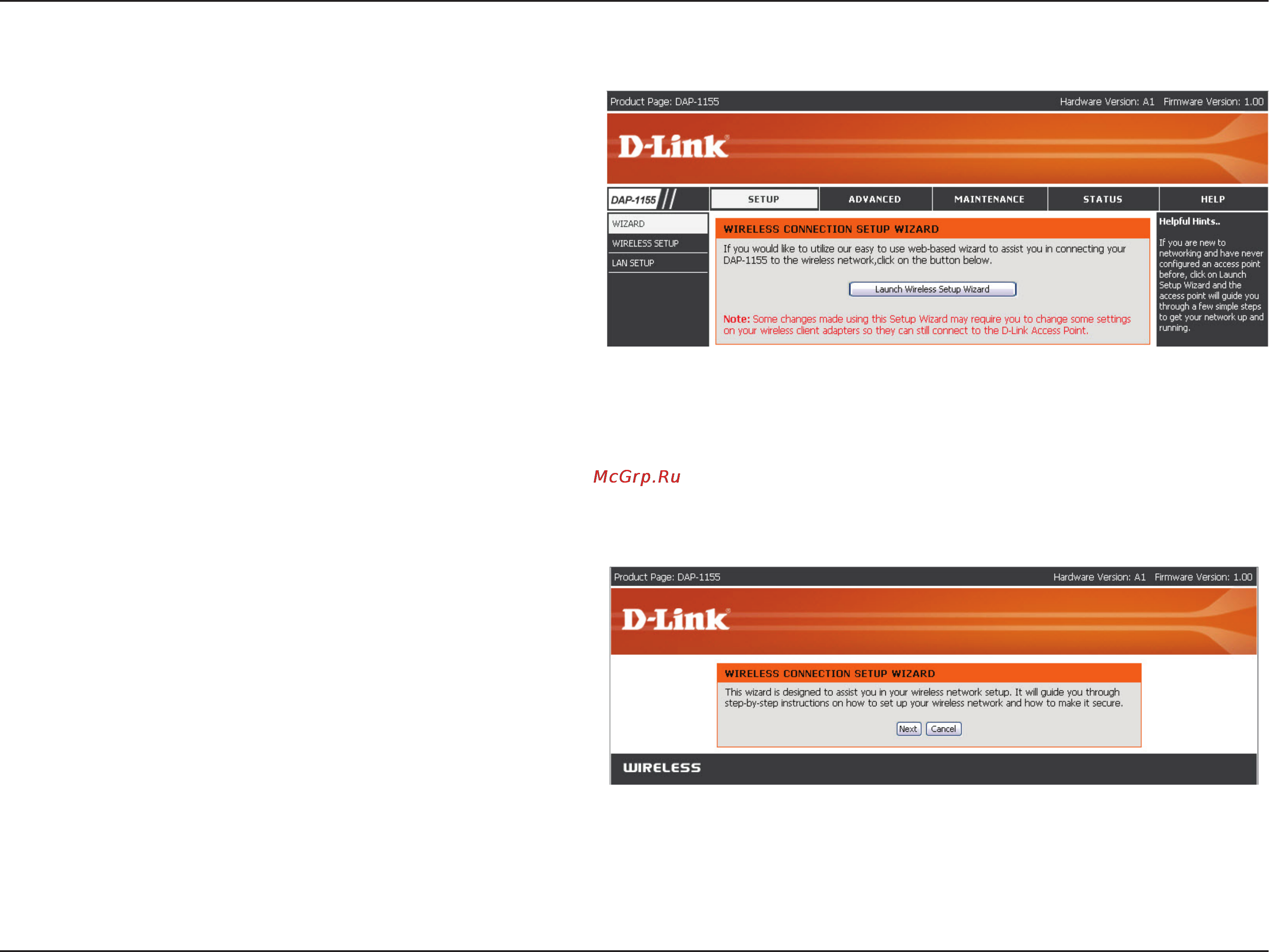

Click Launch Wireless Setup Wizard to quickly congure

your access point.

Wireless Setup Wizard

Click “Next” to continute.
