65D-Link DAP-1155 User Manual

Section 5 - Connecting to a Wireless Network

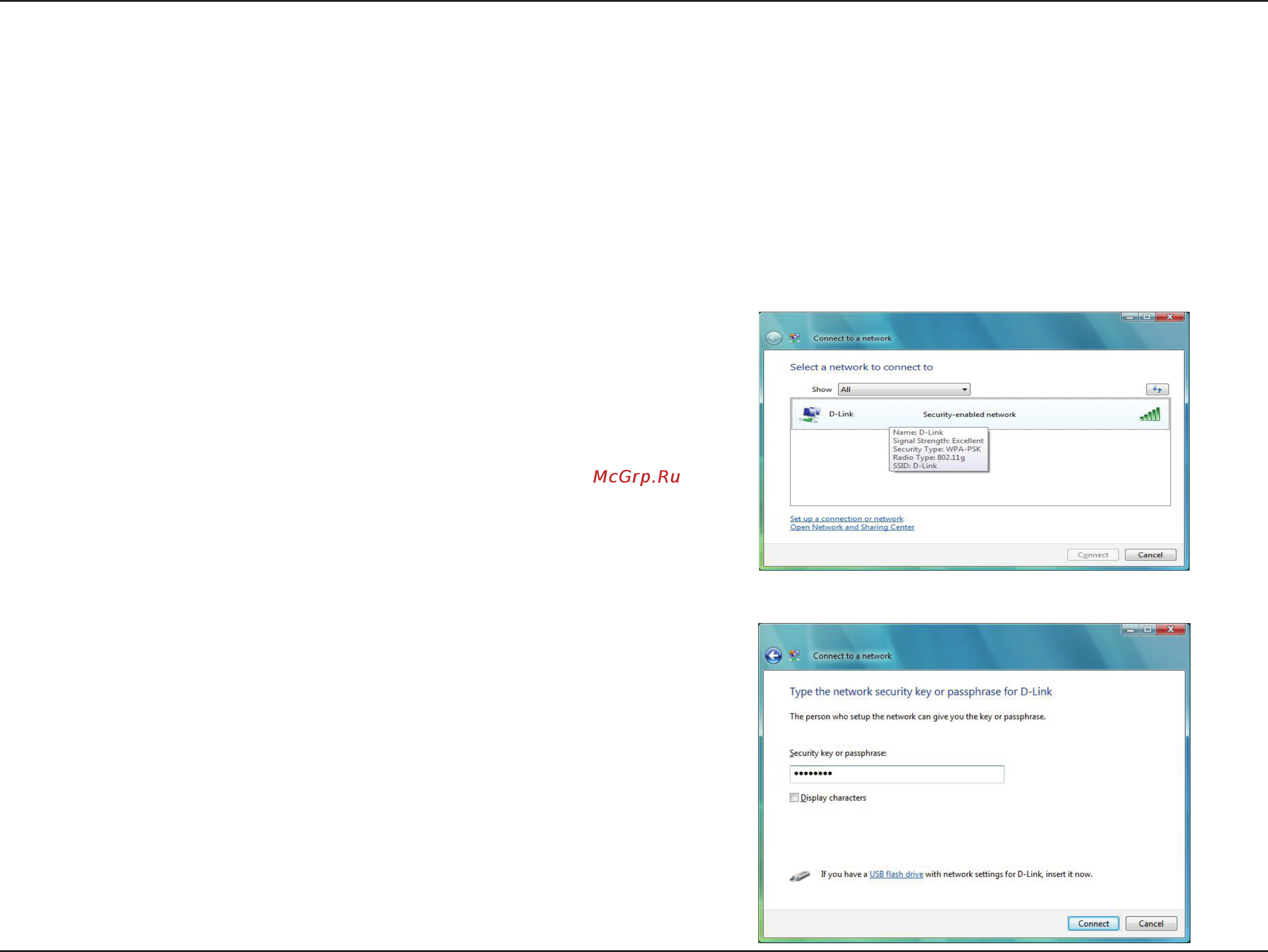

Click on a network (displayed using the SSID) using WPA-PSK under

Select a network to connect to and then click the Connect button.

Enter the appropriate security key or passphrase in the field

provided and then click the Connect button.

Congure WPA-PSK

It is recommended to enable WEP on your wireless bridge or access point before conguring your wireless adapter. If you are

joining an existing network, you will need to know the WEP key being used.
