64D-Link DAP-1155 User Manual

Section 5 - Connecting to a Wireless Network

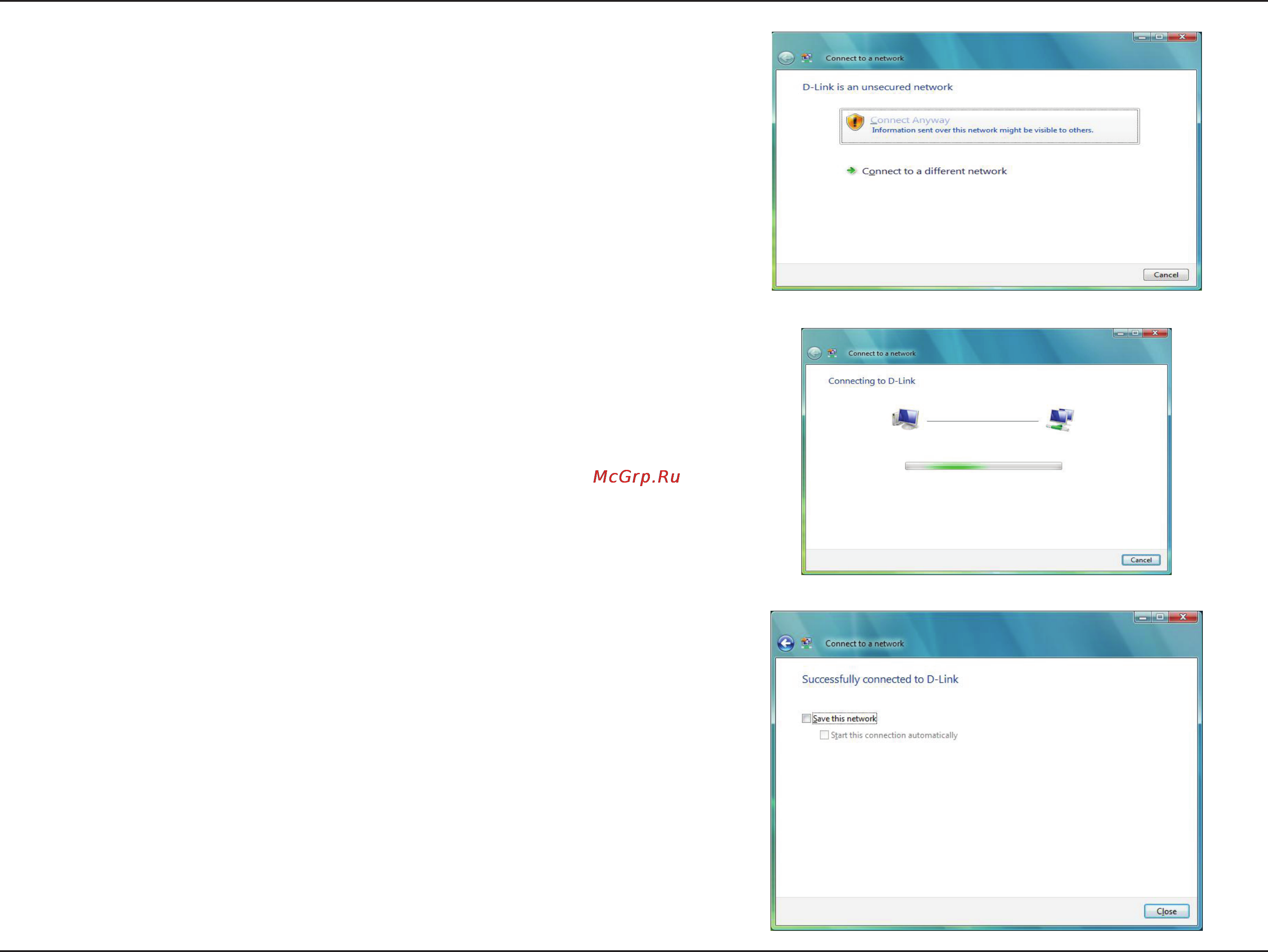

Click Connect Anyway to continue.

The utility will display the following window to indicate a connection

is being made.

The nal window indicates the establishment of a successful

connection.

The next two pages display the windows used to connect to either

a WEP or a WPA-PSK wireless network.
