60D-Link DAP-1155 User Manual

Section 4 - Security

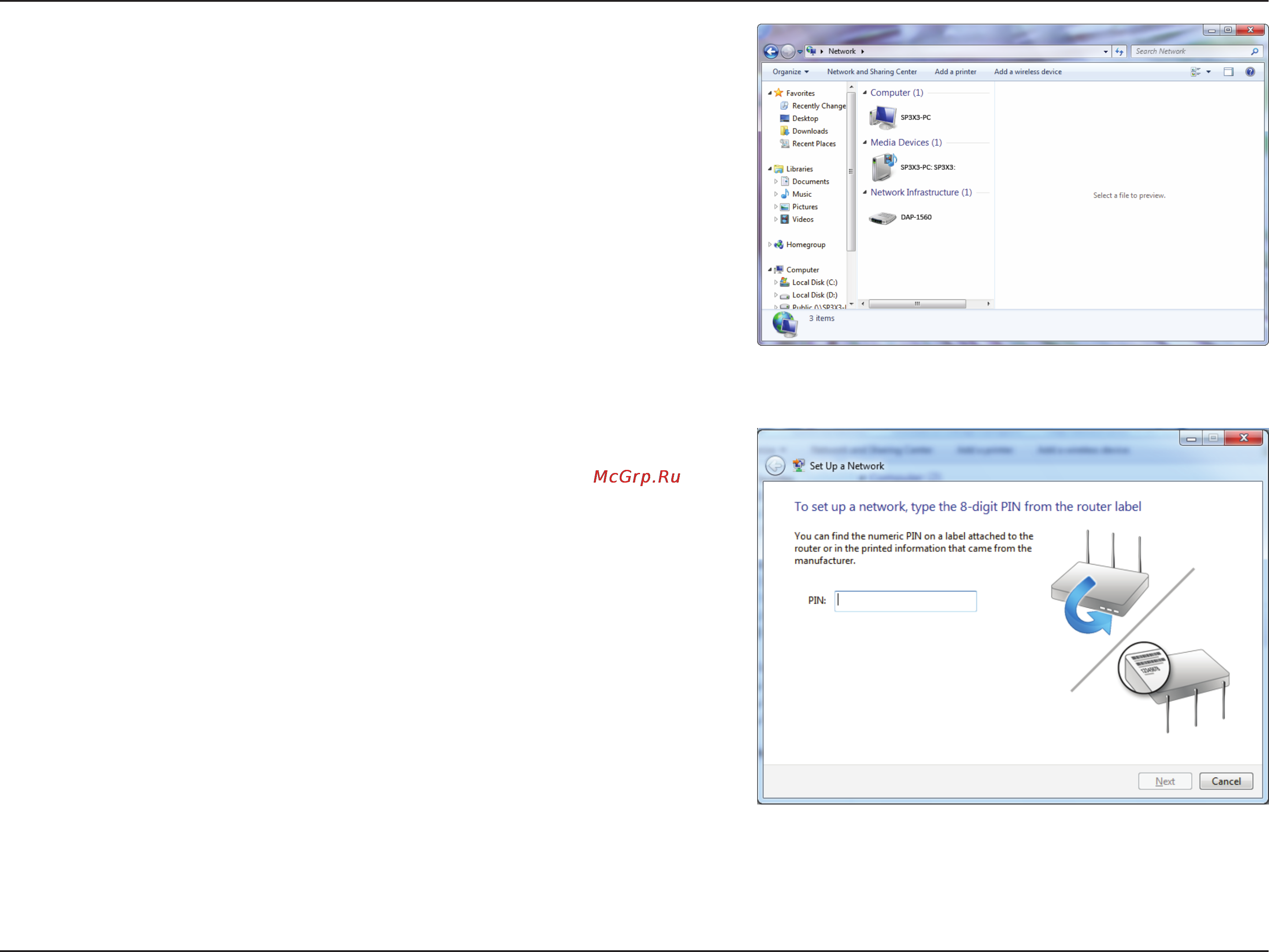

3. Double-click the DAP-1155.

4. Input the WPS PIN number (displayed in the WPS window on the

Router’s LCD screen or in the Setup > Wireless Setup menu in the

Router’s Web UI) and click Next.
