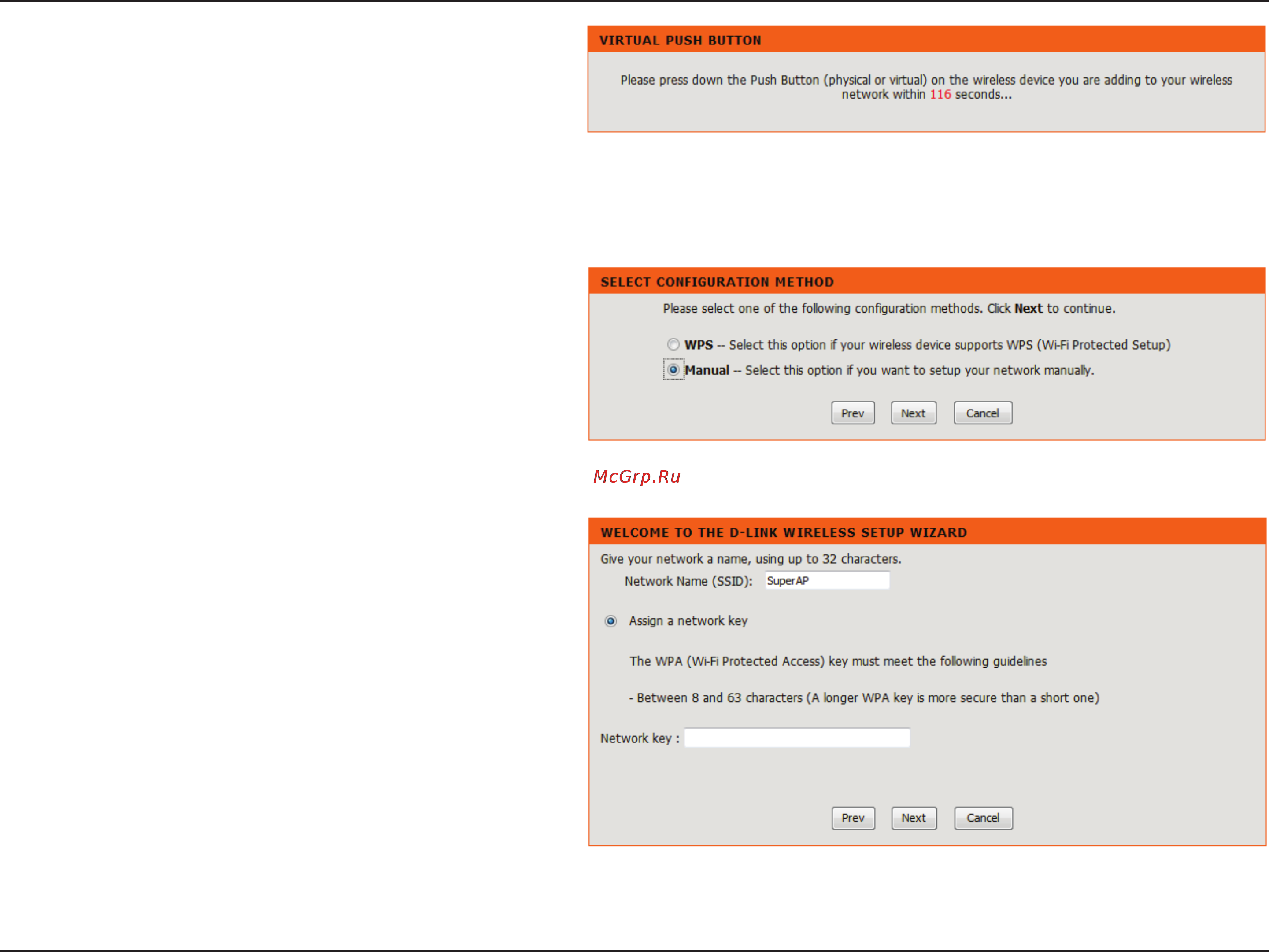

14D-Link DAP-1155 User Manual
Section 3 - Conguration
Select Manual as the conguration method to set up
your network manually. Click Next to continue.
Enter the wireless network name (SSID). The SSID can
be up to 32 characters and is case-sensitive.
Next, enter an encryption key (Network Key). The key can
be between 8 and 63 characters and is case-sensitive.
You must enter this key on any wireless device that will
connect to the DAP-1155.
Click Next to continue.
Press the WPS button on your wireless device you want
to connect with. You will have a 2 minute (120 seconds)
time limit.
