17D-Link DAP-1155 User Manual

Section 3 - Conguration

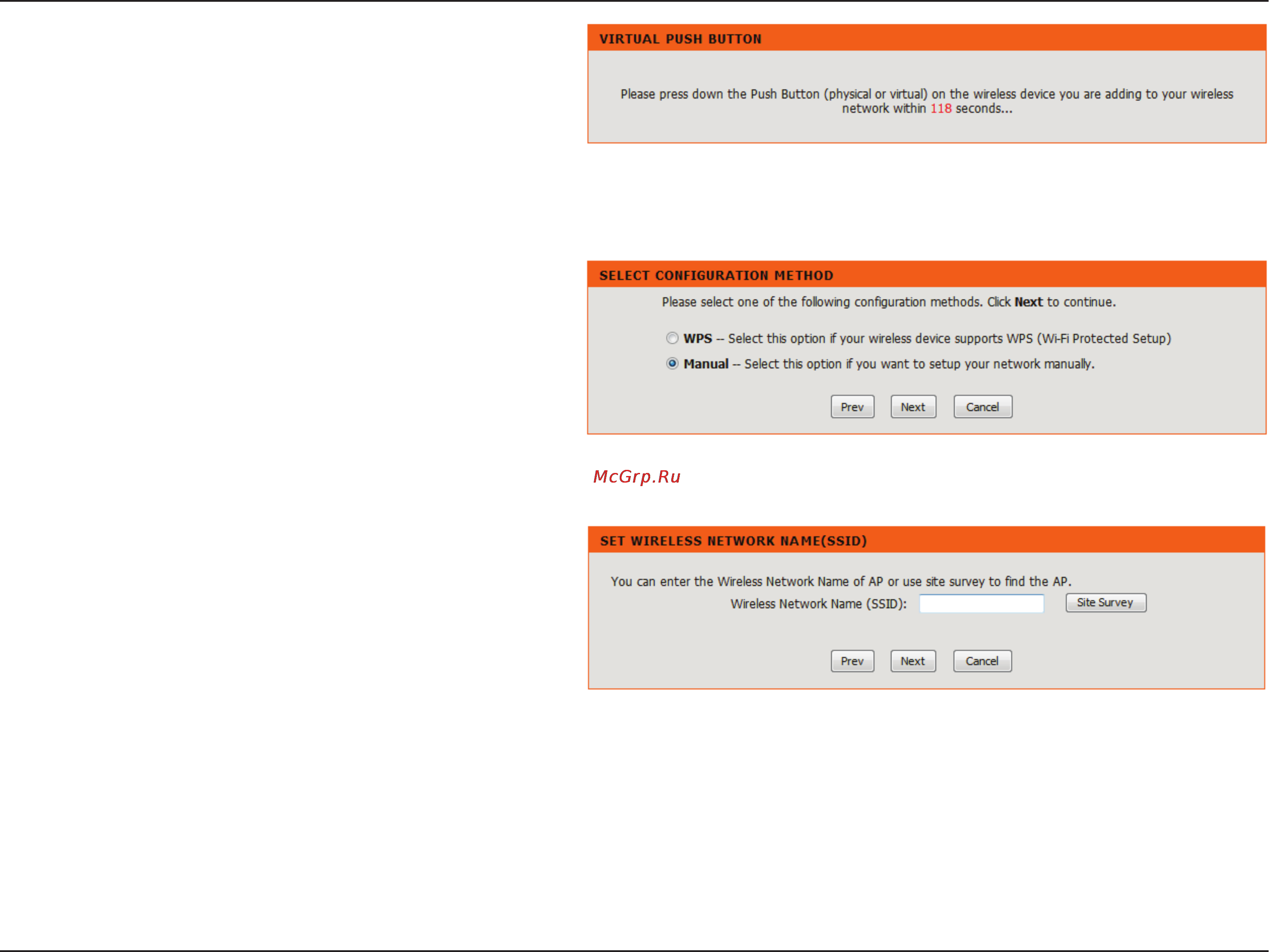

Select Manual as the conguration method to set up

your network manually. Click Next to continue.

Enter the wireless network name (SSID) of the network

you want to connect to. The SSID is case-sensitive. Click

Next to continue.

Press the WPS button on your wireless device you want

to connect with. You will have a 2 minute (120 seconds)

time limit.
