Section 3 - Conguration

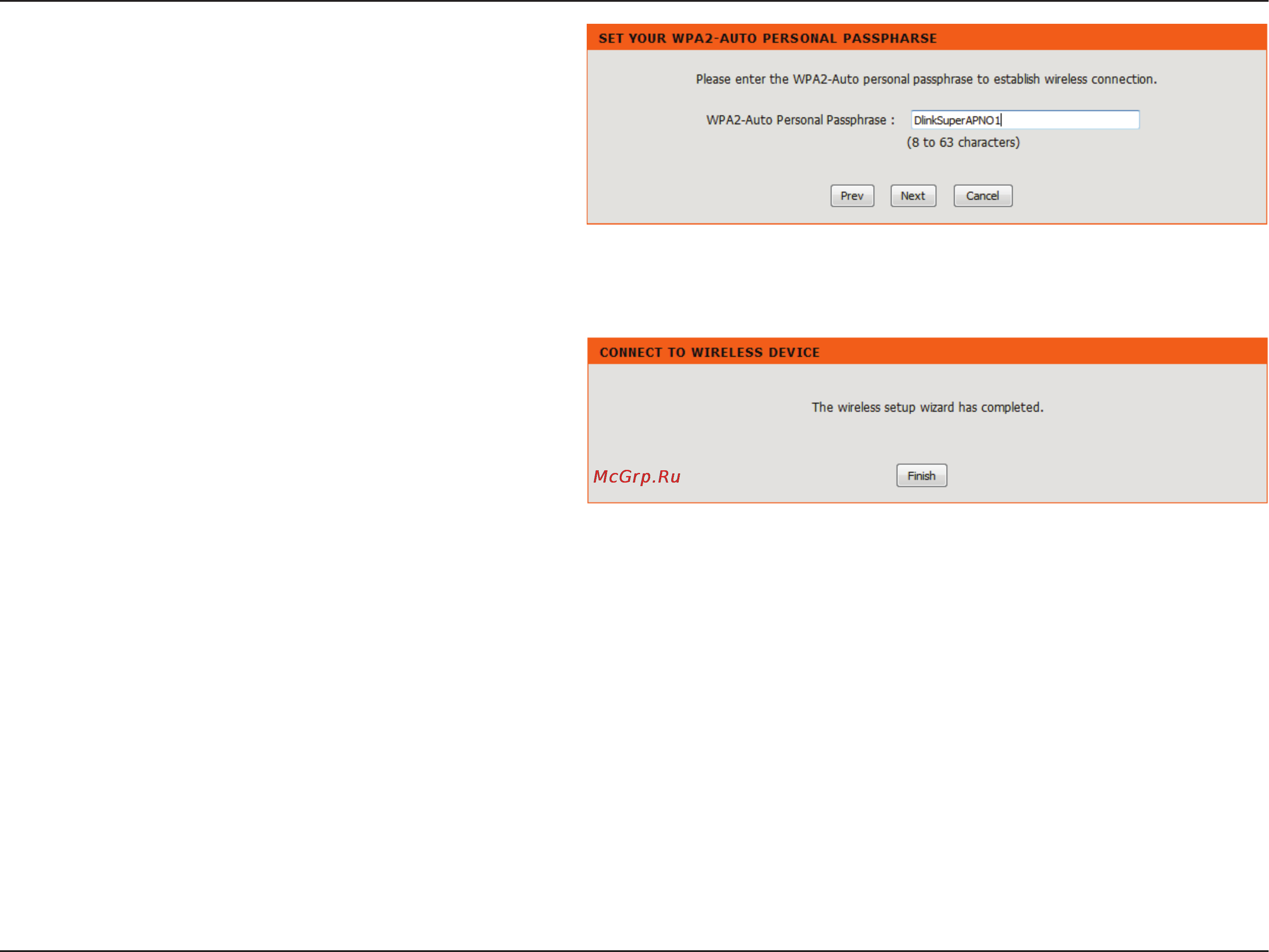

Click Finish to complete the Setup Wizard.

If you choose WPA or WPA2, enter the Passphrase and

click Next to complete the Setup Wizard.
