DIS-200G Series Industrial Gigabit Ethernet Smart Managed Switch

Web User Interface (Web UI)

By clicking the Exit button in the Smart Wizard, you will enter the Web-based Management interface.

Areas of the User Interface

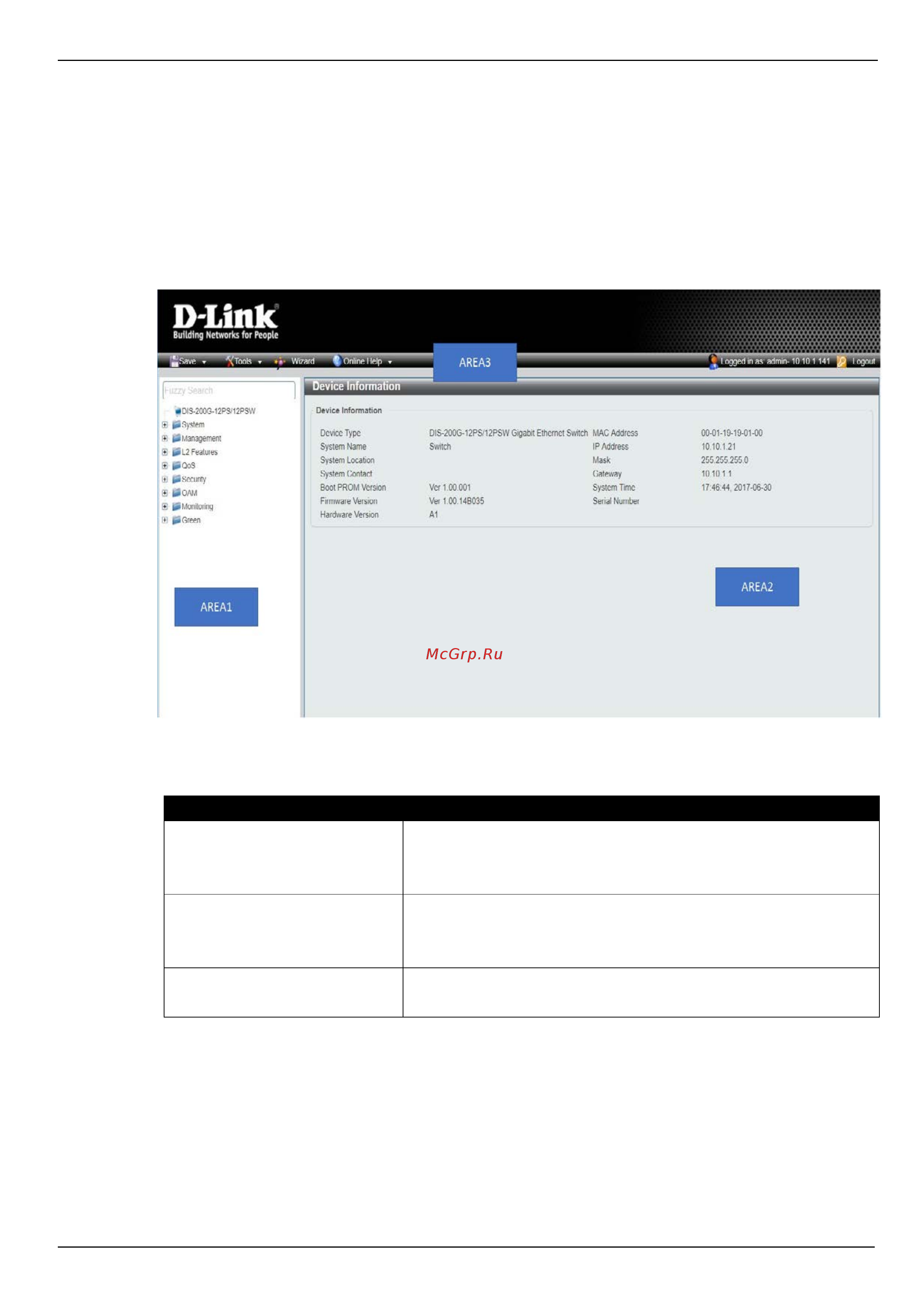

The figure below shows the user interface. Three distinct areas that divide the user interface, as

described in the table.

Parameter

Description

AREA 1

Select the folder or window to display. Open folders and click the

hyperlinked window buttons and subfolders contained within them

to display windows.

AREA 2

Presents Switch status based on user selection and the entry of

configuration data. In addition, hyperlink of Settings is offered to

enable quick Gateway configuration.

AREA 3 Presents a toolbar used to access function like Save, Tools, the

Wizard

and

Online

Help

Figure 2-6 Main Web UI window
