The fields that can be configured for Loopback Detection Global Settings are described below:

Parameter

Description

Loopback Detection

Select to enable or disable loopback detection. The default is

Disabled.

Time Interval

Enter the interval in seconds that the device will transmit all the

CTP (Configuration Test Protocol) packets to detect a loop-back

event.

The valid range is from 1 to 32767 seconds. The default setting is

10 seconds.

Recover Time

Enter the interval in seconds that the port will re-open if the port is

in loop state. The valid range is from 60 to 1000000 seconds. The

value 0 will block port forever until the switch next boot up. The

default setting is 60 seconds.

Loopback Detection Trap

Select to enable or disable the loopback detection trap state.

Click the Apply button to accept the changes made.

The fields that can be configured for Loopback Detection Port Settings are described below:

Parameter Description

From Port / To Port

Select the appropriate port range used for the configuration here.

State

Select this option to enable or disable the state of the port.

Click the Apply button to accept the changes made.

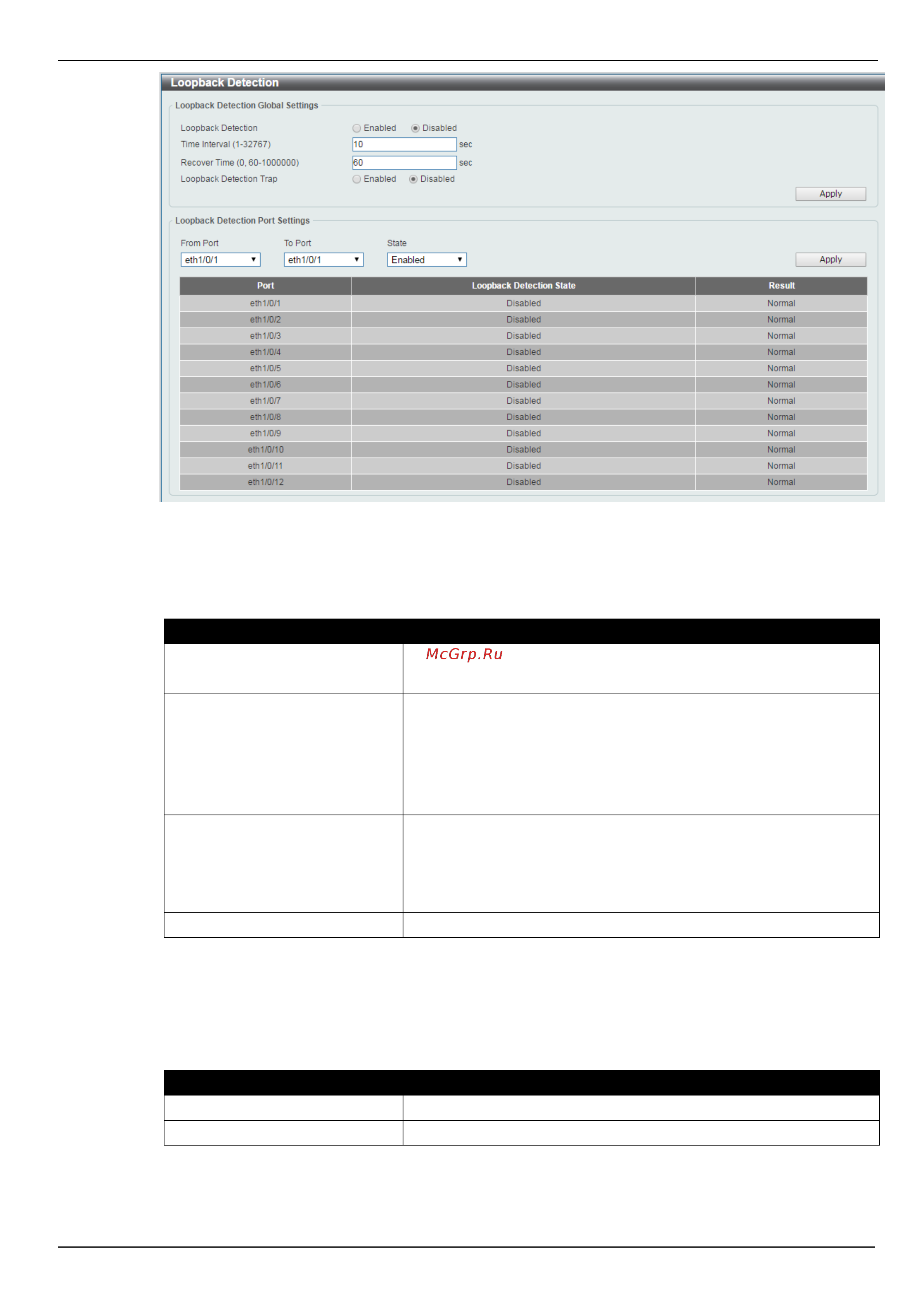

Figure 6-20 Loopback Detection window
