L2 Multicast Control

IGMP Snooping

Internet Group Management Protocol (IGMP) snooping allows the Switch to recognize IGMP queries and

reports sent between network stations or devices and an IGMP host.

IGMP Snooping Settings

In order to use IGMP Snooping it must first be enabled for the entire Switch under IGMP Global Settings

at the top of the window. You may then fine-tune the settings for each VLAN by clicking the corresponding

Edit button. When enabled for IGMP snooping, the Switch can open or close a port to a specific multicast

group member based on IGMP messages sent from the device to the IGMP host or vice versa. The

Switch monitors IGMP messages and discontinues forwarding multicast packets when there are no

longer hosts requesting that they continue.

To view the following window, click L2 Features > L2 Multicast Control > IGMP Snooping > IGMP

Snooping Settings, as shown below:

The field that can be configured for Global Settings is described below:

Parameter Description

Global State

Select this option to enable or disable IGMP snooping global state.

Click the Apply button to accept the changes made.

The fields that can be configured for VLAN Status Settings are described below:

Parameter Description

VID

Enter a VLAN ID from 1 to 4094, and select to enable or disable

IGMP snooping on the VLAN.

Click the Apply button to accept the changes made.

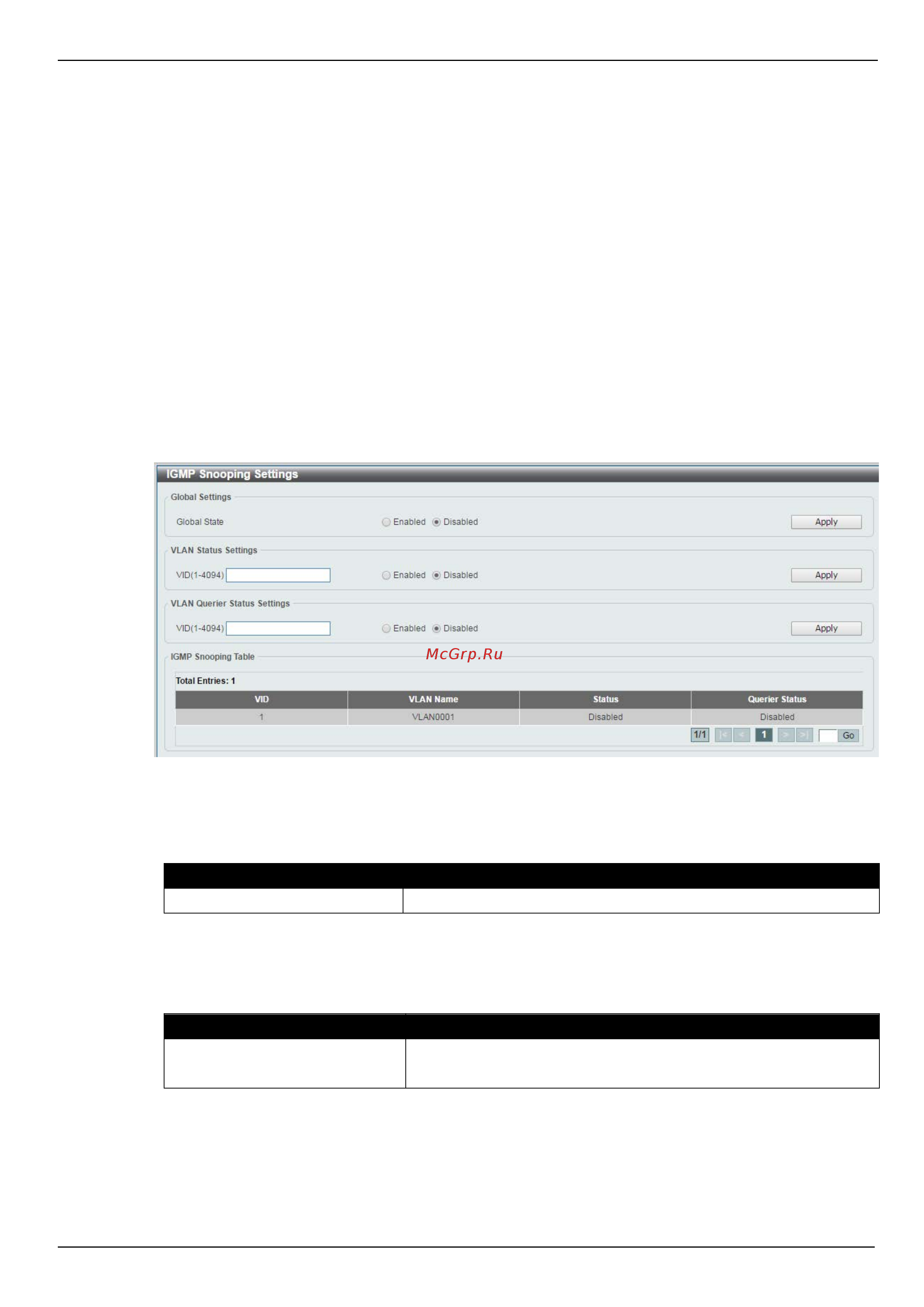

Figure 6-24 IGMP Snooping Settings window
