Voice VLAN OUI

This window is used to configure the user-defined voice traffic’s OUI. The OUI is used to identify the voice

traffic. There are a number of pre-defined OUIs. The user can further define the user-defined OUIs if

needed. The user-defined OUI cannot be the same as the pre-defined OUI.

To view the following window, click L2 Features > VLAN > Voice VLAN > Voice VLAN OUI, as show

below:

The fields that can be configured are described below:

Parameter Description

OUI Address

Enter the OUI MAC address.

Mask

Enter the OUI MAC address matching bitmask.

Description

Enter the description for the user-defined OUI with a maximum of

32 characters.

Click the Apply button to accept the changes made.

Click the Delete button to remove the specified entry.

Voice VLAN Device

This window is used to show voice devices that are connected to the ports. The start time is the time

when the device is detected on this port, the activate time is the latest time saw the device sending the

traffic.

To view the following window, click L2 Features > VLAN > Voice VLAN > Voice VLAN Device, as show

below:

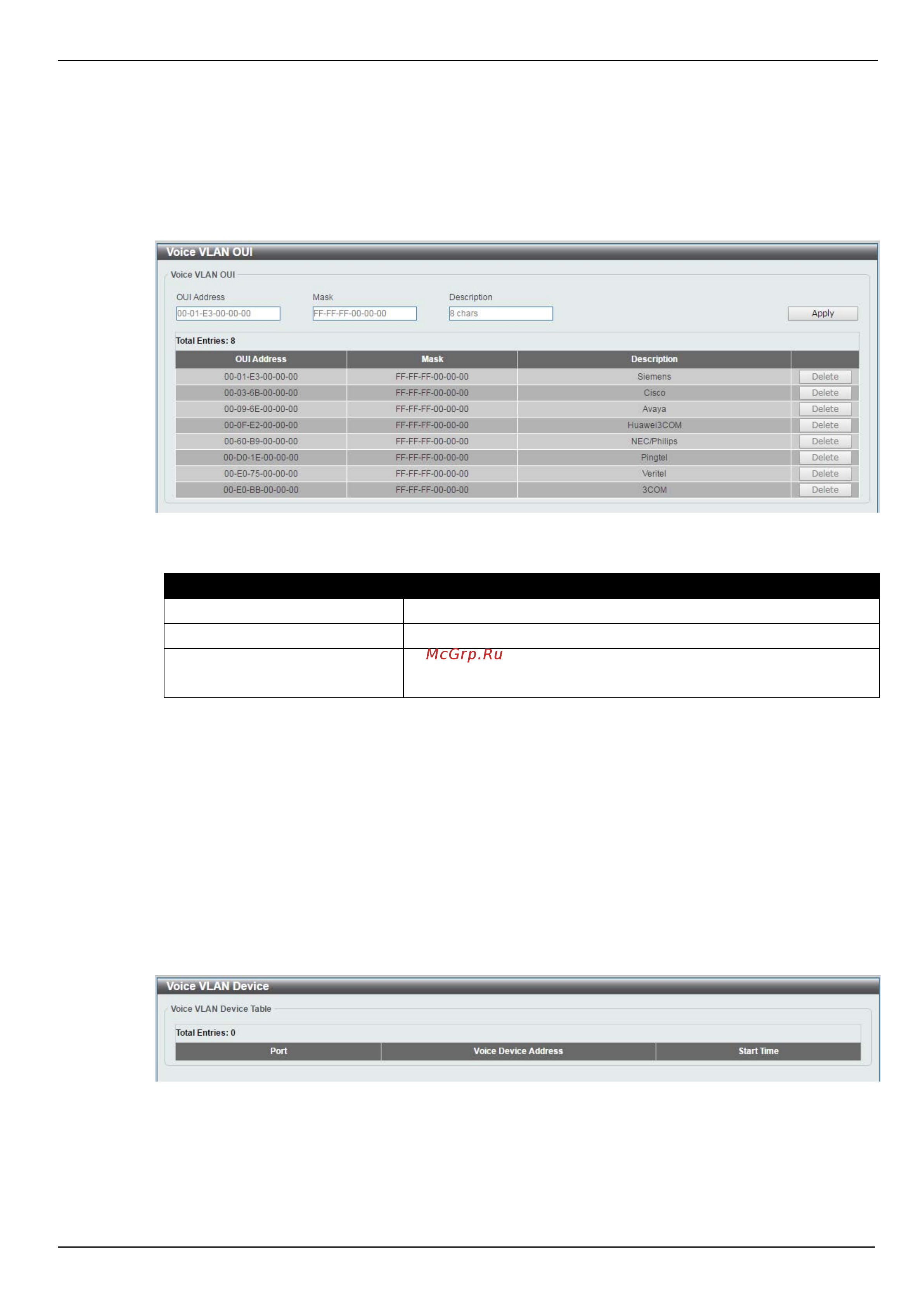

Figure 6-16 Voice VLAN OUI window

Figure 6-17 Voice VLAN Device window
