DIS-200G Series Industrial Gigabit Ethernet Smart Managed Switch
4
NOTE: The default username and password is admin.
This will open the user authentication window, as seen below.
Enter the User Name and Password in the corresponding fields and click Login. The default username
is admin and the default password is admin. This will open the Web-based user interface. The Switch’s
management features available in the web-based manager are explained below.

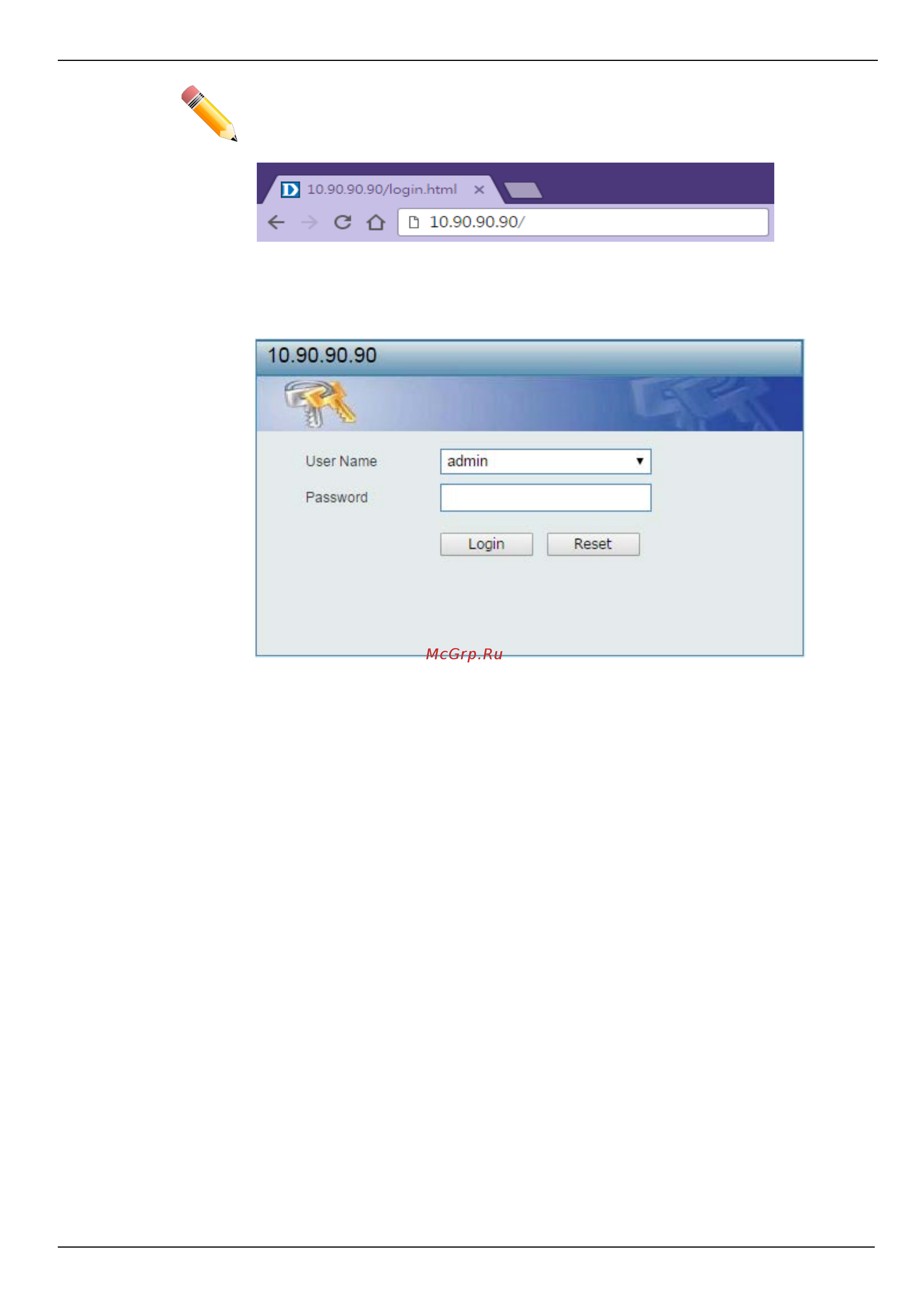

Figure 2-1 Displays entering the IP address in Internet Explorer
Figure 2-2 User Authentication window
