DIS-200G Series Industrial Gigabit Ethernet Smart Managed Switch

Mirror Settings

This window is used to view and configure the mirror feature’s settings. The Switch allows users to copy

frames transmitted and received on a port and redirect the copies to another port. Attach a monitoring

device to the mirroring port, such as a sniffer or an RMON probe, to view details about the packets

passing through the first port. This is useful for network monitoring and troubleshooting purposes.

To view the following window, click Monitoring > Mirror Settings, as shown below:

The fields that can be configured for Mirror Settings are described below:

Parameter

Description

Destination

Select the destination switch’s port number.

Source From the From Port drop-down menu, select the starting port

number and from the To Port drop-down menu, select the ending

port number. Lastly select the Frame Type option from the third

drop-down menu. Options to choose from as the Frame Type are

Both, RX, and TX. When selecting Both, traffic in both the

incoming and outgoing directions will be mirrored. When selecting

RX, traffic in only the incoming direction will be mirrored. When

selecting

, traffic in only the outgoing direction will be mirrored.

Click the Apply button to add the newly configured mirror entry based on the information entered.

Click the Delete button to delete an existing mirror entry based on the information entered.

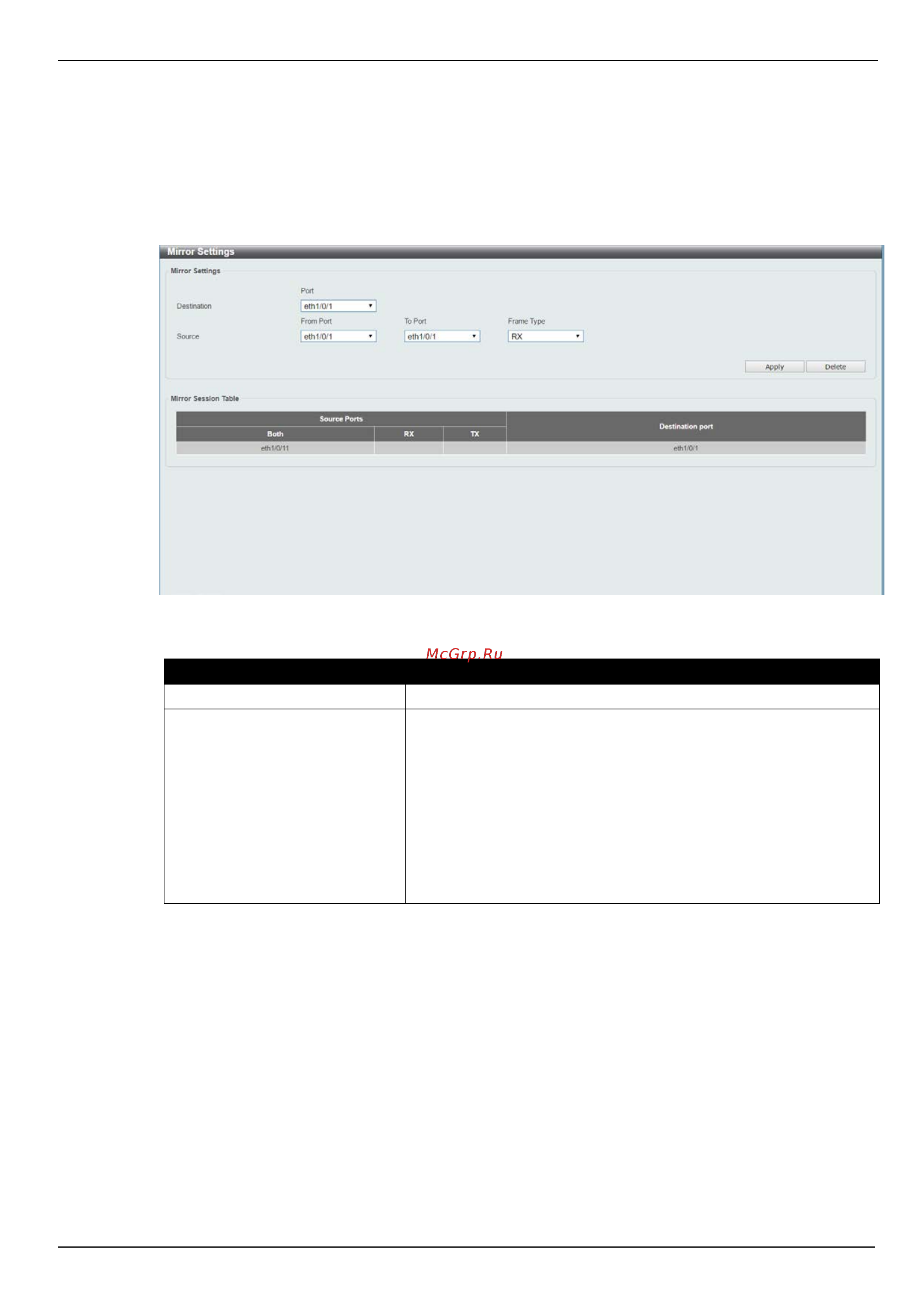

Figure 10-2 Mirror Settings window
