Ping

Ping is a small program that sends ICMP Echo packets to the IP address you specify. The destination

node then responds to or “echoes” the packets sent from the Switch. This is very useful to verify

connectivity between the Switch and other nodes on the network.

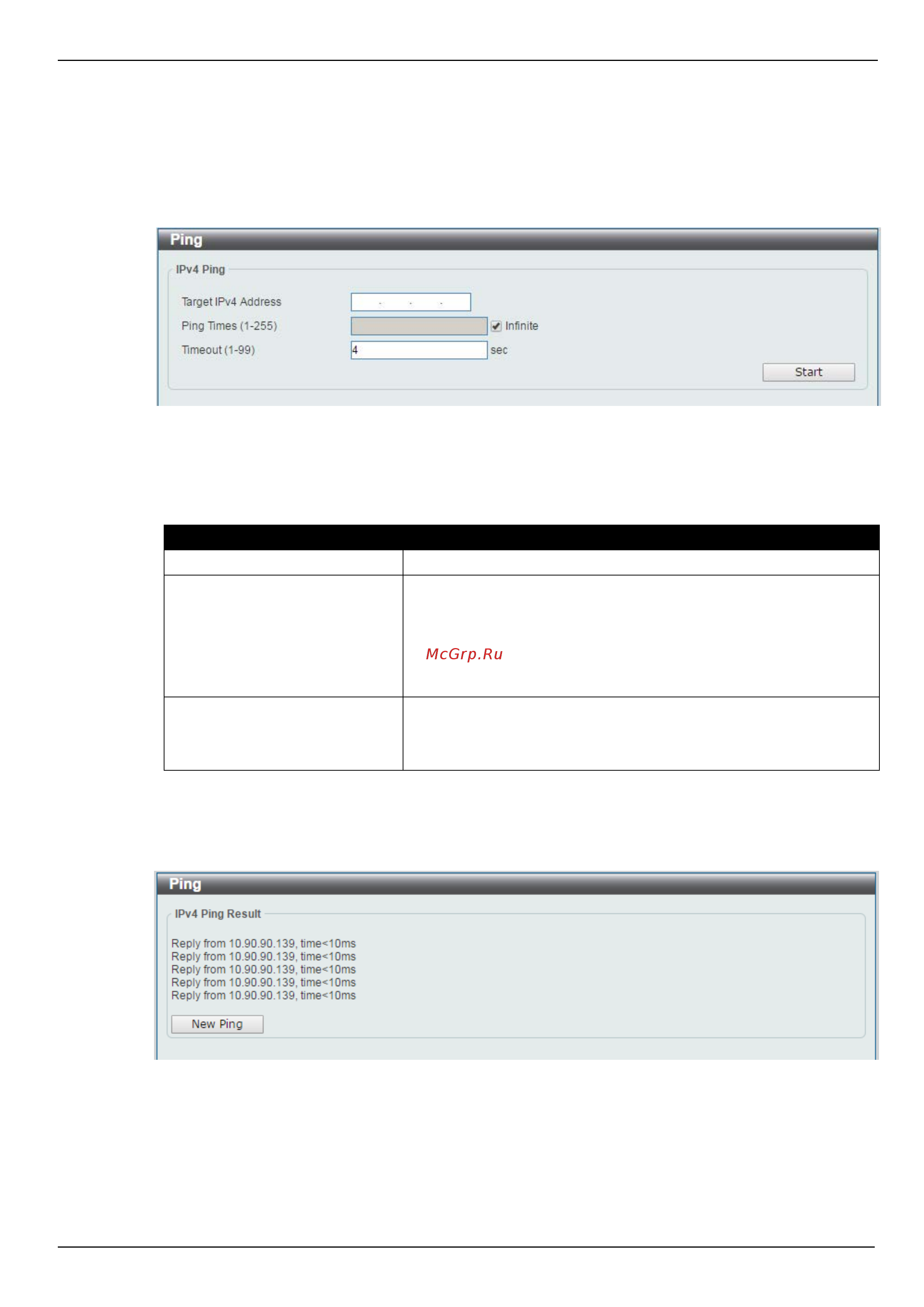

To view the following window, click Tools > Ping, as shown below:

The fields that can be configured for IPv4 Ping are described below:

Parameter Description

Target IPv4 Address

Select and enter an IP address to be pinged.

Ping Times

Enter the number of times desired to attempt to Ping the IPv4

address configured in this window. Users may enter a number of

times between 1 and 255. Tick the Infinite check box to keep

sending ICMP Echo packets to the specified IP address until the

program is stopped.

After clicking the Start button in IPv4 Ping section, the following IPv4 Ping Result section will appear:

Click the New Ping button to halt the Ping Test and return to the IPv4 Ping section.
