Printing from the Print Job Screen
95
3

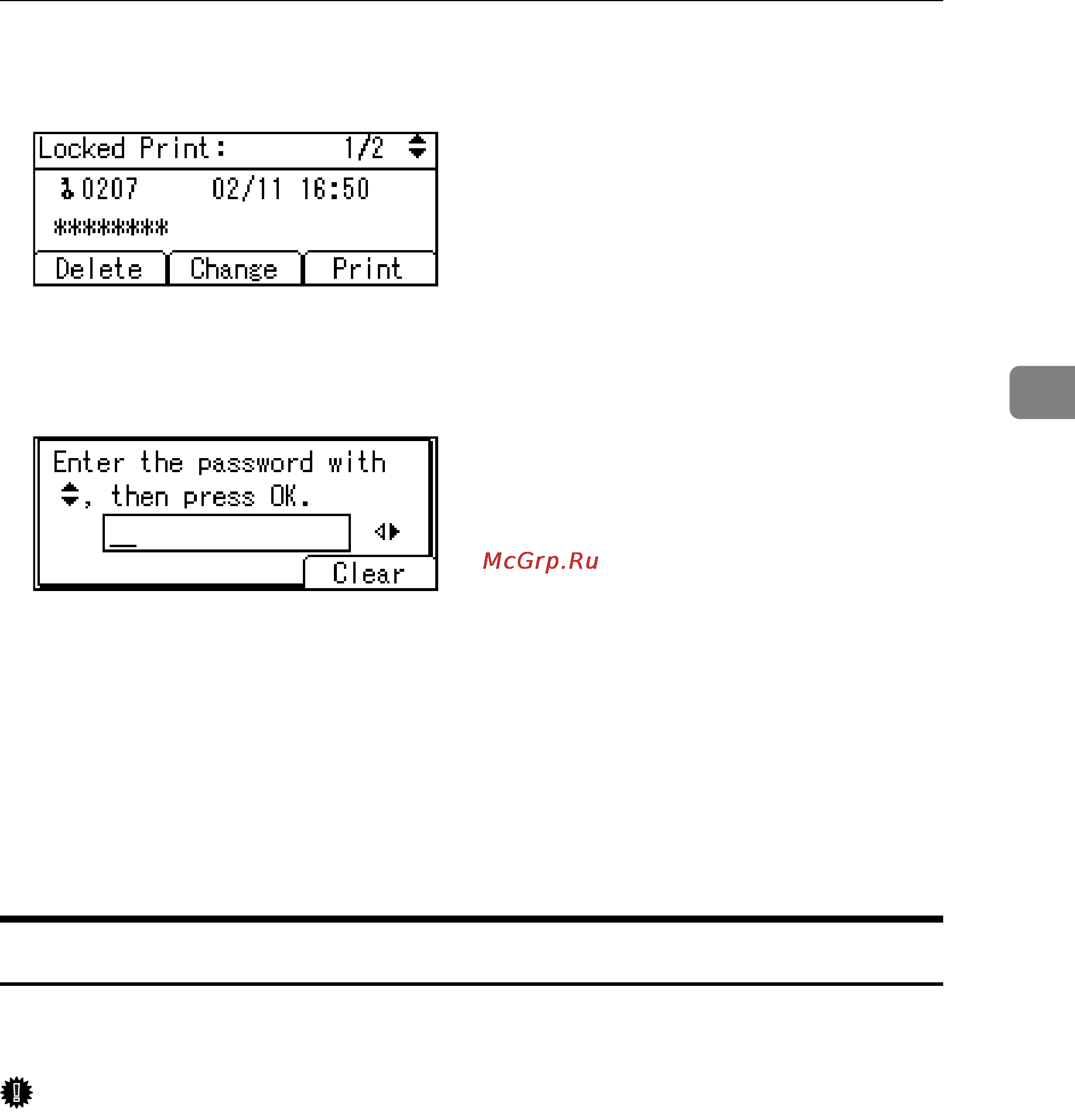

C Select the file you want to delete using the {U} or {T}key, and then press
[Delete].
The password screen appears.
D Enter the password using the {U}, {T}, {W} or {V} key, and then press the
{OK} key.
The delete confirmation screen appears.
A confirmation screen will appear if the password is not entered correctly.
Press [Clear] to enter the password again.
If you forget your password, ask your network administrator for help.
E Press [Delete].
The selected file is deleted.
If you do not want to delete the file, press [Cancel].
Hold Print
Use this function to temporarily hold a file in the printer, and print it from the
computer or the printer's control panel later.
Important
❒ To use this function, the optional hard disk must be installed on the printer.
❒ A Hold Print file cannot be stored if:
• the total number of Sample Print, Locked Print, Hold Print, and Stored
Print files in the printer is over 100. (The maximum number varies depend-
ing on the volume of data in files.)
• the file contains over 1,000 pages.
• sent or stored files in the printer contain over 9,000 pages in total.
