Other Print Operations
100
3
B Click [Details...], and then enter a User ID in the [User ID:] box.
You can also set a password. The same password must be entered when print-
ing or deleting.
You can set a file name. The file name you set will be displayed on the print-
er's Job List screen.
C Start printing from the application’s [Print] dialog box.
The Stored Print job is sent to the printer and stored.

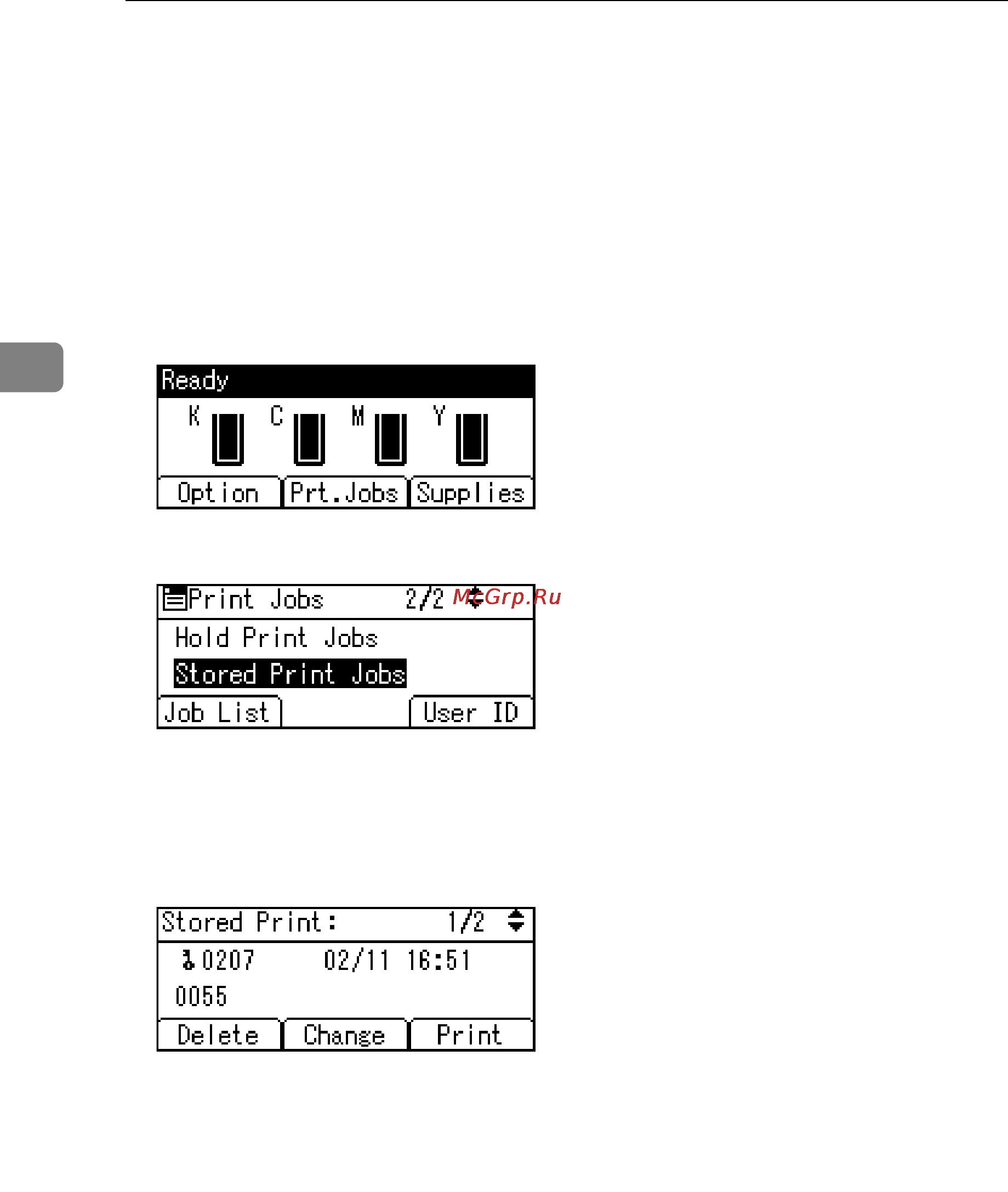

D On the printer's control panel, press [Prt.Jobs].
E Select [Stored Print Jobs] using the {U} or {T} key, and then press [Job List].
A list of Stored Print files stored in the printer appears.
You can print files also by pressing [User ID].
F Select the file you want to print using the {U} or {T} key, and then press
[Print].
The confirmation screen appears.
If you set a password in the printer driver, a password confirmation screen
appears. Enter the password.
G Press [Print].
The Stored Print file is printed.
Press [Cancel] to cancel printing.
