Other Print Operations
102
3

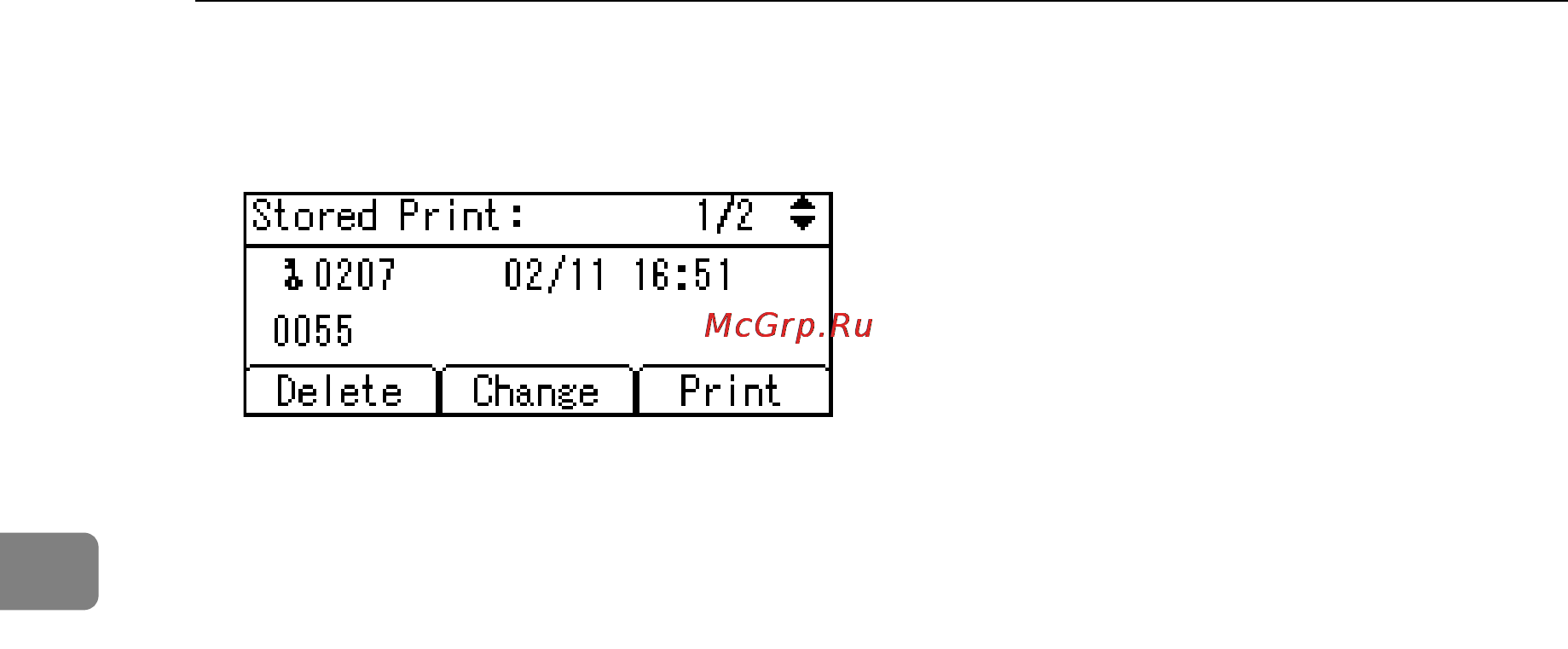

C Select the file you want to delete using the {U} or {T} key, and then press
[Delete].
The delete confirmation screen will appear.
If you set the password in the printer driver, enter the password to delete.
If you forget your password, ask your network administrator for help.
D Press [Delete] to delete the file.
The selected file is deleted.
If you do not want to delete the file, press [Cancel].
