Checking the Error Log
111
3

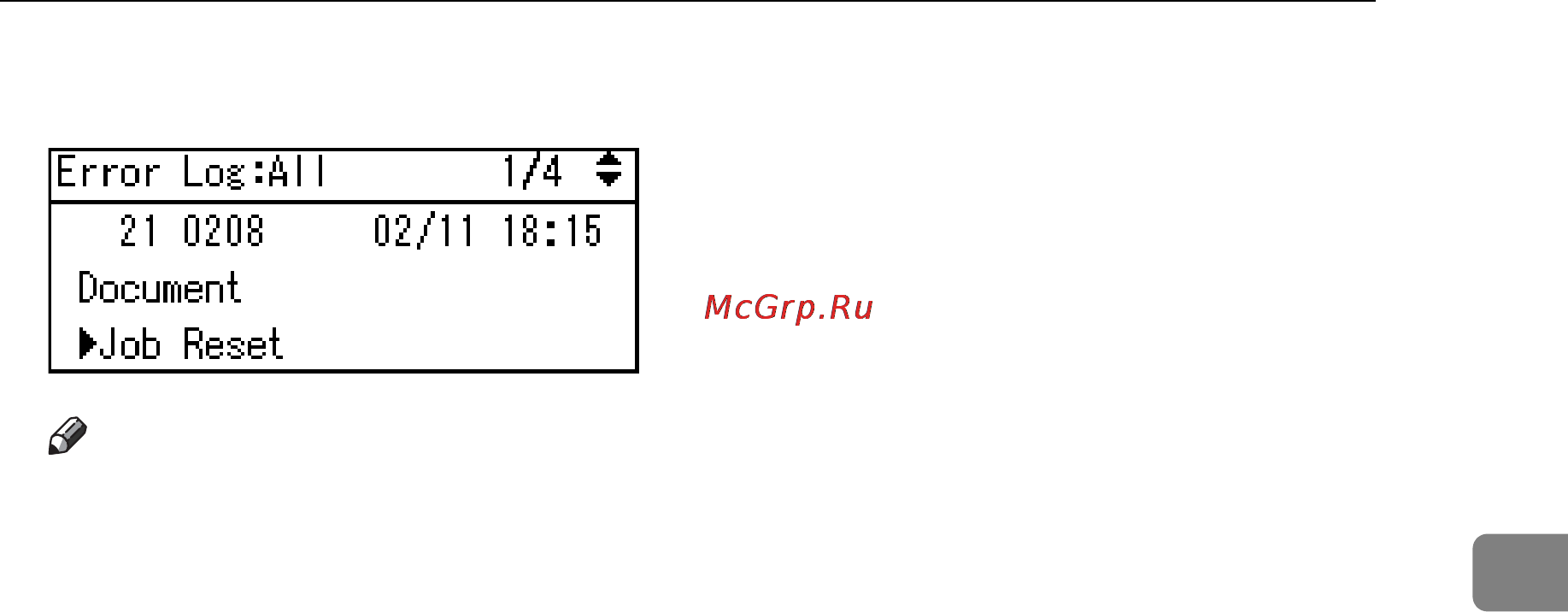

D Select the error log you want to check using the {U} or {T} key.
Note
❒ Press the {Menu} key until the initial screen appears after checking the log.
❒ To print files that appear in the error log, resend them after stored files
have been printed or deleted.
