The Digital Controller ESIE07-04
2–20 Part 2 – Functional Description
3
1
2
4
5

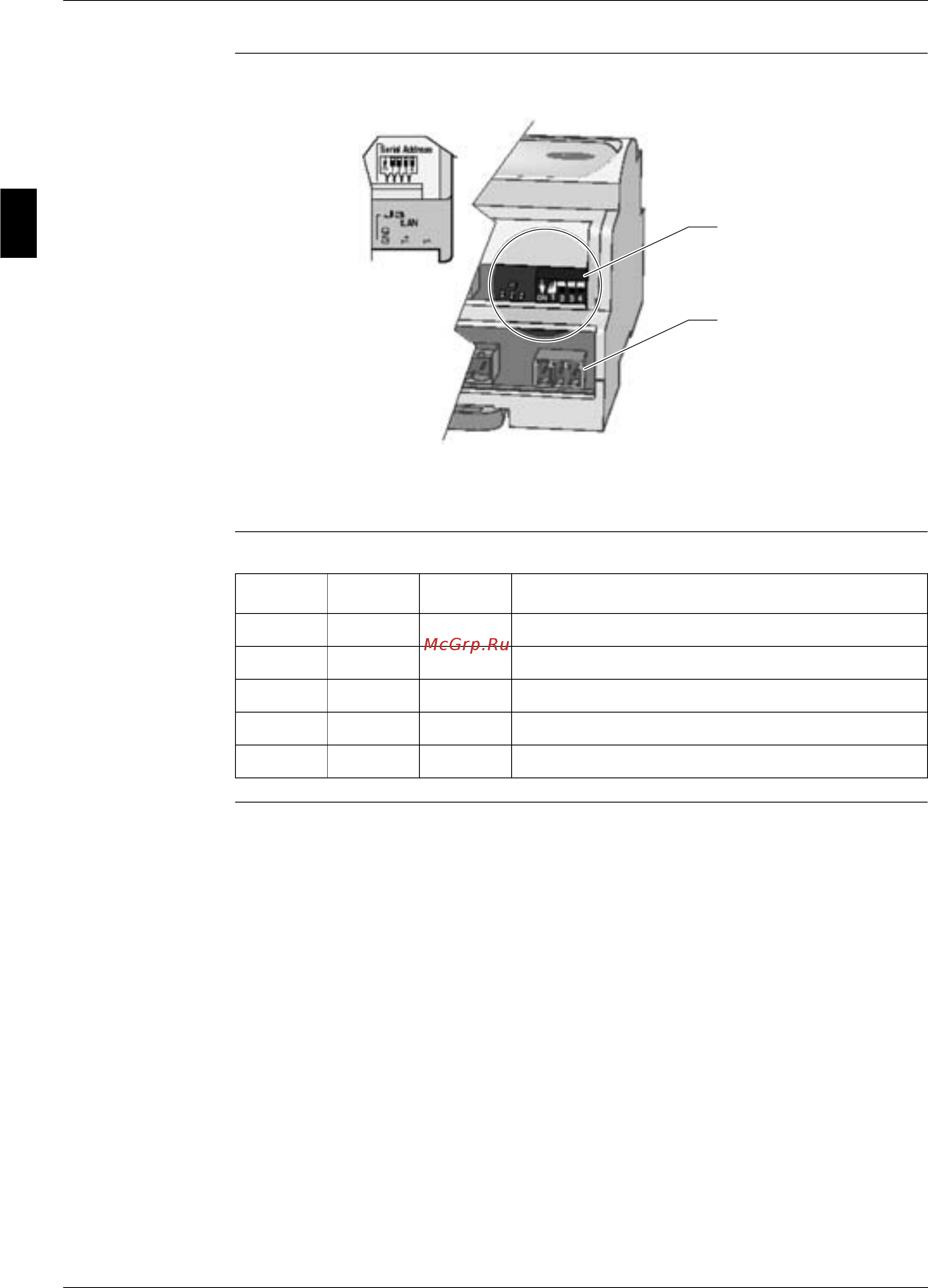

Expansion board
lan setup details
As shown in the figure above, expansion boards have only four microswitches to set the net address.
For more details on microswitches configuration refer to”2.3.6–Addressing of plan/RS485”.
Status LEDs Three status LEDs are present, their status represents different statuses of the expansion board.
Battery charge
r
Battery charge
r
Example address 1
RED YELLOW GREEN Meaning
- - ON Active CAREL/tLAN supervisor protocol
- ON - Probe error
ON - - “I/O mis-match” error caused by the inhibition matrix
flashing - - Lack of communication
- - - Waiting for the system startup by the master (max. 30 s)
